6
As a first step, proceed with the following drawings:
A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be
fitted.
A horizontal line A at 1270 – 1560 mm above the cooker top.
A horizontal line B at a minimum 887 (840 optional) mm above the cooker top.
A horizontal line C at a minimum 717 mm above the cooker top.
Mark Points:
Mark a point (1) on the horizontal line A, 40 mm to the vertical reference line.
Repeat this operation on the other side and on the vertical reference line, checking that the two marks are
leveled.
Mark a point (2) on the horizontal line B, 80 (135 optional) mm to the right of vertical reference line.
Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
Mark a point (3) on the horizontal line C, 112.5 mm to the right of vertical reference line. Repeat this
operation on the other side, checking that the two marks are leveled.
Fix the brackets:
Drill holes at the marked points (1), (2), (3) with a ɸ10 mm drill bit.
Insert the Wall Plugs 11 into the holes (1), (2), (3).
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) .
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50).
Hook the hood body
Open the panel.
Remove the aluminum filter using the handles provided
Hook the hood body to the bracket 20.

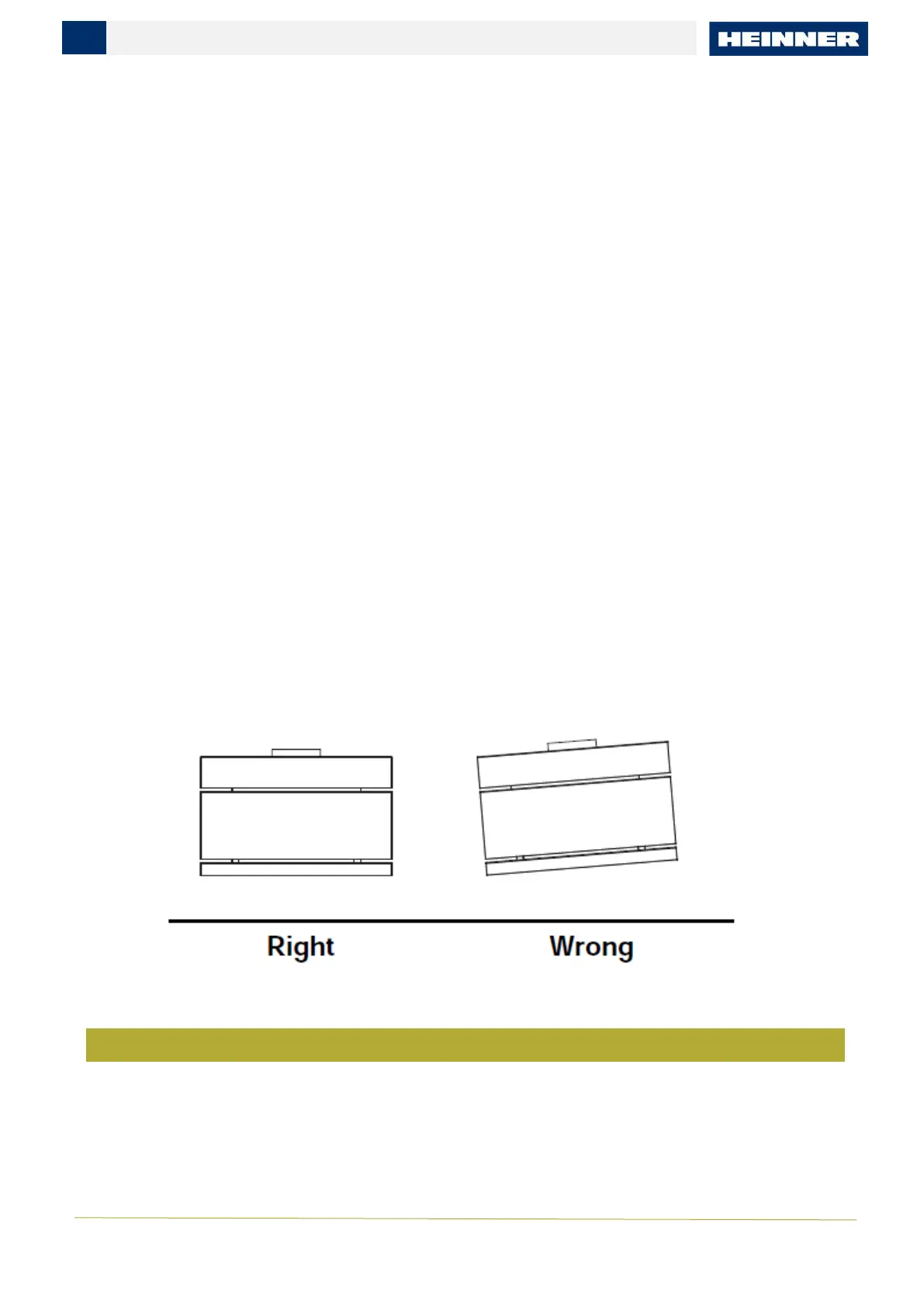

Level the hood body itself.
From the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).
Fit the filter into the hood
Close the panel
CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing should be select one
of them.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house.
