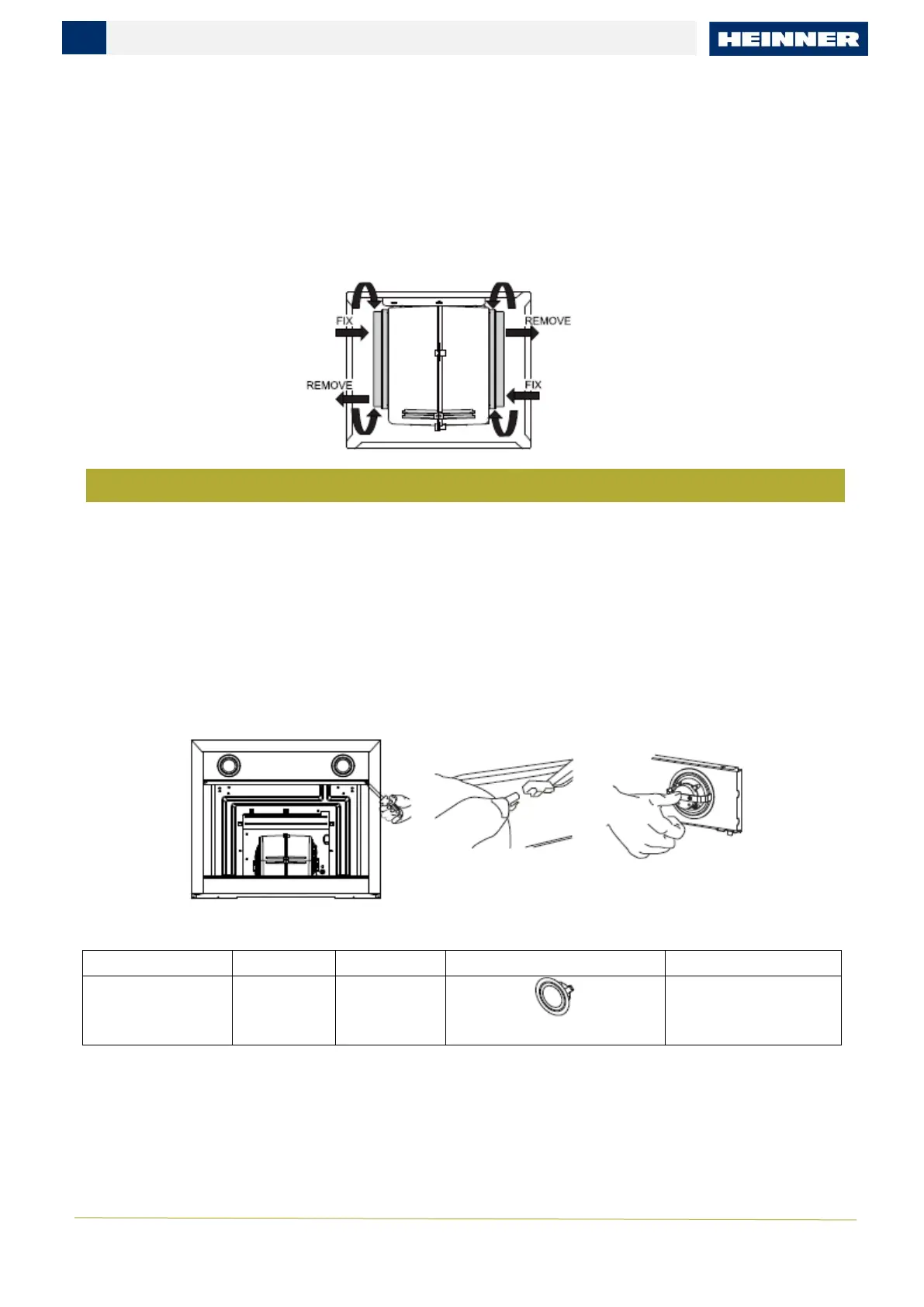

REPLACING THE ACTIVATED CHARCOAL FILTER
These filters are not washable and cannot be regenerated and must be replaced approximately every 4
months of operation, or more frequently with heavy usage.
• Remove the metal grease filters
• Remove the saturated activated charcoal filter.
• Fit the new filters.
• Replace the metal grease filters
Light replacement
Replacing the light modules
• Cannot replaced the light bulbs, the entire light module must be replaced.
• When changing the light modules, the contacts are live.
• Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker
in the fuse box.
• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed
screwdriver will be needed to remove the screws).
• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp (commercially available LED lamp).
Max power
Voltage
ILCOS D code
Separate ballasted
LED modules
1.5 W
DC 12 V
Round/Diameter: 70 mm
DSR-1.5-S-70
• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.
