2X NPT TO COMPRESSION
ADAPTER (SUPPLIED)
2X COMPRESSION TEE WITH
MALE NPT (SUPPLIED)
3/8" TUBING (SUPPLIED)
FOR MODEL 3612F, CUT
TUBING AS REQUIRED TO
INSTALL FILTER IN THIS LINE.
INSERTS, FERRULES, AND
COMPRESSION NUTS
(SUPPLIED)
DRAIN PIPING
NOT SHOWN
FOR CLARITY
FILTER MOUNT
AREA
2X 1/4-20 TAMPER
RESISTANT BUTTON
HEAD SCREWS
(SUPPLIED)
FILTER
MOUNTING
BRACKET
(SUPPLIED)
2X 10-32 FLAT
PAN HEAD
FILTER HANGER
SCREWS
(SUPPLIED)
NOTE: FILTER
BRACKET MOUNTS
TO INSIDE OF THESE
RAILS ON THE LEFT
SIDE. USE THREADED
HOLES SHOWN.
FILTER HANGER
ANGLE BRACKET
(SUPPLIED)
TO BUTTON
VALVE
TO BUTTON
VALVE
TO BUTTON
VALVE
FROM SOURCE

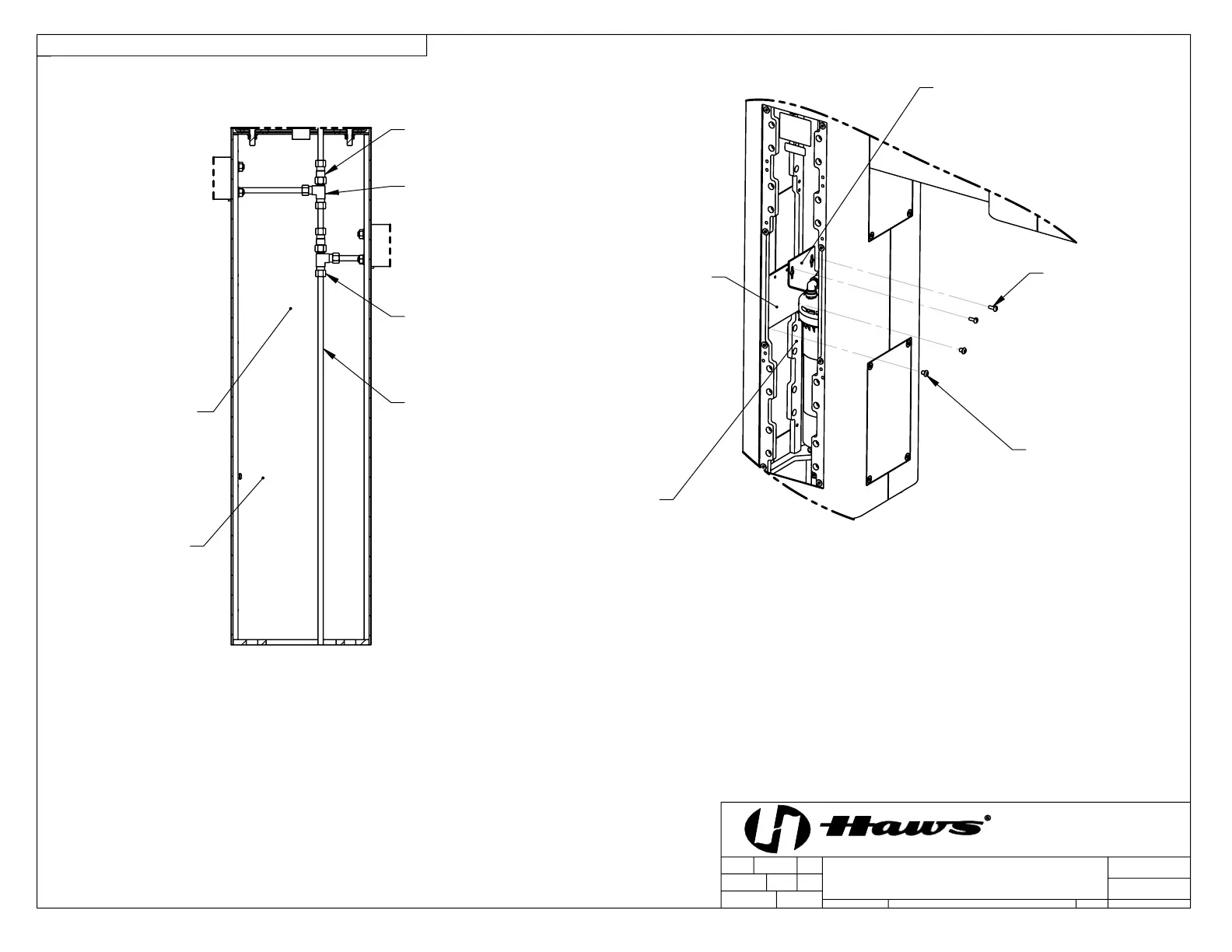

3612 SUPPLY PLUMBING
STEP 6
COMPLETE WATER SUPPLY PLUMBING AS SHOWN. OPEN
SUPPLY VALVE(S) AND TEST. REPLACE ARM BOTTOM
PLATES AND PEDESTAL ACCESS PLATES.
INSTALLATION INSTRUCTIONS
3612F FILTER BRACKET MOUNTING
STEP 7
INSTALL FILTER MOUNTING BRACKET (SUPPLIED WITH MODEL 6477)
TO LEFT INSIDE VERTICAL RAILS USING 2 BUTTON HEAD SCREWS
AS INDICATED ABOVE. INSTALL FILTER HEAD ON HANGER ANGLE WITH
4 SUPPLIED SELF-TAPPING SCREWS. INSTALL FILTER HANGER ANGLE
BRACKET IN RIGHTMOST HOLES AS SHOWN. SEE MODEL 6477 OPERATION
AND MAINTENANCE MANUAL FOR ADDITIONAL DETAILS.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
DP
ECN:
SHEET 5 OF 6
0580001180.D
3612 & 3612F
PAGE 10 OF 11
