CWBPM-0525
9
English
INSTALLATION
NOTE: The countertop must be level to ensure proper draining
of the refrigerated well.
5. Make sure a grounded electrical receptacle of the correct
voltage, size, and plug configuration is within 6′ (1829 mm)
of the mounting location for the control panel. See the
SPECIFICATIONS section for details.
WARNING
FIRE HAZARD: All electrical receptacles must be at least
12″(305mm)abovethecabinetfloor.
Open Cabinet Preparation
In most cases, open cabinet installation will provide enough
ventilation around the condensing unit to avoid the need for
intake air ducting or additional ventilation openings. Make sure
the ambient air temperature in the cabinet does not rise above
86°F (30°C). If it does, intake air ducting may be necesssary.
Open cabinet installation does not require
intake ducting or exhaust venting.

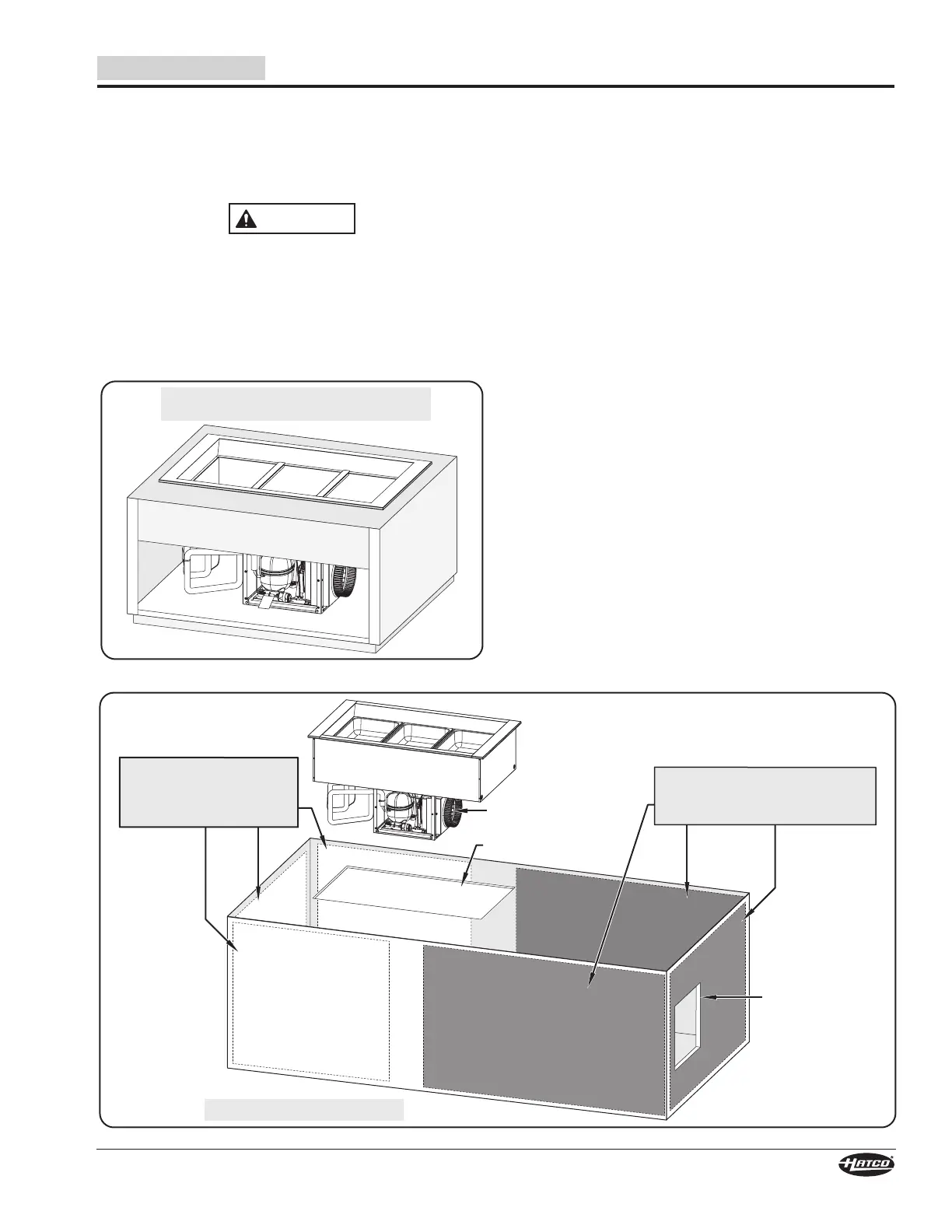

Open Cabinet Installation (CWBP-3 Model shown)
Closed Cabinet Preparation
Survey the installation site. Take into account the need for
louvered or grill-style openings in the cabinetry to provide
proper ventilation for the unit as well as access to the control
panel. One of these ventilation openings must be in front of
the condensing coils with the other on the opposite side of the
condensing coils. If multiple refrigerated wells are installed in
the same counter, each unit must intake cool air and expel hot
air.
NOTE: The condensing unit cannot be moved or rotated under
the well. Damage to the refrigerant tubing will occur.
1. Cut an opening in the cabinet for the intake vent.
• The cutout must be 12″ x 12″ (31 x 31 cm).
• The opening for the intake must be no further than 5’
(1524 mm) from the condenser coils.
2. Cut an opening in the cabinet for the exhaust vent.
• The opening for the exhaust must be cut no more than
1″ (25 mm) from cabinet floor.
• The opening should be a minimum of 12″ x 12″
(31 x 31 cm) or 144 square inches (961 square cm).
• The opening for the exhaust must be located on the
opposite side of the condensing unit.
Countertop Cutout
Cut out the intake opening in one
of the gray highlighted areas when
installing well and condensing unit
in this orientation.
12″ x 12″
cutout for
intake air.
Countertop removed for clarity.
Condenser Coils
(inside duct collar)
Cut out exhaust opening in
one of the white highlighted
areas when installing well
and condensing unit in this
orientation.
Closed Cabinet Installation (CWBP-3 Model shown)
