English _27
! BULLET CAMERA
Installation
[Directly installing on wall/ceiling]

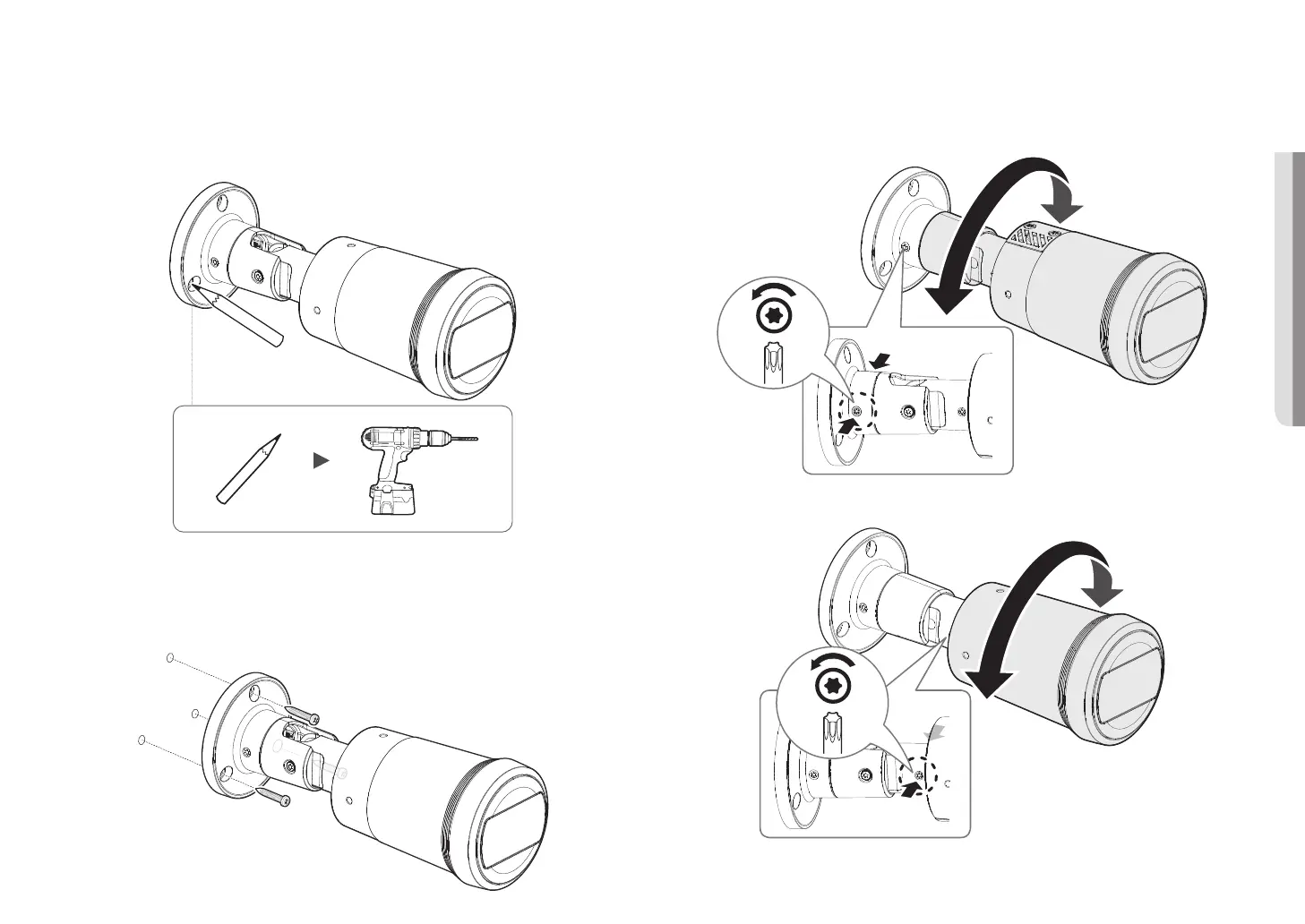

1. Place the camera on the desired location considering the direction to be monitored, mark the locations for
the screw holes and cable holes, and then drill the holes.
2. Connect the necessary cables from among the network, audio, and alarm cables to the ports of the
camera.
3. Fix the Mount plate using appropriate screws.
`
It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation
bracket.
4. Loosen the fixing screws of each control part to adjust the monitoring direction of the camera.
`
Note that it is not necessary to loosen the screws completely.
`
Connect a monitoring device to the USB port and then monitor and adjust it.
<Pan>
2x
T20
<Lens Rotation>
2x
T20
