CONNECTION

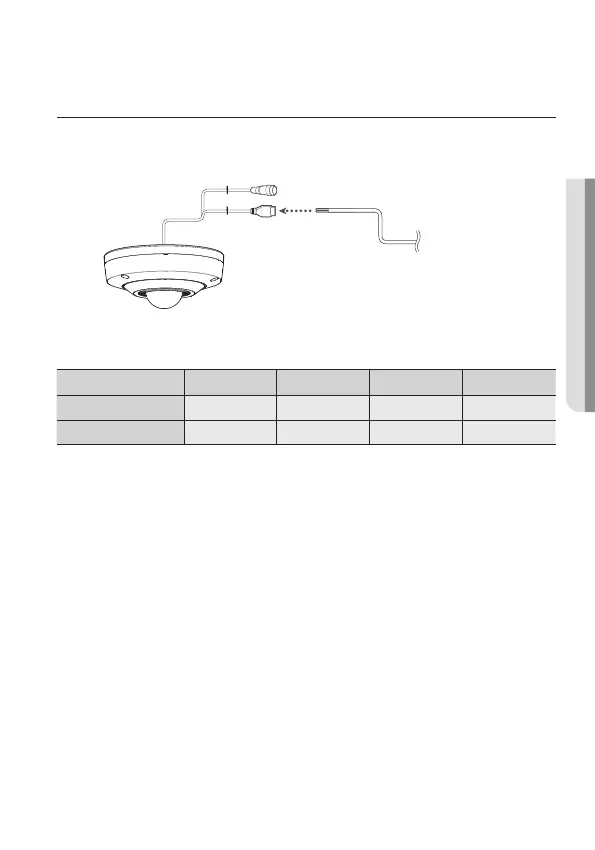

CONNECTING TO POWER
You can connect power as shown in the following figure.
Power Input Terminal
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size (AWG) #24 (0.22 mm
2
) #22 (0.33 mm
2
) #20 (0.52 mm
2
) #18 (0.83 mm
2
)
Resistance value(Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
y As shown in the table above, voltage decreases as the wire gets longer.
Therefore use of an excessively long adaptor output line for connection to the camera
may aect the performance of the camera.
Standard voltage for camera operation : DC 12 V ± 10%, AC 24 V ± 10%
There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
M
` Be sure to connect power only after all the installation is complete.
