18_ connection
connection

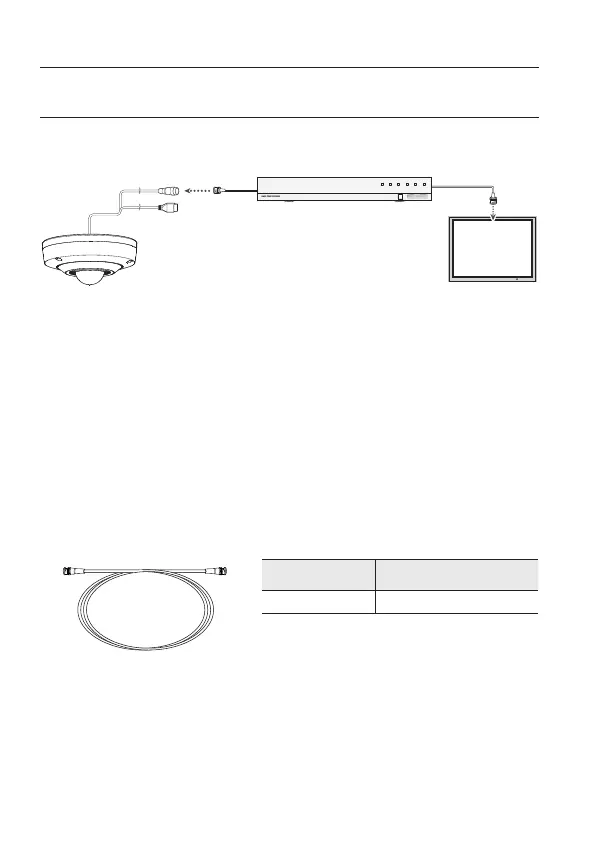

CONNECTING TO MONITOR
Connect the Video OUT port on the rear panel of the camera to a ENCODER.
REC HDD ALARM
NETWORK BACKUP
POWER
ENCODER
Monitor
y
As the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
y
Only connect the cable when the power is turned o.
M
` This product supports 2 video output formats of AHD and CVBS.
The default is AHD. Select the video output appropriate for your ENCODER.
- Video Cable
The camera's video output port is connected to the ENCODER with a BNC coaxial
cable, shown below.
Distance
Recommended Cable
Specification
300 m 5C2V
M
` It is recommended that pure copper coax cable is used and not copper coated steel, as
this will cause issues with the communication over the coaxial cable.
` To ensure picture quality, only single-channel video output connector can be used
while camera connected to other video equipments.
