Handleiding

Assembly

Page EN-11

Assembly

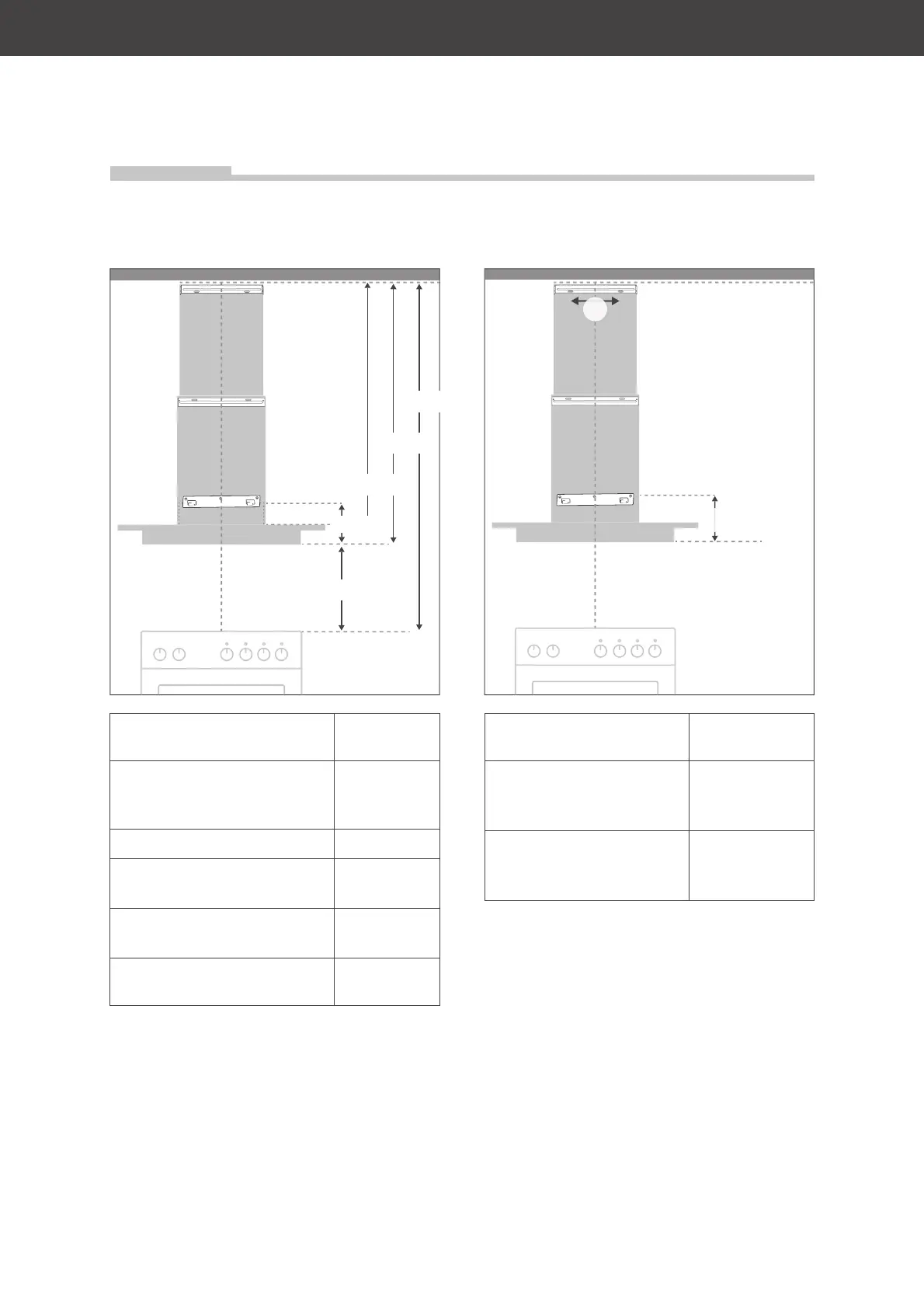

Space requirements

(a)

(e)

(b)

(c)

(d)

Important units

Dimensions

in cm

(a) Minimum distance between

stove top and lower edge of

exhaust hood (1):

65 - 75

(b) Height of exhaust hood (1): 20

(c)

Height of the entire flue

screen,

(2)

and

(3)

44(50) - 78

(d) Height of the entire appli-

ance, (1), (2) and (3):

48(54) - 82

(e) Space required above the

stovetop:

113(119) - 157

The images and tables show the minimum

distances that must be complied with and

how much leeway you have while installing.

The figures in brackets refer to circulation air

operation; the ventilation slits must be kept

clear.

Attachment dimensions

(f)

(g)

Calculating drill holes:

Dimensions

in cm

(f) Height of the 3 fixing

screws (12) for wall

bracket (8):

20.5

(g) Distance of the

fixing

screws

(11)

for the wall

bracket

(6)

Requirement for safe

assembly

You have read chapter „For your safety“ on

page EN-4 and understand all the safety no-

tices.
