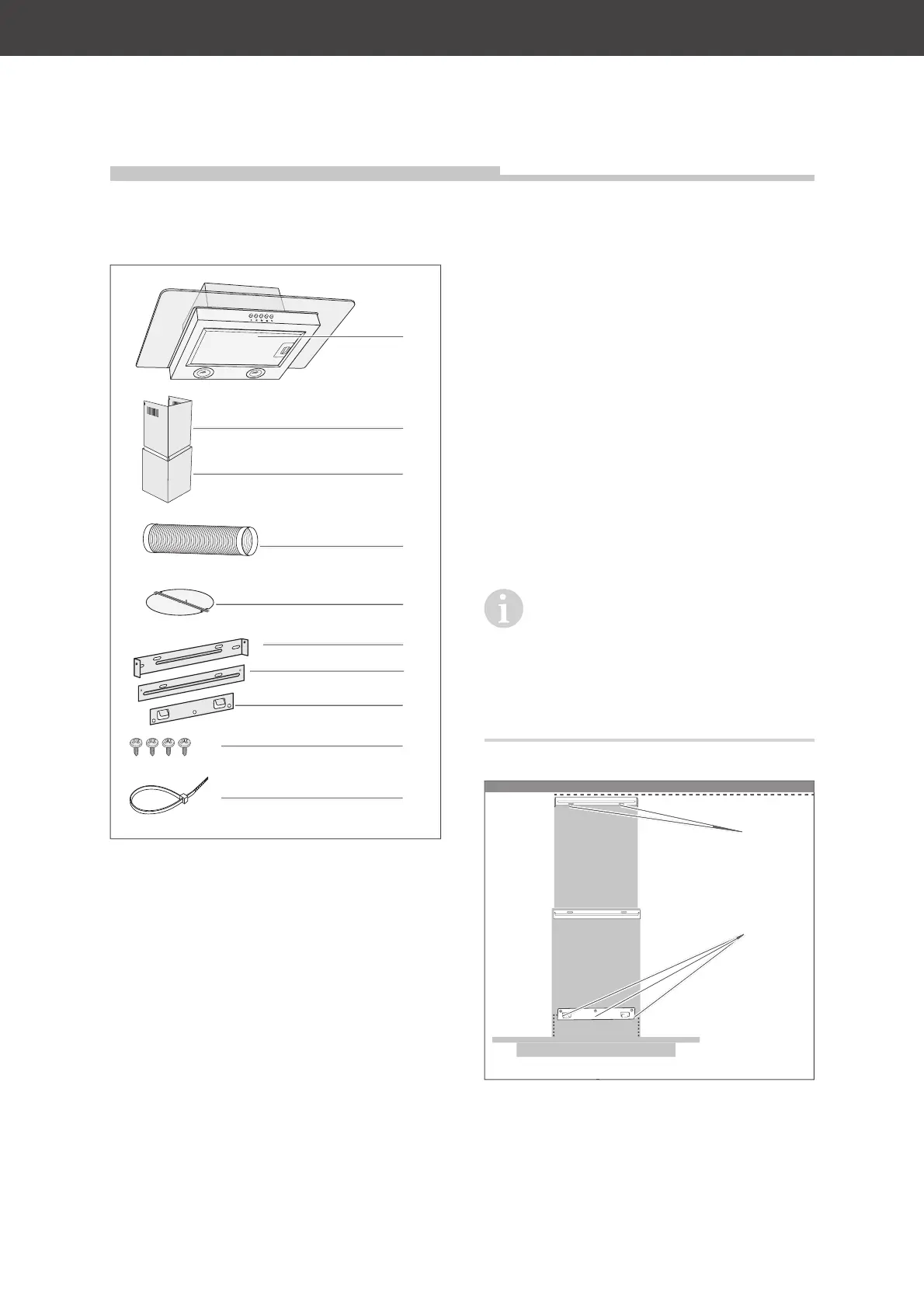

Materials required for assemblyPage EN-10

Materials required for assembly

(1) Exhaust hood

(2) upper part of the flue screen

(3) lower part of the flue screen

(4) Exhaust air operation: Exhaust air hose

(5) Exhaust air operation: Check valve

(6) Wall bracket for upper flue screen

(7) Retaining plate for lower flue screen

(8) Wall bracket for exhaust hood

(9) 4 plate screws 4.0 × 8 mm

(10) Cable ties

Parts list Tools and aids

You will need:

– Screwdriver

– Drill with stone bit, correctly sized for the

screws (11) and (12).

– Measuring tape / ruler

– Level

– Pencil

– Stable stepladder

– Work gloves

We also recommend having a second person

with you to help.

Screws

The screws and dowels required to

mount the appliance on a wall are not

included in the package contents, as their

type and dimensions will vary depending on

the characteristics of the wall.

Please have a specialist advise you as to

which ones you need.

(11)

(12)

In total, you will need

– 2 round-head screws (11) to attach

the wall bracket (6) for the upper flue

screen (2)

– 3 countersunk screws (12) to hang the ex-

haust hood, maximum ø 6 mm

(1)

(3)

(2)

(4)

(5)

(6)

(7)

(8)

(9)

(10)
