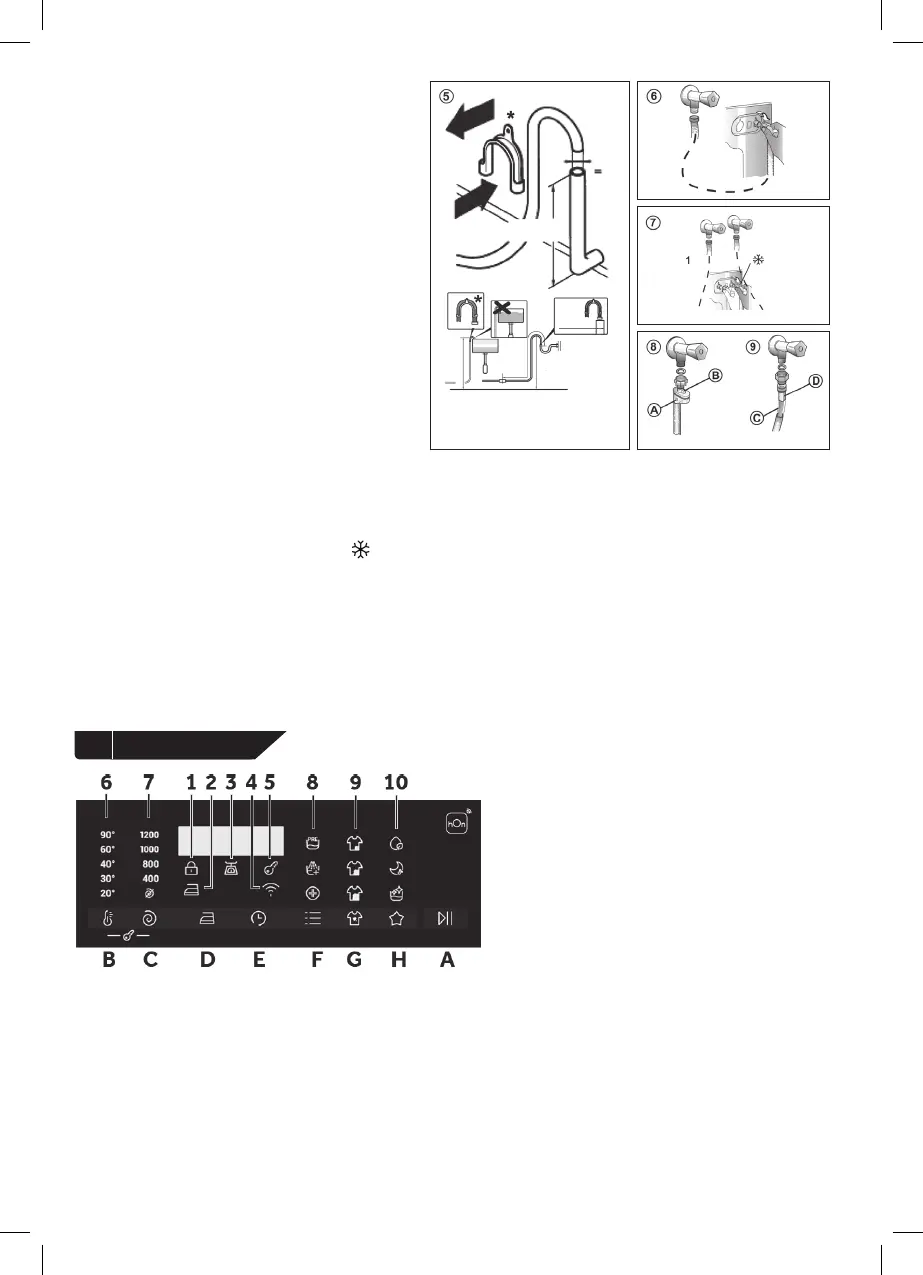

1.4 - Hydraulic connections
•
The washing machine should be connected to
the water mains via the new tube supplied with
the appliance (inside the drum). Do not use the
old tube for this purpose.
•
Connect one end of the water inlet pipe with the
elbow bend to the electrovalve (top rear part of
the machine) and the other end to a tap or a
plumbed-in 3/4” gas threaded connection
•
Place the washing machine close to the wall,
ensuring that there are no bends or kinks
anywhere in the tube.
•
Hook the outlet pipe to the edge of the sink
or preferably to a xed drainage outlet of a
diameter greater than that of the outlet pipe
and at a height of min. 50 cm and a maximum
of 75 cm from the oor (g. 5).
•
If necessary, use the curved* accessory to
attach and support the outlet pipe more
securely.
•
Connect the water hose to the water supply tap (g. 6) only using the hose supplied with the appliance (do not
reuse old hose-sets)
• Some models may include one or more of the following features:
•
HOT&COLD (g. 7): water mains connection settings with hot and cold water for higher energy savings. Connect
the grey tube to the cold water faucet and the red one to the hot water faucet. The machine can be connected
to the cold water faucet only: in this case, some programs may start a few minutes later.
• AQUASTOP (g. 8): a device located on the supply tube that stops water ow if the tube deteriorates; in this
case, a red mark will appear in the window “A” and the tube must be replaced. To unscrew the nut, press the
one-way lock device “B”.
• AQUAPROTECT - SUPPLY TUBE WITH GUARD (g. 9): should water leak from the primary internal tube “C”,
the transparent containment sheath “D” will contain water to permit the washing cycle to complete. At the end
of the cycle, contact the Customer Service Centre to replace the supply tube.
Buttons
A Play/Pause
B Temperature selection
C Spin speed
D Easy iron
E Delay start
F Options
G Stain level/Steam level*
H Special programmes (only available on
certain models)
B+C Child lock
* Steam level (only available on certain
models)
Icons
1 Door locked indicator
2 Easy iron indicator
3 Kg Load indicator light (active
only on certain programmes)
4 Wi-Fi indicator
5 Child lock indicator
6 Wash temperature indicator
7 Spin speed indicator
8 Options indicator
9 Stain level indicators
10 Special programmes indicator
2. Control panel
* Accessory sold separately
max
100 cm
+2.6 m
max
max 50 cm
max 85 cm
50 cm
min
4 cm
QG_TopLoader_Haier_70027464.indb 20QG_TopLoader_Haier_70027464.indb 20 19/06/2024 13:29:3019/06/2024 13:29:30
