34 31-5001082 Rev. 2
ENGLISH
Step 4 - Final Check
Explaining Operation To the End User
• Using the User Manual, explain to the user how to
use the air conditioner/heat pump, (the remote
controller, adding/removing the air filters, placing
or removing the remote controller from the remote
control holder, cleaning methods, precautions for
operation, etc.)
• Review precautions for operation.
• Recommend that the user read the Operating
Instructions carefully.

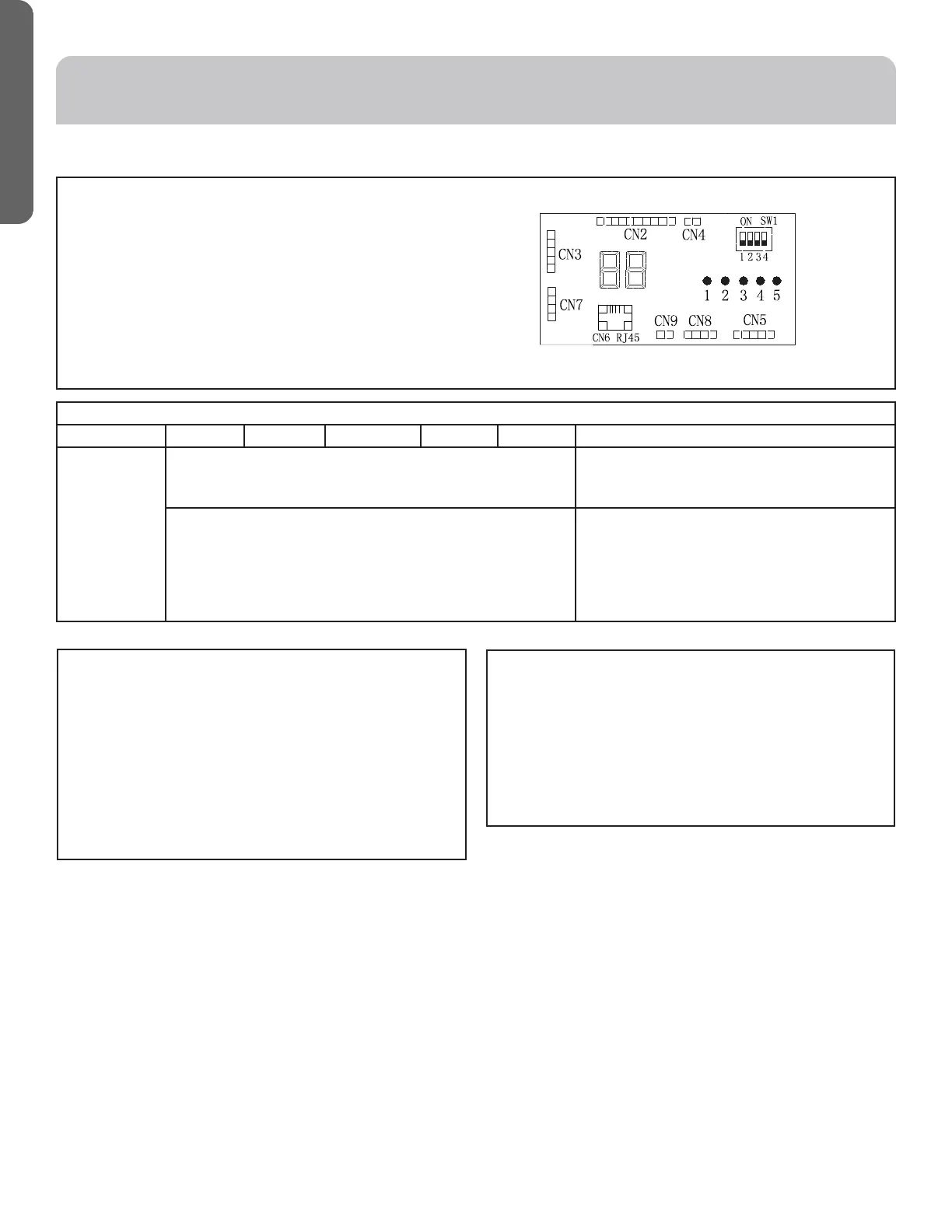

INSTALLATION INSTRUCTIONS
Green LEDs
Display 1 (Port A) 2 (Port B) 3 (Port C) 4 (Port D) 5 (Port E) Message
88
Shows
Compressor
Speed.
Flashing
numbers are
current faults
OFF No power to unit.
Unit is recently powered on and
communication started.
ON/OFF When LED is ON, that indoor unit has built a
communication path and will operate.
When LED is OFF, there is no indoor unit
installed or there is bad communication.
Wiring Check Test
Turn off power at the disconnect. Move all dip switches
in the SW1 bank to ON. When power is turned on, the
LED display will alternate the compressor frequency and
CH (check). The system will run through each unit (A, B,
C, D, and E), cycling each EEV while testing the wiring. A
successful test will be indicated by the corresponding LED
displaying a constant green (1=A, 2=B, 3=C, 4=D, 5=E).
Mis-wired units will generate an EC on the display, with the
corresponding LED flashing green.
UACT32A Central Controller (Optional
Accessory)
If installing a central controller, use RS485
communication compliant 16/2 AWG shielded SOOW
wire and connect the wiring to terminals C1 and C2 on
the outdoor unit terminal block. See section C of Step 3 in
this manual for the location of C1 and C2 on the terminal
block.
