2 Zones 3 Zones 4 Zones
2Q18FF2BEA 3Q24FF2BEA 4Q36FF2BEA
Cooling
Non-Ducted
Rated Capacity Btu/hr 18,000 24,000 35,000
Capacity Range Btu/hr 4,000-19,000 4,000-25,000 6,500-36,000
SEER2 22.5 24.0 20.0
EER2 12.0 12.0 10.0
Cooling
Ducted
Rated Capacity Btu/hr 17,000 24,000 33,400
Capacity Range Btu/hr 4,000-18,000 4,000-25,000 6,500-34,000
SEER2 18.8 17.2 16.5
EER2 10.8 10.5 8.8
Heating
Non-Ducted
Rated Heating Capacity 47°F Btu/hr 21,000 27,000 36,000
Capacity Range Btu/hr 4,000-22,000 4,000-28,000 6,500-37,000
HSPF2 (IV) 10.5 10.2 10.0
Rated Heating Capacity 5°F Btu/hr 16,600 17,600 23,000
Heating Capacity at 5°F / Capacity
at 47°F
79.0% 65.2% 63.9%
COP @ 5°F / COP @ 47°F 1.8 / 3.6 1.8 / 3.9 1.8 / 3.2
Heating
Ducted
Rated Heating Capacity 47°F Btu/hr 19,000 25,000 35,600
Capacity Range Btu/hr 4,000-20,000 4,000-26,000 6,500-36,000
HSPF2 (IV) 9.5 9.5 9.3
Rated Heating Capacity 5°F Btu/hr 15,000 17,000 21,000
Heating Capacity at 5F / Capacity
at 47F
77.0% 67.0% 60.0%
COP @ 5°F / COP @ 47°F 1.8 / 3.7 1.8 / 3.6 1.8 / 3.3
Operating
Range
Cooling °F (°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C)
Heating °F (°C) -4~75°F (-20~24°C) -4~75°F (-20~24°C) -4~75°F (-20~24°C)
Power Supply
Voltage, Cycle, Phase V/Hz/- 208-230/60/1 208-230/60/1 208-230/60/1
Wire Size Between IDU and ODU
14/4 AWG Stranded for L1, L2, C, G
between ODU and each IDU; and 16/2
AWG Stranded Shielded for H1, H2
between ODU and nearest IDU
14/4 AWG Stranded for L1, L2, C, G
between ODU and each IDU; and 16/2
AWG Stranded Shielded for H1, H2
between ODU and nearest IDU
14/4 AWG Stranded for L1, L2, C, G
between ODU and each IDU; and 16/2
AWG Stranded Shielded for H1, H2
between ODU and nearest IDU
Maximum Fuse Size A 25 25 30
Minimum Circuit Amp A 16 18 22
Outdoor Unit
Compressor Type DC Inverter Rotary DC Inverter Rotary DC Inverter Rotary
Outdoor Fan Speed RPM 200~700 200~700 250~780
Outdoor Noise Level dB 52 53 58
Dimension: Height in (mm) 27 9/16 (700) 27 9/16 (700) 30 1/8 (765)
Dimension: Width in (mm) 36 (915) 36 (915) 37 3/16 (945)
Dimension: Depth in (mm) 14 1/2 (368) 14 1/2 (368) 15 13/16 (402)
Weight (Net/Ship)- lbs (kg) 112/130 (51/59) 119/137 (54/62) 134/152 (61/69)
Basepan Heater No No No
Refrigerant
Lines
Refrigerant R454B R454B R454B
Connections Flare Flare Flare
Liquid O.D. in 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4 1/4
Suction O.D. in 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8 1/2
Factory Charge Oz 53 60 81
Maximum Line Length Ft / m 98/30 197/60 230/70
Maximum Height Ft / m 50/15 50/15 50/15
Minimum Line Length for Each
Individual Indoor Unit Ft / m
10/3 10/3 10/3
Maximum Line Length for Each
Individual Indoor Unit Ft / m
65/20 82/25 82/25
Maximum Line Length without
Additional Charge Ft / m
66/20 100/30 131/40

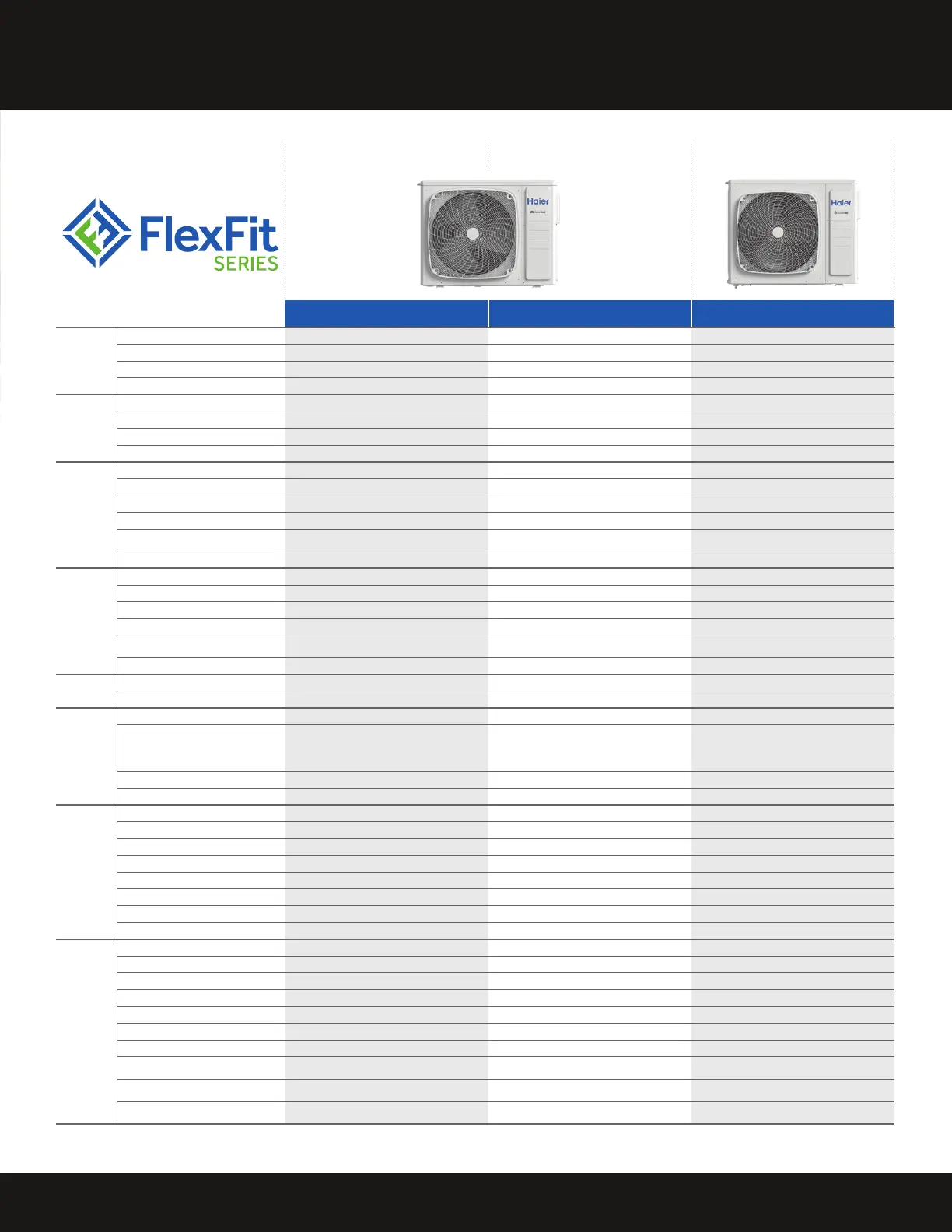

Multi-Zone
Outdoor Unit Specications
