30
31-5001099 Rev. 1
Installation Instructions
Step 3 - Electrical Connections

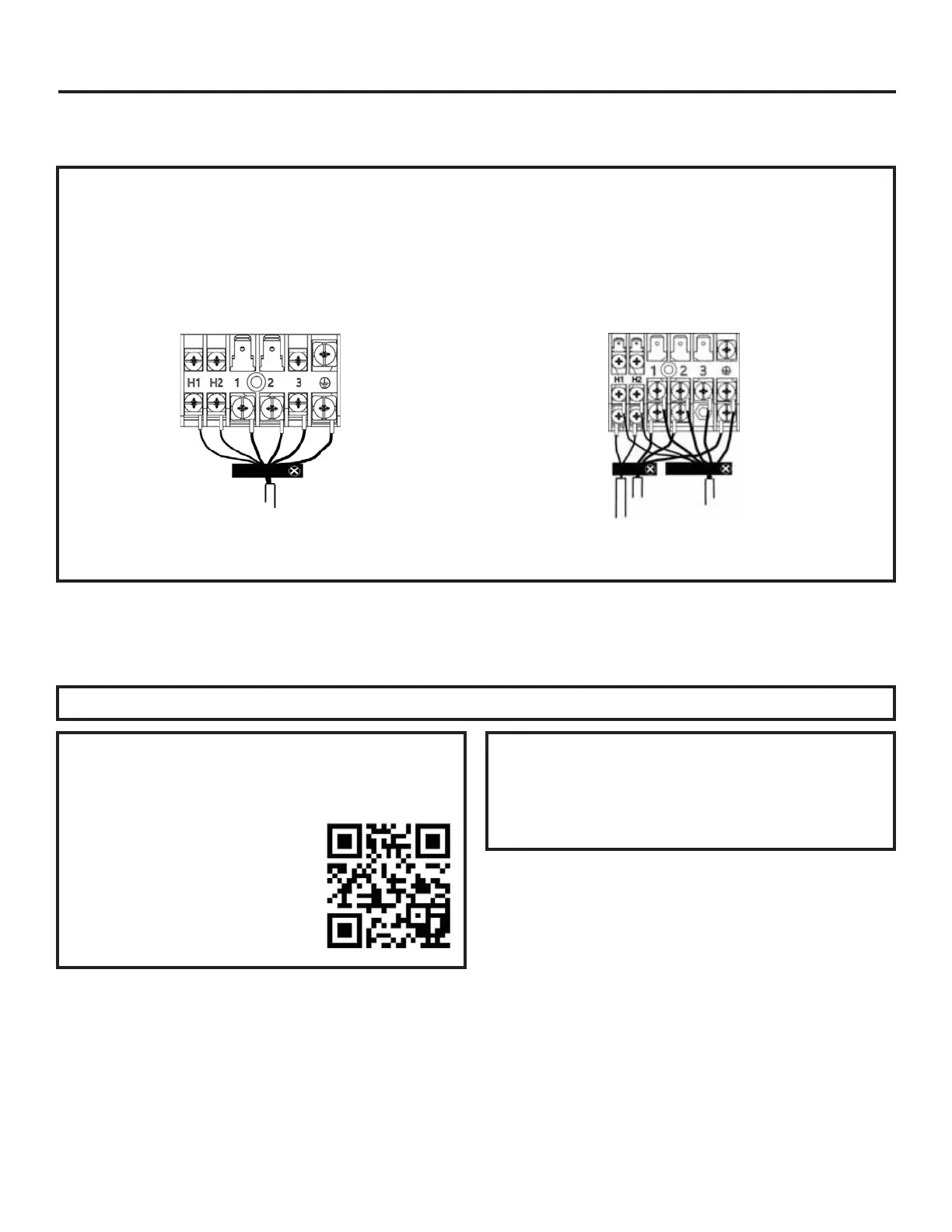

Electrical connections indoor and outdoor units
• 14 AWG AWG SOOW Non-Shielded Stranded Copper Wire Only. (Central Controller Not Used)
• 16/2 AWG Shielded SOOW Cable should be used for high speed communication on H1 and H2 terminals. Note:
In applications with multiple indoor units, only connect one indoor unit to the outdoor unit with the high speed
communication cable. It is recommended to connect the indoor unit that is closest to the outdoor unit.
• Maintain 10 feet of separation between TV and any Radio wiring.
Outdoor Unit
Centralized controller
Power wiring
Control wiring
Indoor Unit Control Wiring
Step 4 - Leak Testing, Evacuation and Wifi
Refer to the outdoor Installation Manual for the recommended procedure.
Wifi Pairing
1. Download the “SmartHQ” app from Google Play
(Android) or the Apple app store (IOS).
After downloading the App:
2. Open the app.
3. Select “Sign In”.
4. Sign into your account or register
as a new user.
5. Select the “+” icon to add a new
device and follow the directions in
the app.
Software Notice
To ensure product is functioning optimally and with the
latest feature set, connect AC unit to WiFi and update
with latest software. Refer to Owner's Manual on how to
connect WiFi.
