31-5001099 Rev. 1 29

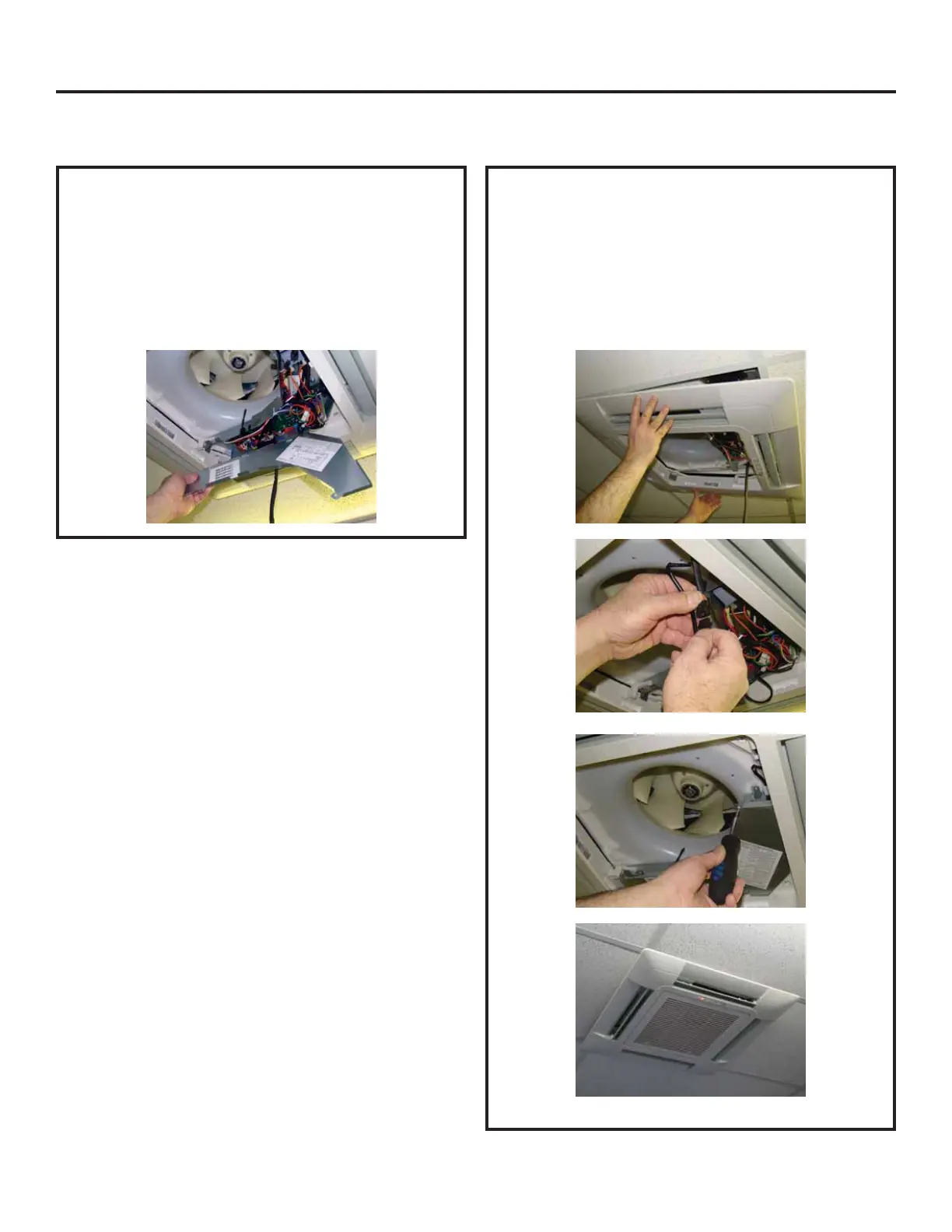

Step 2 - Installation of the Cassette Unit (Cont.)
G. Remove the electrical box cover. Remove the rubber
grommet and insert a 1/2 inch electrical connector
and reducing washer. Route electrical wiring into
cassette unit. Connect to wire terminals as indicated
in wiring diagram (use 14/4 AWG SOOW Non-
Shielded Stranded Copper Cable for power and
main communication line; use 16/2 AWG Shielded
SOOW Cable for high speed communication).
Installation Instructions
H. Connect Grille assembly to cassette assembly.
Connect wires from louver to the harness on the
cassette assembly. There are two wire connections
(see photo for connections).
• Secure louver with four screws.
• Reinstall electrical box cover.
• Install return air grille into louver assembly.
• Installation is now complete.
