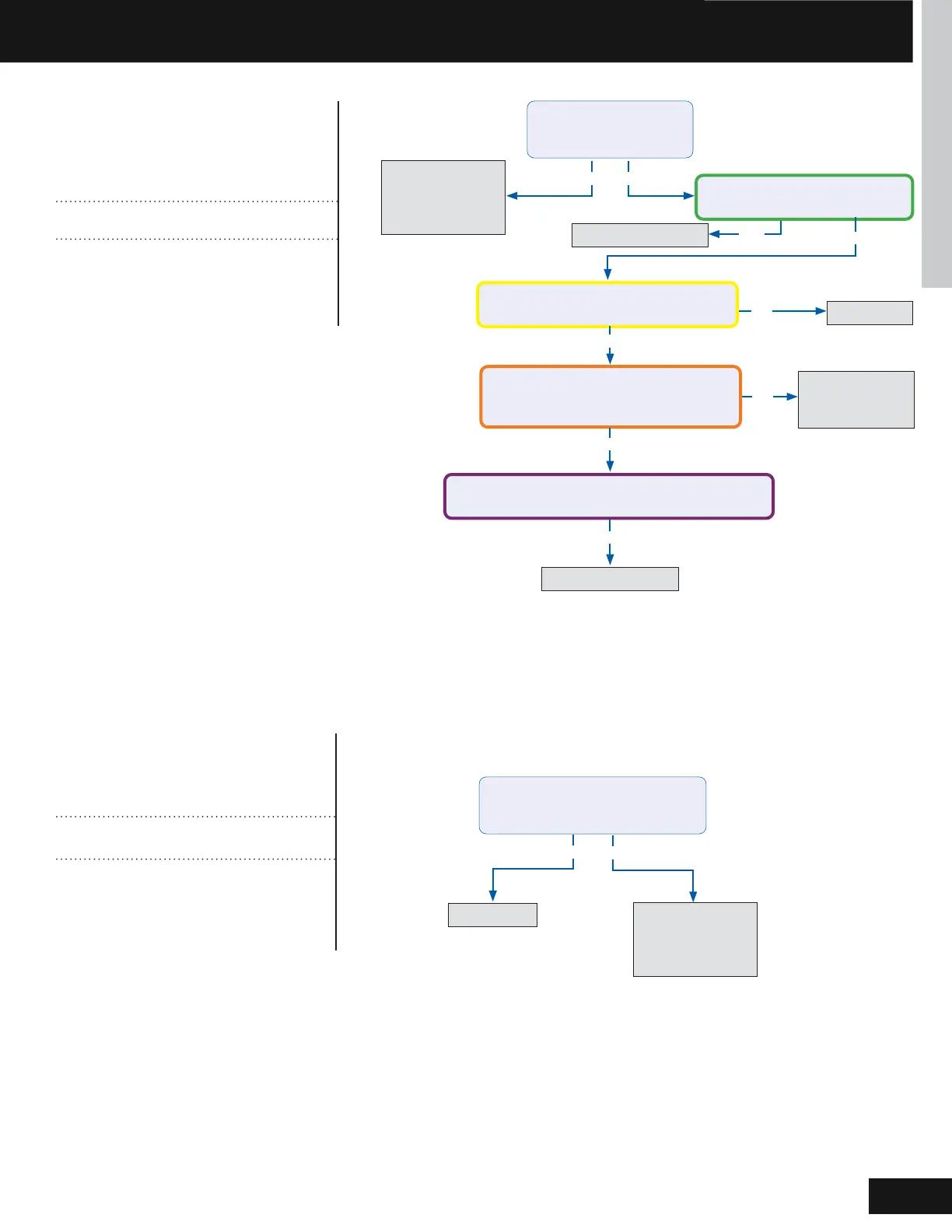

TROUBLESHOOTING & REFERENCES
Ï¡)
ENGLISH
No
No
Yes
Momentary loss
of building power
or acceptable
power quality
Replace compressor
Replace compressor
Replace IPM
Repair or
replace wiring or
connections
àëèñóòúèõìöòģéòõ%
min. and turned back on,
the compressor runs?
A windings or grounding check
shows issues with compressor?
There is 50-200 VAC across the U, V,
and W solder points on the IPM?
The compressor wires are on the
correct terminals, free of breaks and the
connections at both end are secure?
There is substantially more than 5 VDC or 15 VDC
pulsing at CN23 (MODULE COM) on the PCB?
Yes
Yes
Yes
Yes
No
No
ÎõõòõÌòçè ¤Òñçòòõ¦Øø÷çòòõ¥
Ï!!¦ÕÎÍ!!(Ïïäöë
Loss of Compressor
Synchronization
Complete the “Check This First” Flow Chart
before continuing.
Öòçèïö
AW24TL2HFA
AW30TL2HFA
AW36TL2HFA
Yes
No
The 10-minute
reboot has
corrected the
issue
Replace PCB
After 10 minutes with the power
òģ÷ëè!¡ĥäöëõèäóóèäõöúì÷ë
power turned back on?
ÎõõòõÌòçè ¤Òñçòòõ¦Øø÷çòòõ¥
Ï!"¦ÕÎÍ!!Ïïäöë
EEPROM Error
Complete the “Check This First” Flow Chart
before continuing.
Öòçèïö
AW24TL2HFA
AW30TL2HFA
AW36TL2HFA
ÝÛØÞËÕÎÜÑØØÝÒ×ÐÏÕØàÌÑÊÛÝÜ
31-5000936-1
