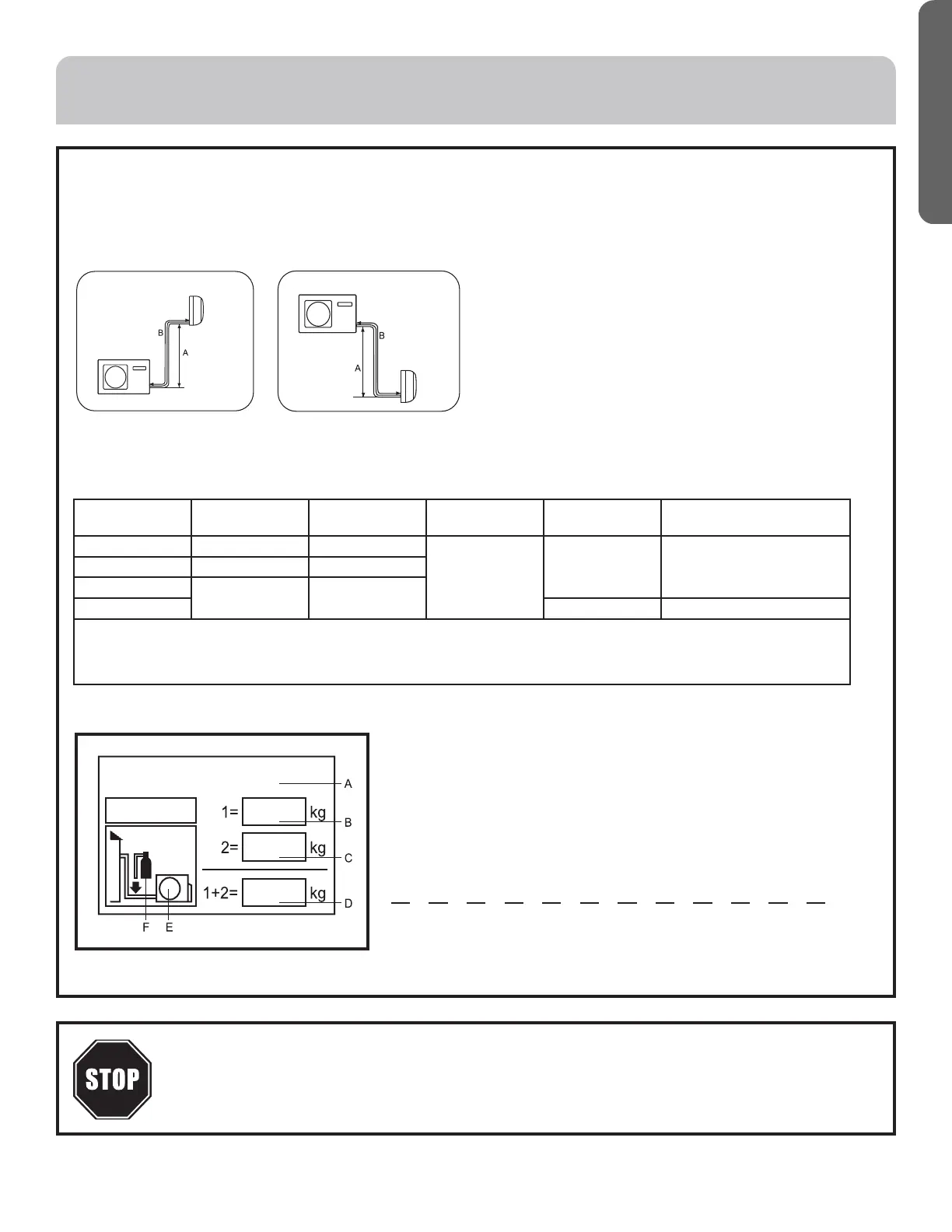

31-5001078 Rev. 0 13
ENGLISH
INSTALLATION INSTRUCTIONS
Refrigerant Linesets
This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent into the
atmosphere.
Refrigerant type: R454B
CAUTION
• Max. Elevation: A max
• Max. Length: B max
• Min. Length: B min
1.Ýëèóìóèïèñê÷ëúì÷ëòø÷èû÷õäêäöñèèçèçúëèñ"%é÷Ë! é÷
2.Òñæäöè÷ëèóìóèïèñê÷ëËìöðòõè÷ëäñ"%é÷¤Ëðäû¥÷ëèõèéõìêèõäñ÷öëòøïçåèæëäõêèçäææòõçìñê÷ò
below table.
Outdoor Unit A max (ft) B max (ft) ** B min (ft) Liquid pipe (in)
* Extra charge amount per ft
after standard length (oz)
1Q07~15 33 66
10
1/4 1/51Q18 50 83
1Q24
100 165
1Q3036 3/8 1/2
Notes:
Refrigerant piping must be kept to a minimum.
* Be sure to add the proper amount of additional refrigerant. Failure to do so may result in reduced performance.
** The suggested shortest pipe length is 10ft, in order to avoid noise from the outdoor unit and vibration.(Mechanical noise and vibration
may occur depending on how the unit is installed and the environment in which it is used.)
3. Refrigerant charge label
A: Contains fluorinated greenhouse gases covered by the Kyoto
Protocol
B: Factory refrigerant charge of the product: see unit nameplate
C: Additional refrigerant amount charged in the field
D: Total refrigerant charge
E: Outdoor unit
F: Refrigerant cylinder and manifold for charging
1 – The factory refrigerant charge of the product.
2 – The additional refrigerant amount charged in the field.
1+2 – The total refrigerant charge.
Indoor
Unit
Indoor
Unit
Outdoor Unit
Outdoor Unit
1
2
R454B
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
After the total refrigerant charge is calculated, refer to the installation instructions of the indoor unit.
Depending on the room size, a refrigerant leak sensor may need to be installed on the indoor unit.
