Fire protection, sound barrier

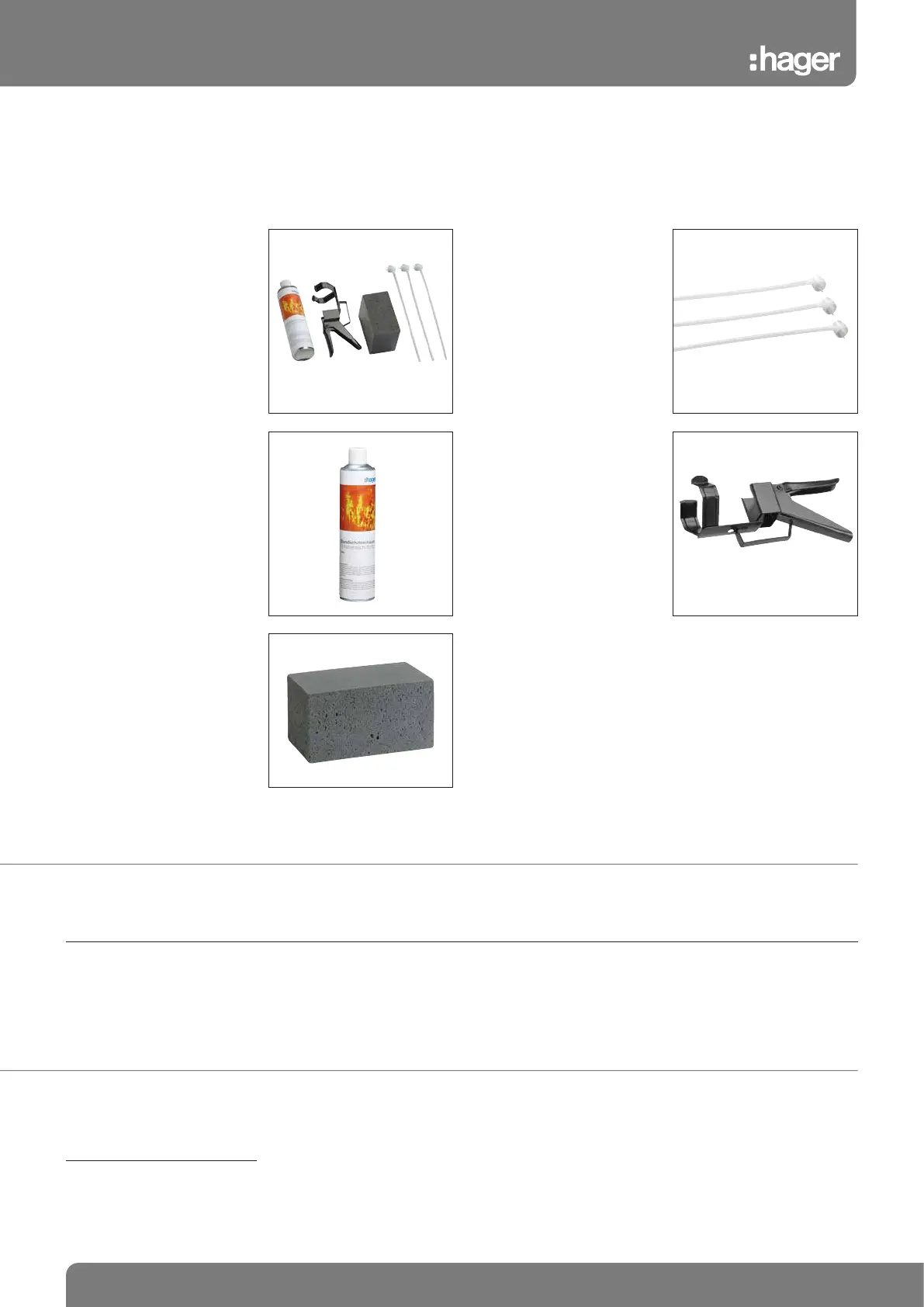

BS90SET comprising of
1 Fire protection foam can
(BS90D)
1 Shaped part (BS90F)
1 Valve tongs (BS90Z)
3 Spray tubes with adapter
(BS90S)
2 Identification signs
1 AbZ, approval no.: Z19.15-1256
1 Installation instructions
Yield: approx. 2,100 cm³
Cable insulation
For installation in walls and floors for fire resistance classification S90 in accordance with DIN4102.
Building inspectorate approval: Approval no.: Z19.15-1256
Min. firewall length 150 mm
Form of delivery:
BS90D
1 Fire safety foam can
(Only to be used in conjunction
with valve tongs BS90Z and
spray tubes BS90S)
Yield: approx. 900 cm³
BS90F
1 Shaped part
Yield: approx. 1,200 cm³
BS90S
3 Spray pipes with adapter
BS90Z
1 Valve tongs
2-component silicone fire protection foam S90
Requirements calculation table for cable fire partitioning
BKB25085 3.188 1.0 set + 1.0 socket 1.4 socket
Trunking type Volume Trunking without Trunking with maximum
in cm³ line occupancy line occupancy
Sound barrier
Trunking types Pigtails
BKB25085 25
Sound barrier L5804
Maximum fill level of empty trunking
