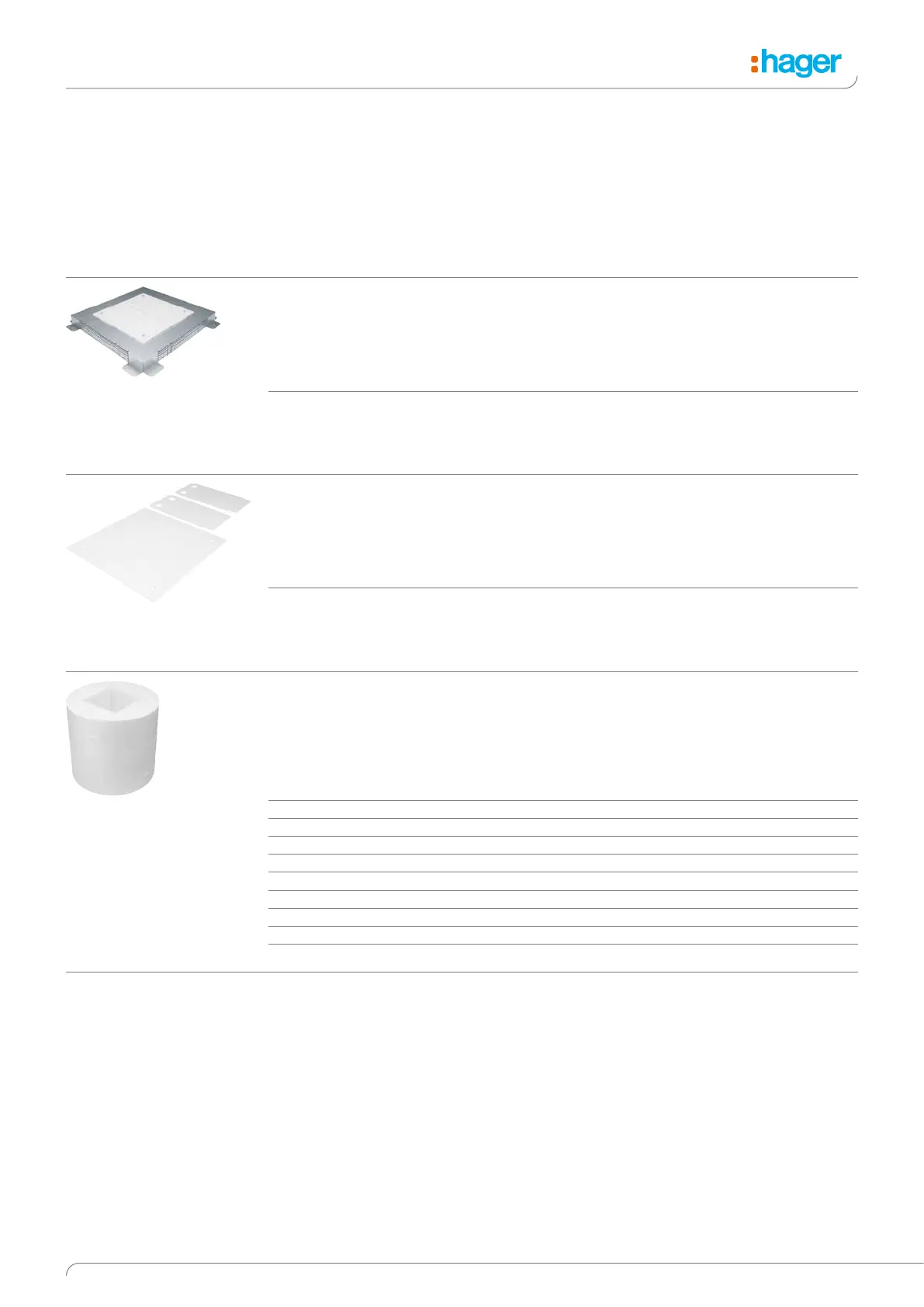

21Technical changes reserved
electraplan.UK
Formwork elements for service units and
height adjustable cassettes
Material
Junction box: Galvanised
steel sheet
Main body: Plastic, PP
Formwork element: Styropor
Shapes
E04: cornered 147 x 247 mm
E09: cornered 200 x 253 mm
R06: round 215 mm
R2: round 242 mm
R10: round 275 mm
R12: round 306 mm
Q06: square 200 x 200 mm
Q12: square 244 x 244 mm
Q08: square 294 x 294 mm
Note
- orientate formwork elements
before casting the screed
- remove the formwork element
after the screed is set
SEVR06200
Formwork elements for service units and height adjustable cassettes
Designation PU Order no.
Formwork element VE04 147x247mm H=200mm 1 SEVE04200
Formwork element VE09 200x253mm H=200mm 1 SEVE09200
Formwork element VR06 rund 215mm H=200mm 1 SEVR06200
Formwork element VR2 rund 242mm H=200mm 1 SEVR2200
Formwork element VR10 rund 275mm H=200mm 1 SEVR10200
Formwork element VR12 rund 306mm H=200mm 1 SEVR12200
Formwork element VQ06 200x200mm H=200mm 1 SEVQ06200
Formwork element VQ12 244x244mm H=200mm 1 SEVQ12200
Formwork element VQ08 294x294mm H=200mm 1 SEVQ08200
SEBD500GT
Properties:
- 500 x 500 mm
- including base support
Designation PU Order no.
Formwork element floor socket base support 1 SEBD500GT
Junction box with steel sheet formwork for formwork elements
SEGT350
Properties:
- 350 x 350 mm
- For use with e.g. cavity floors
Designation PU Order no.
Formwork element base support 350x350 mm 1 SEGT350
Formwork element base support
Properties:
- height 200 mm
- in 5 segments with 40 mm height,
divisible, can thus be matched with floor construction height
