20 Technical changes reserved
electraplan.UK
electraplan.UK

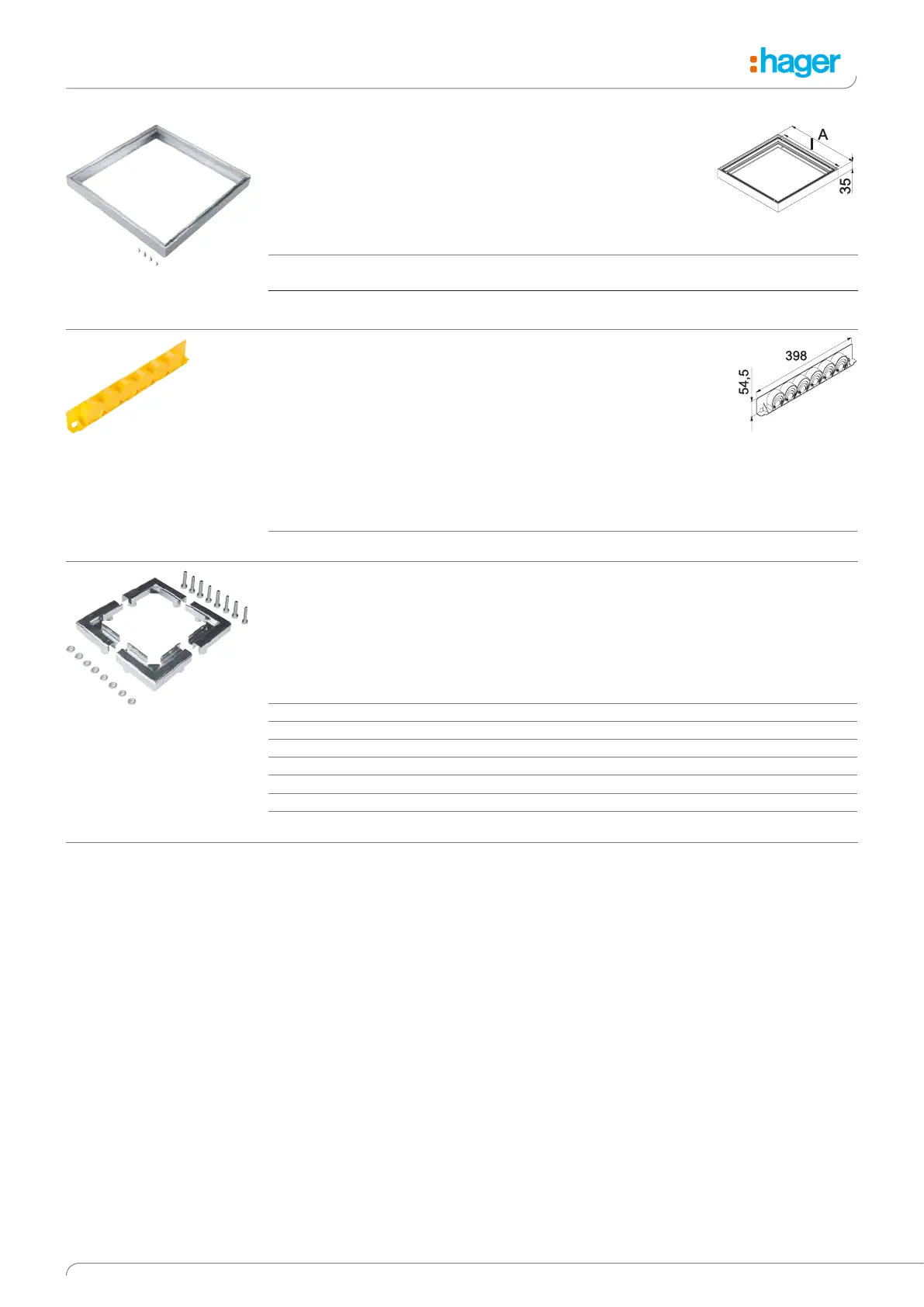

Universal junction boxes, accessories
UDAR335
Levelling frame
Properties:
- Levelling frame made of aluminium for fitting frame UDM
- For adjustment to screed layers with a height of more than 35 mm
Designation Outer
dimension
A [mm]
Internal
dimension
I [mm]
PU Order no.
Levelling frame size 2 height 35 mm 296 x 296 290 x 290 1 UDAR235
Levelling frame size 3 height 35 mm 366 x 366 360 x 360 1 UDAR335
Pipe inlet for universal junction box with bottom plate
and sheet metal casing
Properties:
- Pipe inlet made of plastic, for connection of electrical
installation pipes to underfloor box UDS3070120
- With pre-stamped sealing plugs for pipe diameters 20,
32, 40 and 50 mm
Material:
Polyamide
Designation PU Order no.
Pipe inlet for underfloor box UDS3070120 260 UDS32050RE
UDSLS098
Heavy-duty frame
Properties:
- Heavy-duty frames are supplied as a set (with height-adjustment set screws)
- Suitable for use with universal junction boxes UDB, UDH, UDS size 3
- Heavy-duty frames can be subjected to loads of up to 20 kN
in conjunction with heavy-duty fitting frames
Designation Height adjustment range [mm] PU Order no.
Heavy-duty frame for screed height 073-098 4 UDSLS098
Heavy-duty frame for screed height 093-118 4 UDSLS118
Heavy-duty frame for screed height 113-138 4 UDSLS138
Heavy-duty frame for screed height 138-163 4 UDSLS163
Heavy-duty frame for screed height 158-183 4 UDSLS183
Heavy-duty frame for screed height 178-203 4 UDSLS203
Heavy-duty frame for screed height 198-223 4 UDSLS223
UDS32050RE
