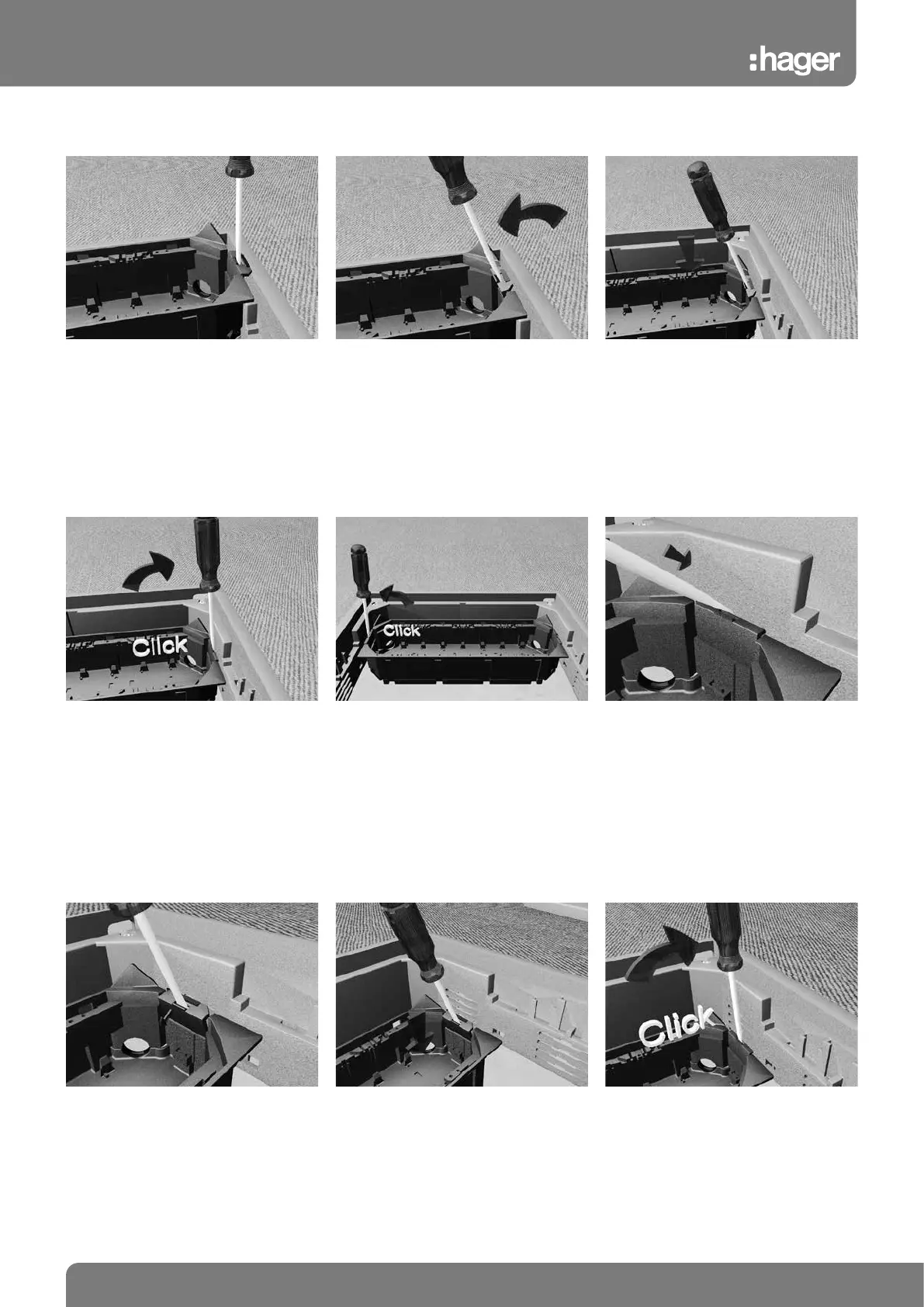

Installation instructions, device casings GBVR400 / GBVR300
Insert a screw driver
Use the screwdriver to snap in the device
casing lug at the required height. The tab
must engage audibly.
Bend the lug inward Locate the device casing
Bend the device casing lug inwards using
a screwdriver.
Adjust the device casing to the required
height using the screwdriver.
Snap in the device casing Snap in the opposite side Release the device casing
Snap in the device casing lug at the required
height using a screwdriver. The tab must
snap in audibly.
Following the principle of the preceding
steps, snap the device casing into the
service unit on the opposite side.
Insert the screwdriver into the perforation
at an angle and turn it upward to release the
tab of the device casing from the service
unit.
Pull out the lug of the device casing Lower the device casing Snap in the device casing
Bend the lug of the device case inward using
a screwdriver and pull it from the perforation
of the service unit.
Adjust the device casing to the required
height using the screwdriver.
Snap in the device casing lug at the required
height using a screwdriver. The tab must
snap in audibly.
