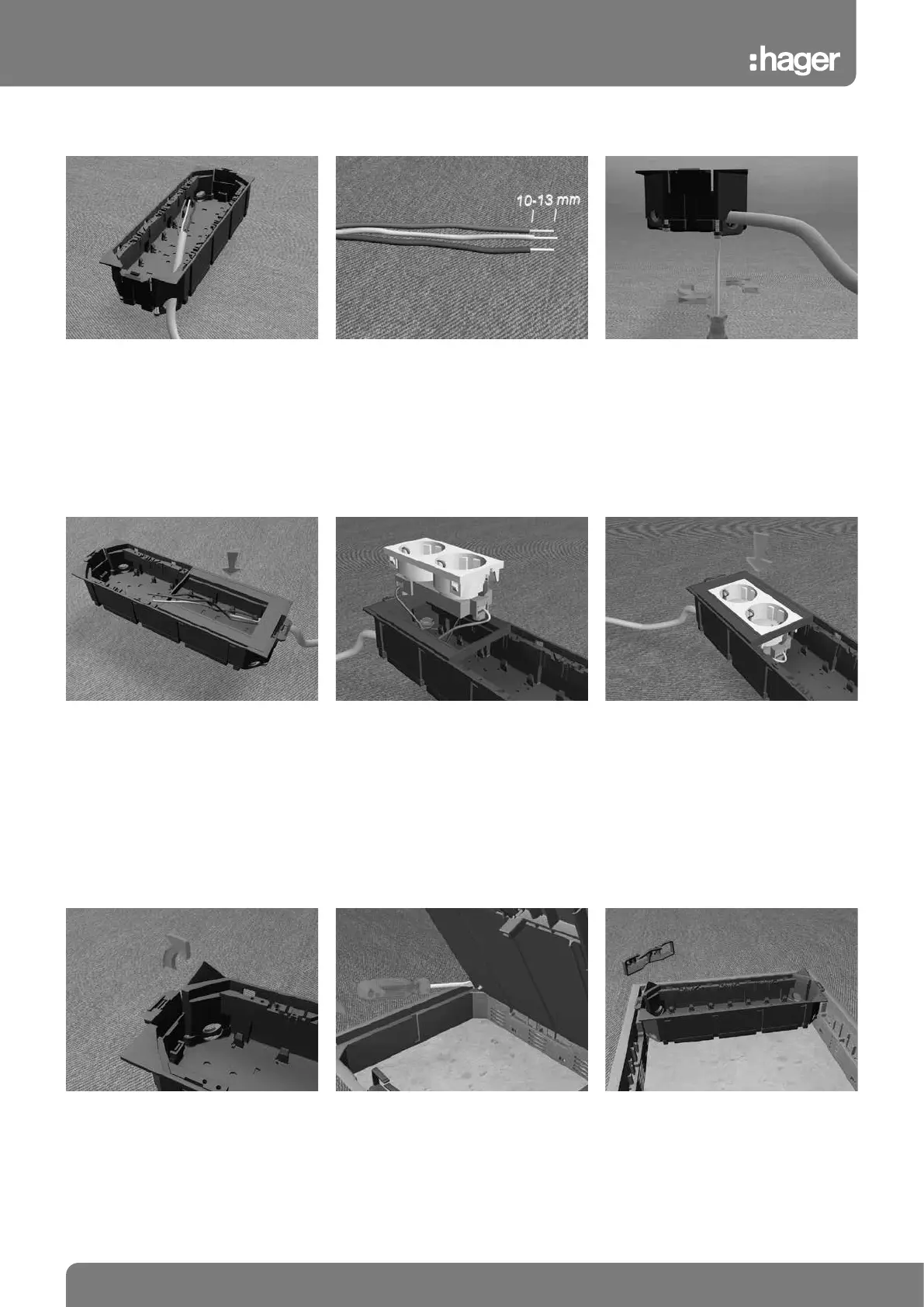

Installation instructions, device casings GBVR400 / GBVR300
Route the cable into the device casing
Route cable through side opening of device
casing.
Strip the cables Pull off the strain relief
Strip insulation of the individual wires to a
length of 10 to 13 mm.
Pull back surplus cables and tighten screw
of respective strain relief.
Snap in the mounting plate for Rastec 45
®
Rastec 45
®
sockets are installed into de-
vice casings using a mounting plate. Insert
mounting plate from the top into guide of
device casing until the tabs snap in.
Connect socket Rastec 45
®
Snap in socket Rastec 45
®
Connect socket Rastec 45
®
, routing the
wires through the opening in the mounting
plate.
Socket for Rastec 45
®
is pushed into the
mounting plate from above until it snaps in.
Turn the corners upwards (optional)
If the device casing is not installed in the
middle of the service unit, the corners of
the device casing are turned upwards or
downwards. This avoids the cumbersome
procedure of cutting off the corners.
Remove the cover Locate the device casing
To simplify the installation procedure we
recommend removing the cover prior to
installation. Twist the screwdriver to loosen
the tabs.
Position the device casing horizontally in the
service unit. The corners of the device casing
are turned upward or downward.
