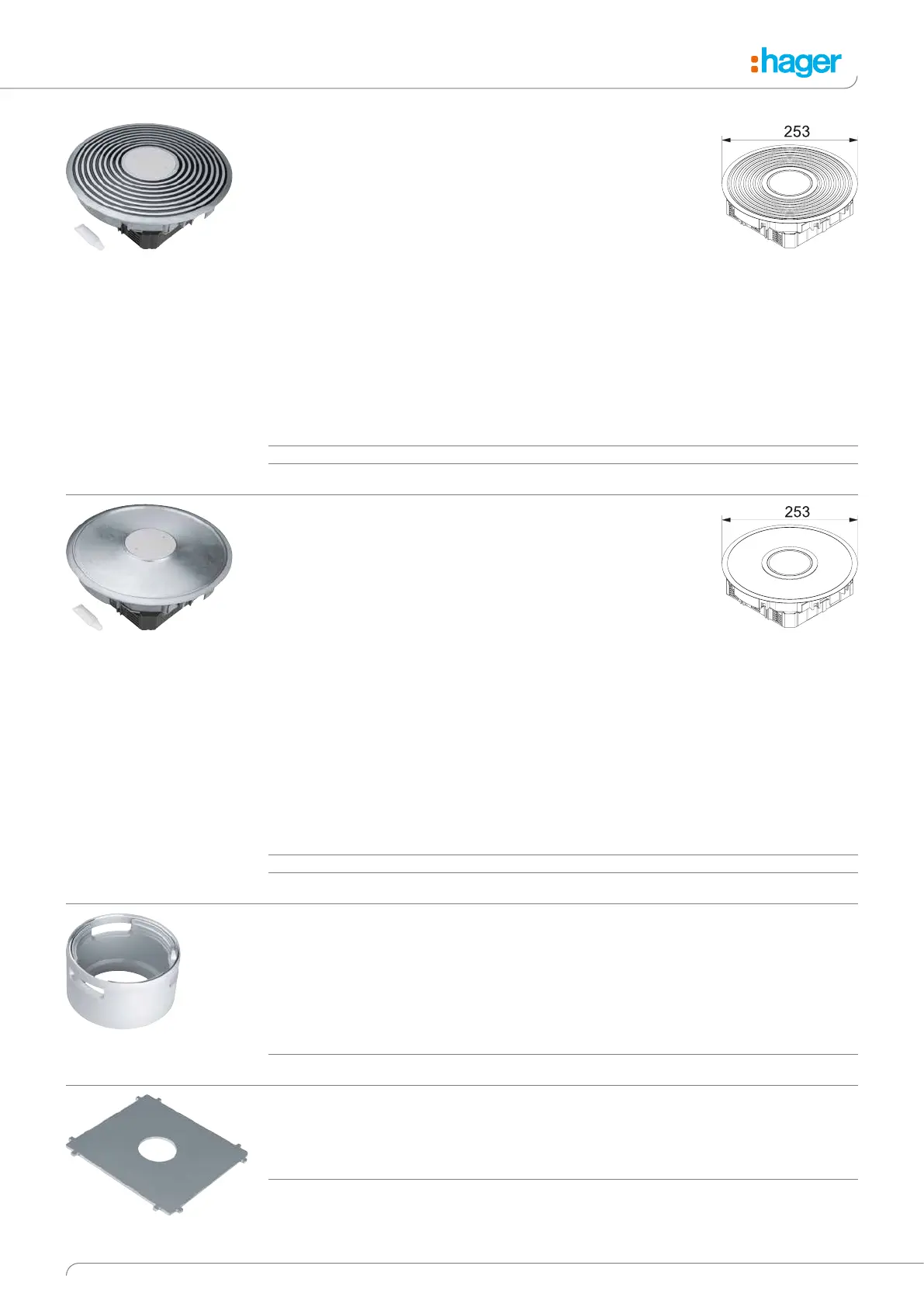

Service units for wet-cleaned floors
VANR2009005
Ø
Properties:
- Service unit with flooring frame made of aluminium for wet-cleaned
floors
- Full-aluminium cover with grooved structure
- For up to 6 installation devices in
3 device casings GTVR300, GBVR300 or GTVD200
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of aluminium must be ordered as an option
if required
- Outer dimension of flooring frame: Ø 253 mm
- Installation dimensions: Ø 242 mm
- Installation height from 90 mm for GBVR300 and GTVD200
- Installation height from 95 mm for GTVR300
- Material: Aluminium
- Variant:
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Service unit for wet-cleaned floors for the installation
of tube cable outlets made of aluminium
Designation PU Order no.
Serv.unit R2 w set HB wet Al-Tub R ts 1 VANR2009005
Serv.unit R2 w set BD wet Al-Tub R ts 1 VANR2019005
Ø
VANR2003
Properties:
- Service unit with flooring frame made of aluminium for wet-
cleaned floors
- Full-aluminium cover, also fits bonded floorings of 3 mm thick-
ness (e. g. PVC, linoleum or chequered aluminium panel)
- For up to 6 installation devices in
3 device casings GTVR300, GBVR300 or GTVD200
- Device casings can be lowered in increments down to 18 mm
- Mounting kit for double floors upon request
- A tube cable outlet made of aluminium must be ordered as an
option if required
- Outer dimension of flooring frame: Ø 253 mm
- Installation dimensions: Ø 242 mm
- Installation height from 90 mm for GBVR300 and GTVD200
- Installation height from 95 mm for GTVR300
- Material: Aluminium
- Variant:
HB - with mounting kit for cavity floor
BD - with mounting kit for junction boxes
Designation PU Order no.
Serv.unit R2 w set HB wet Al-Tub 3mm 1 VANR2003
Serv.unit R2 w set BD wet Al-Tub 3mm 1 VANR2013
Service unit for wet-cleaned floors for the installation
of tube cable outlets made of aluminium
Properties:
- Aluminium cable outlet protruding above the floor
- without tube blank cover
- Outer diameter 105 mm
- Inner diameter 80 mm
- Material: Anodised aluminium
TULAA105
Tube cable outlet
Designation PU Order no.
Tube cable outlet without tube blank lid aluminium 1 TULAA105
Designation PU Order no.
Pin wrench for tube blank cover 1 TUSS000
Properties:
- For screwing in and unscrewing tube blank cover
TUSS000
Pin spanner
