86
Technical changes reserved
tehalit.BKB
tehalit.BKB

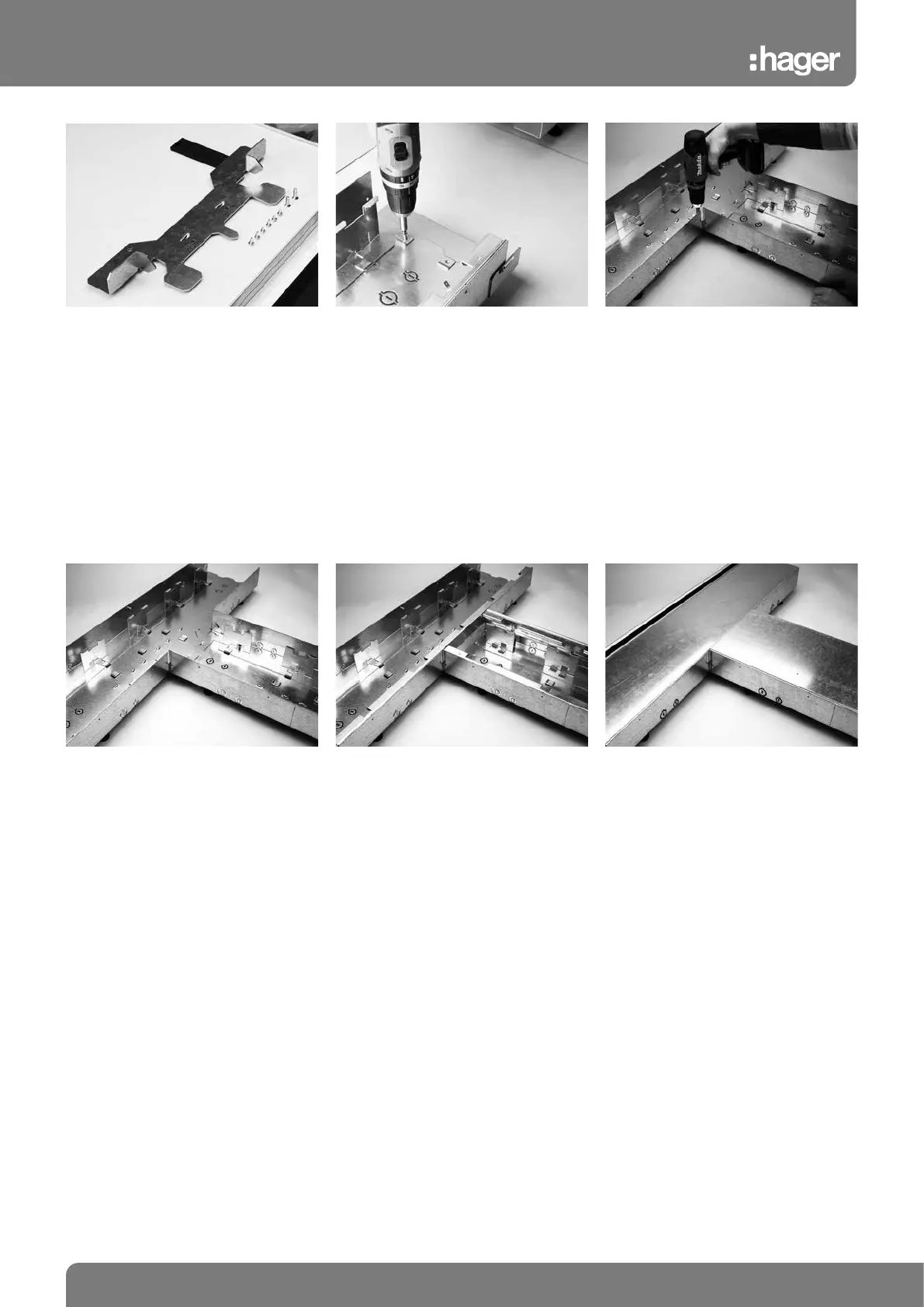

Installation sequence for the trunking system
1. To produce the T-piece, you will only need
the shaped part shown above and a jig
saw to create the 250 mm cut-out in the
trunking. Caution! Before cutting out the
marked cut-out, remove the support for
the upper part and the floor stop rail.
These two parts are refitted after com-
pletion of the cut-out to ensure optimum
support for the upper part and to achieve
a clean transition to the floor covering.
2. The tabs protruding flat to the rear are
inserted into the trunking lower part that is
to be connected and then screwed to the
trunking using the enclosed self-tapping
screws.
3. The tabs protruding to the sides are in-
serted into the trunking lower part that is
to be branched off and screwed into the
trunking with the enclosed drilling screws.
4. The trunking lower parts are aligned once
the screws have been screwed in.
6. Installation of the fitting frame.
5. The stop profiles are then installed.
