278
Technical changes reserved
Technical
Information
Technical changes reserved
278

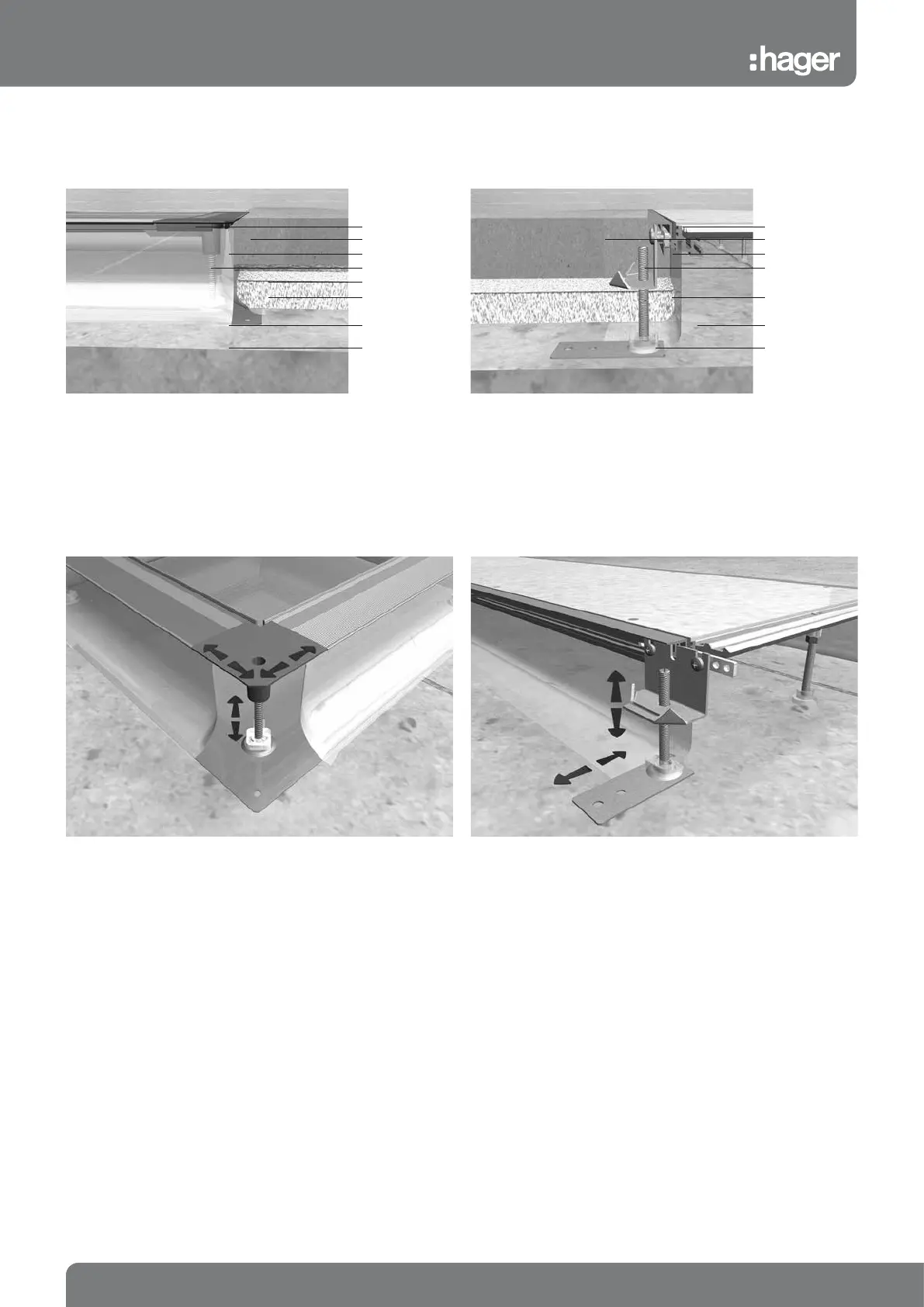

Instructions for screed layer
Footfall sound insulation and screed casing:
To prevent cracking, rigid joints between the flush floor trunking or
junction box and the bare floor must be avoided.
Flush floor trunking
Metal conductive sound bridges from the flush floor trunking to the
bare floor or from the junction boxes with screed casing to the bare
floor must be avoided.
Junction boxes
Box frame
Screed
Screed casing
Set screw
Intermediate layer
Insulating layer
Bottom panel
Bare floor
Flush floor trunking
Trunking side profile
Screed
Screed casing
Set screw
Insulating layer
Bare floor
Retaining tab
Flexible system suspension:
It is essential that the footfall sound insulation mat is brought up to
the screed casing of the flush floor trunking and junction box.
Junction boxes
The flexible system suspension allows the top part of the junction
box or flush floor trunking to follow the movement of the screed slab.
