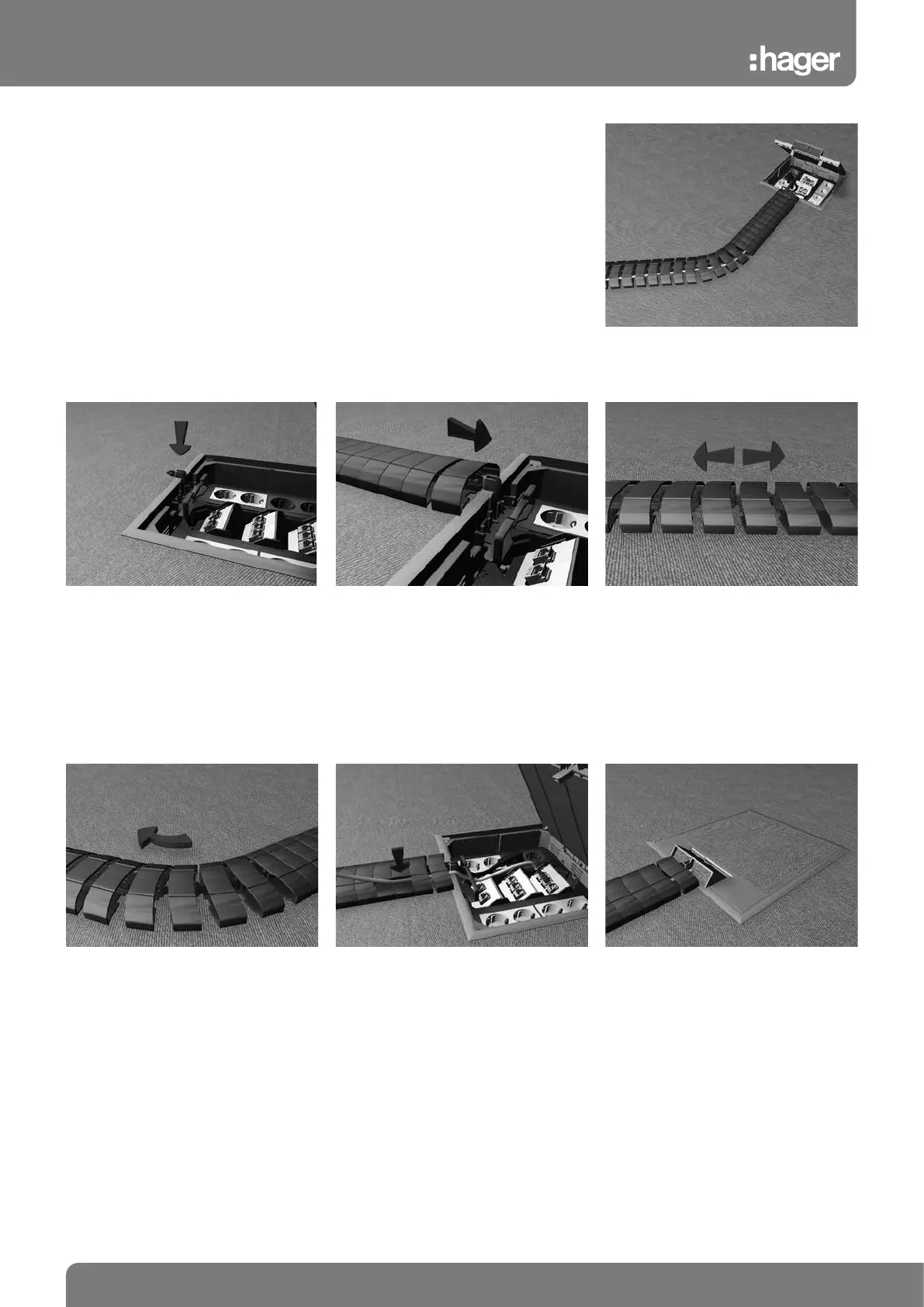

Installation instructions for round chain
General instructions:
Flat
Flat flexible wire cover for running cables across the floor
Latching and spacious
The two latching positions allow the chain to make a rigid connection Two
compartments facilitate the parallel routing of data and power lines
Rigidity
The rigid design ensures a high level of protection against stepping
Insert the flexible wire cover adapter
Insert the flexible wire cover adapter from
above into the centre groove.
Connect the flexible wire cover Alternatively, expand the flexible wire cover
Clip the flexible wire cover with the groove
into the latch of the flexible wire cover
adapter.
To make the flexible wire cover flexible, pull
apart the individual joints until they are held
by the second latching point.
Routing bends
If the individual links of the flexible wire cover
are pulled apart, they can also be routed in
a radius.
Thread in the cables Close the lid
Plug the connectors into the power sockets.
Then push the cable from above into the flex-
ible wire cover. The lateral perforation of the
flexible wire cover link can be pushed down.
Close the lid of the supply unit. The cable
outlet remains open when the flexible wire
cover is connected.
