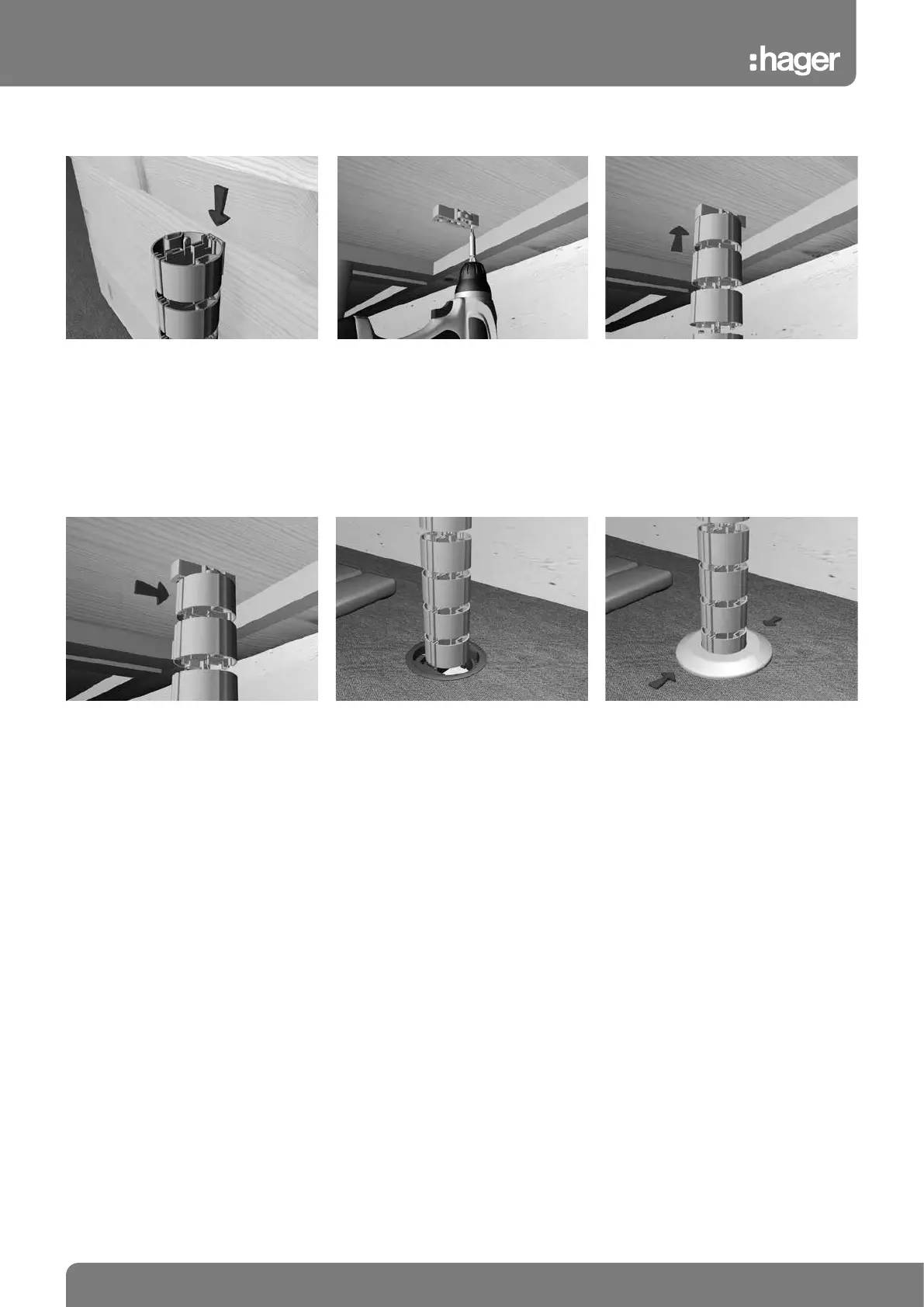

Installation instructions for round chain
Snap in the round chain
Push the entire round chain into the guide
groove from below.
Attach the connection adapter Plug in the round chain
To attach the round chain to the underside of
a desktop, the connection adapter must be
mounted to the desktop underside.
Push the round chain into the connection
adapter from below.
Snap in the round chain
Push the round chain from the side into the
centre of the connection adapter. The round
chain snaps in and is then locked in position.
Connect to the cable outlet Install the rosette cover
Attach the round chain to the cable outlet in
the same manner. Push it in and move it to
the centre position from the side.
Position the two-piece rosette cover from
both sides around the round chain and clip it
together.
