129
Technical changes reserved
electraplan.AK
On-the-floor
trunking

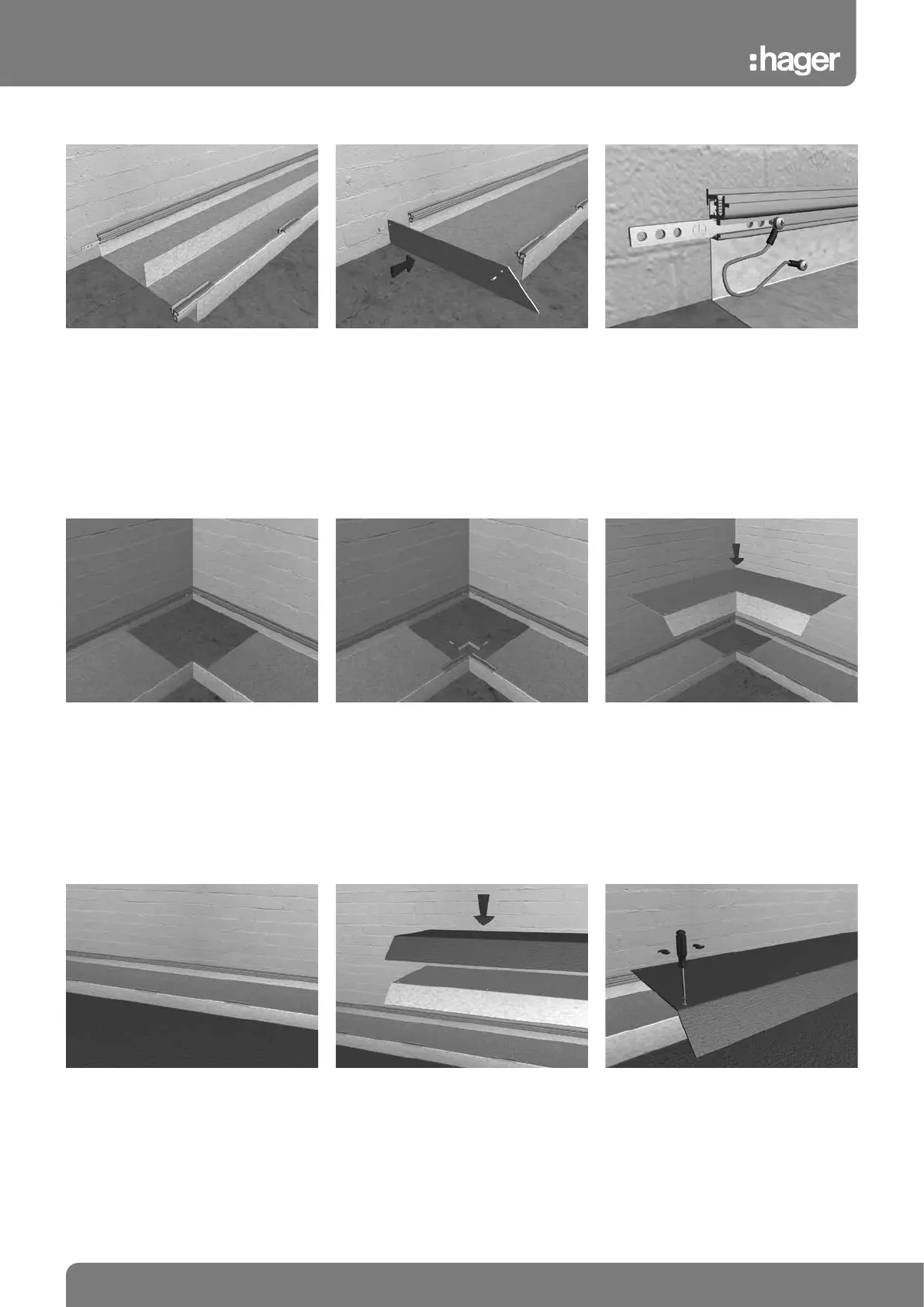

Trunking partition wall BKTWK
Optional partition wall BKTWS is already in-
stalled in the factory.
Trunking end pieces Earthing
Screw the trunking end pieces into the side
profile as shown in the illustration.
Earth conductor cable AKZSA0135 is
screwed to the connector. The profile must
be connected conductively to the trunking
lower part (trough) on-site. Drill holes in the
side profile and screw in a self-tapping screw
until it presses tightly against the trough.
Angle setting
Lay the trunking lower parts flush to one an-
other in the angle. Saw the (long) side profile
on a mitre and screw to the angle connec-
tors.
Screwing trunking connectors
Screw the (short) side profiles to the angle
connectors.
Laying flooring
Lay the flooring up to the trunking lower
parts of the installed on-the-floor trunking
system.
electraplan.AK
Installation instructions, on-the-floor trunking system
Flooring on blank cover
Glue the flooring to completely cover the
blank cover. Then, where necessary, cut out
installation openings in the flooring.
Screwing on blank covers
Screw the blank covers on the trunking lower
parts. Align the (short) side profiles under the
drilled holes. Insert bolts through the flooring,
then insert screws in the profile slots and
tighten. In this way, the screws remain easily
accessible for later revisions.
Applying blank covers
Screw the blank cover inner corners or blank
cover outer corners, which have been cut
on a 90° mitre in the factory, into the side
profiles.
