Installation instructions, on-the-floor trunking system
General information:
Wall
Wall openings should be produced prior to installation of the trunking.
Cleaning
The installation surface must be clean and flat.
Deburring
Sharp corners and edges are to be avoided.
Lower part fastening
Trunking lower parts must be installed on the bare floor before putting down the flooring.
Floor laying
The flooring must be laid up to the trunking lower parts.
Earthing
The system components are to be included in the earthing measures, in accordance with DIN VDE 0100.
Screwing
Trunking covers must be securely and permanently screwed to the lower parts.
Fastening trunking lower parts to the bare
floor
Lay the trunking lower parts together in the
required position and fasten on to the bare
floor.

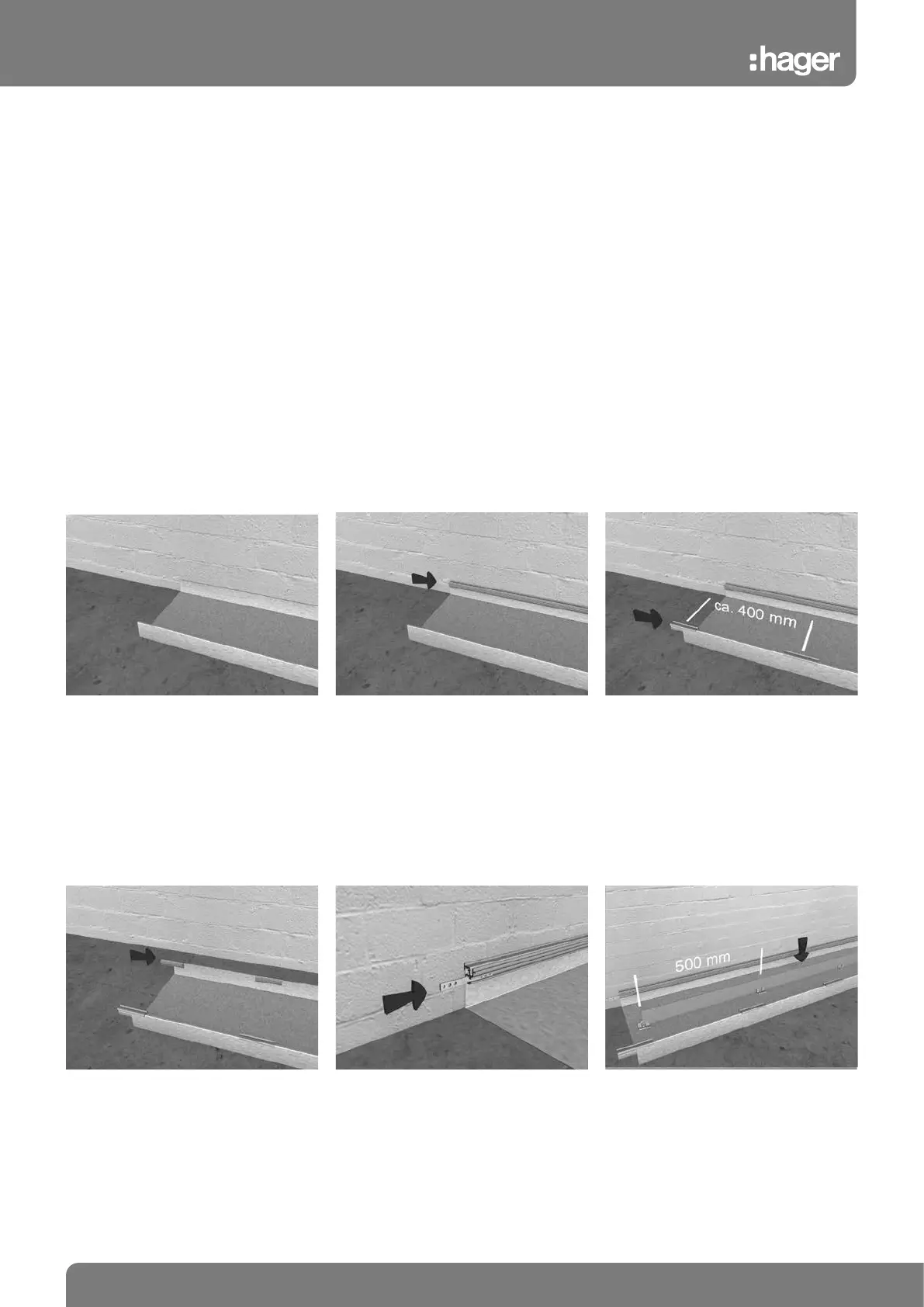

Inserting side profiles (long) Inserting side profiles (short)
Slide the (long) side profiles on the rear side
of the trunking lower part, orientated towards
the wall.
Slide the (short) side profiles on the front side
of the trunking lower part. Align the profile
pieces so that they later lie under under the
fixing holes of the covers, separation approx.
400 mm.
Profiles for trunking lower parts AKU...
In the case of trunking lower parts AKU…2
(for double-sided bevelled blank covers) the
(short) side profiles are also used on the rear
side, oriented towards the wall.
Inserting trunking connectors Trunking partition wall BKTWK
Fasten the (long) side profiles together using
trunking connectors.
Trunking partition wall BKTWK
Glue the trunking partition wall feet BKTWK
into the trunking the lower part, at a sepa-
ration of 500 mm. Insert the partition in the
feet.
