Installation instructions, Flush-floor trunking connection socket
General instructions:

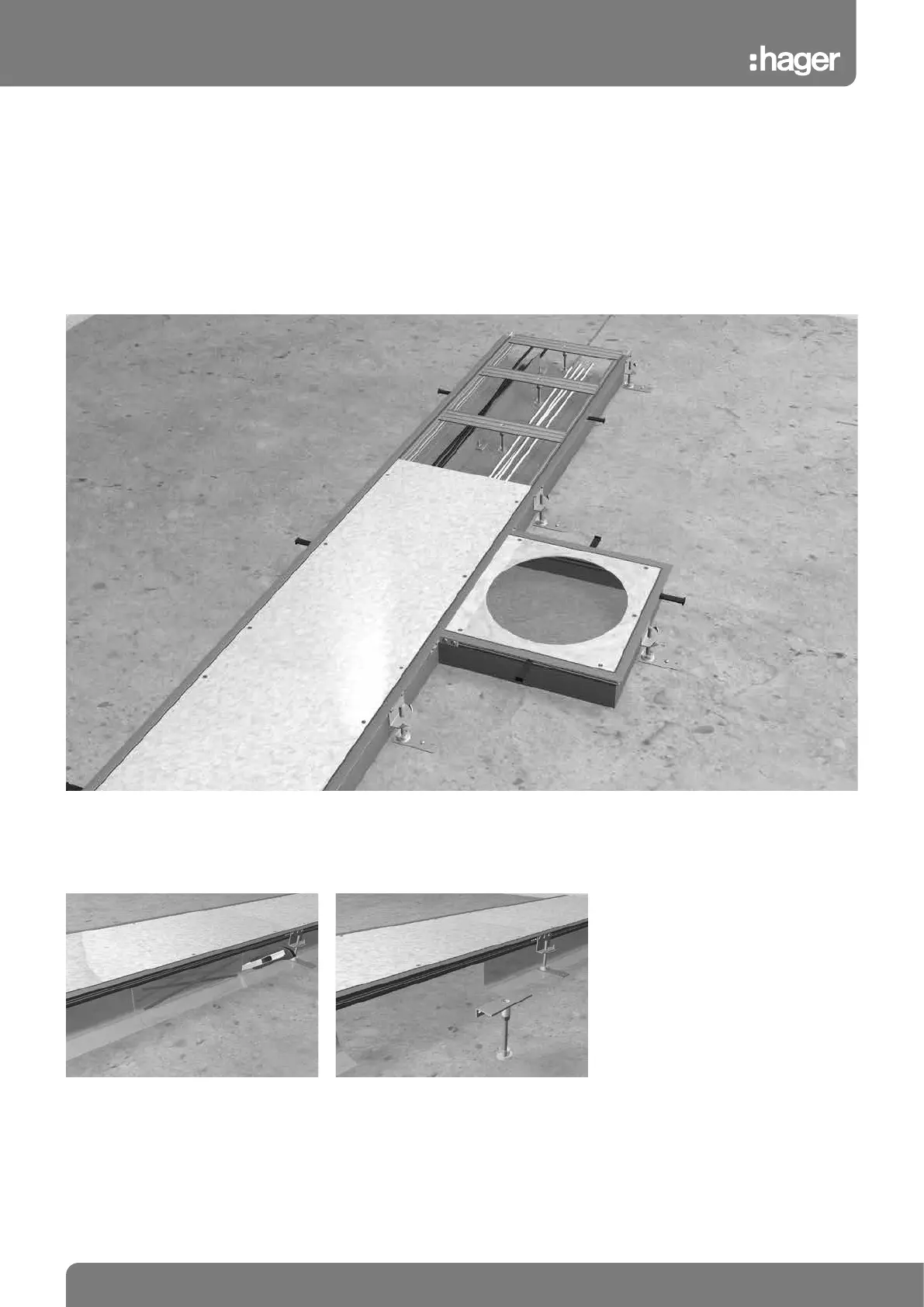

Lateral attachment
Connection socket BKSA can be installed to the side of trunking BKF / BKFD to allow installation of flush-floor or pedestal installation units
via an installation opening.
Larger cross-section
Sockets eliminate the reduction of the cross-section in the trunking immanent with direct installation of installation units in the trunking.
Accessories
Installation requires one levelling clamp of the existing trunking and one levelling set BKSAN.
Cut out the screed casing
Cut out the screed casing on the side so that
the connection socket can be attached.
Prepare the levelling set
Install nut BKZKM80 and insulating mount
BKZNSD0 to the set screw. Install set screw
into support bracket.
