90
Technical changes reserved
tehalit.BKB
electraplan.BK
Flush-floor trunking system
The screed-flush trunking system offers covers that can be opened
continuously along the full length of the trunking. The screed is in-
stalled flush to the top of the trunking. The height of the complete
screed-flush trunking system can be adjusted via a stepless adjust-
ment. Once fully installed, the trunking covers can be opened at any
time. This means that it is no problem at all to install cables or lines
at a later date. It is also possible to fit installation units or pedestal
boxes through the installation openings in the trunking covers. When
using trunking junction boxes, this system offers the advantage that
smaller trunking cross-sections can be chosen as the entire interior of
the trunking is available for lines to be inserted. Screed-flush trunking
is available for dry and wet-cleaned floors with a flexible foil casing or
with a sheet metal bottom. Factory-fitted footfall sound insulation and
the freedom to use any preferred floor covering means that this sys-
tem also meets the highest requirements in terms of flexibility.
This height-adjustable system is perfect for all applications in which
the final installation details are not yet clear or in which the highest
possible degree of flexibility is to be retained. Thanks to their width of
up to 600 mm, these trunkings are used where a high number of lines
is required. This screed-flush trunking is used in production halls with
bare floors as well as in office and administration buildings where
the floor coverings are glued onto the trunking covers. Due to its low
height, the trunking system can be installed in screeds with very low
profiles starting from 40 mm.
General description
Properties:
- Suitable for dry-cleaned floors
- Easy access to the lines
- Clean installation is possible, lines are protected
against dust and dirt

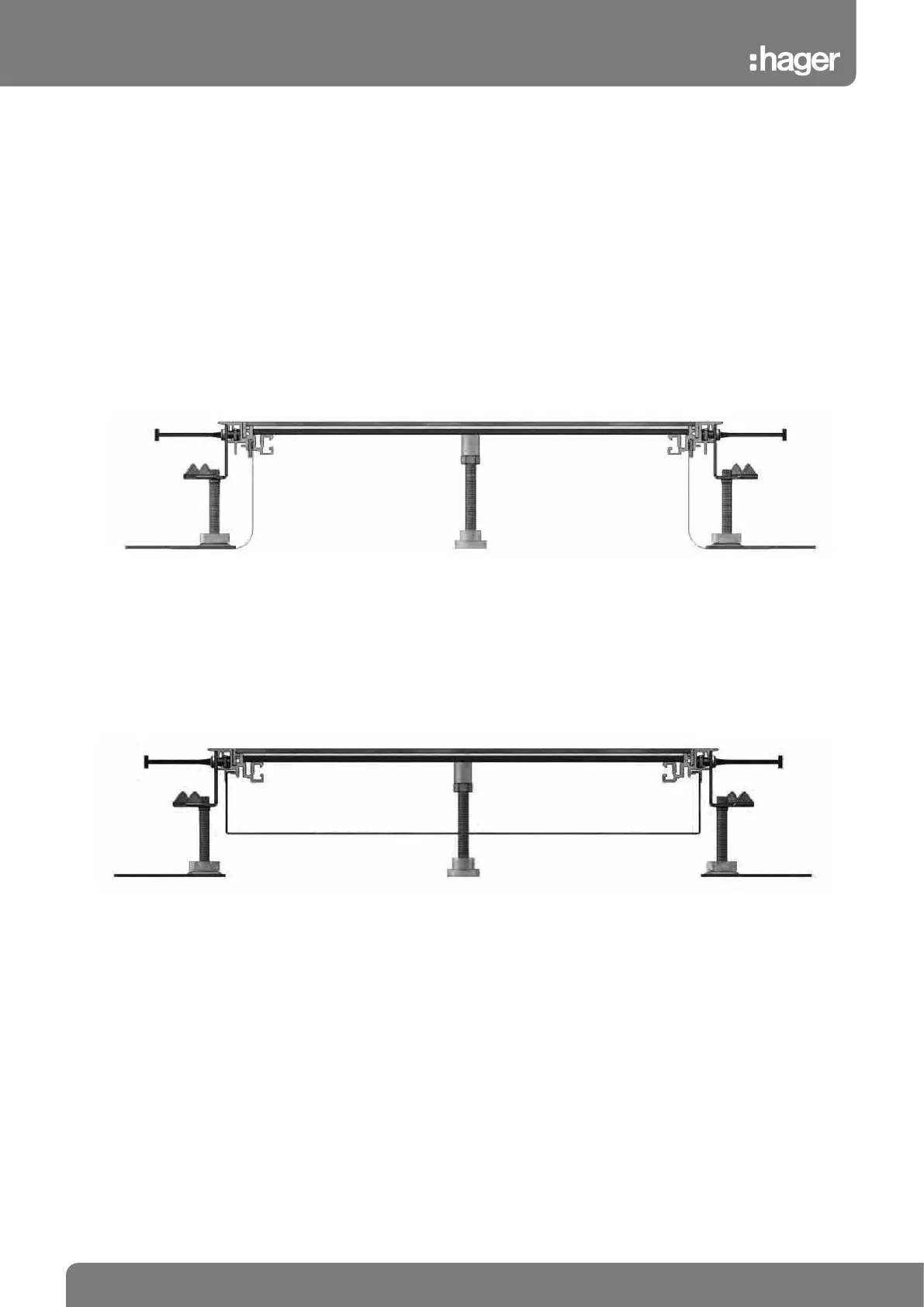

BKF trunking with foil casing for dry-cleaned floors
BKF trunking with trunking bottom for dry-cleaned floors
Properties:
- Suitable for dry-cleaned floors
- Easy and flexible installation
- Flexibility to other areas of installation,
e.g. transverse heating pipes or ducts
- Entire internal space is available to hold lines
