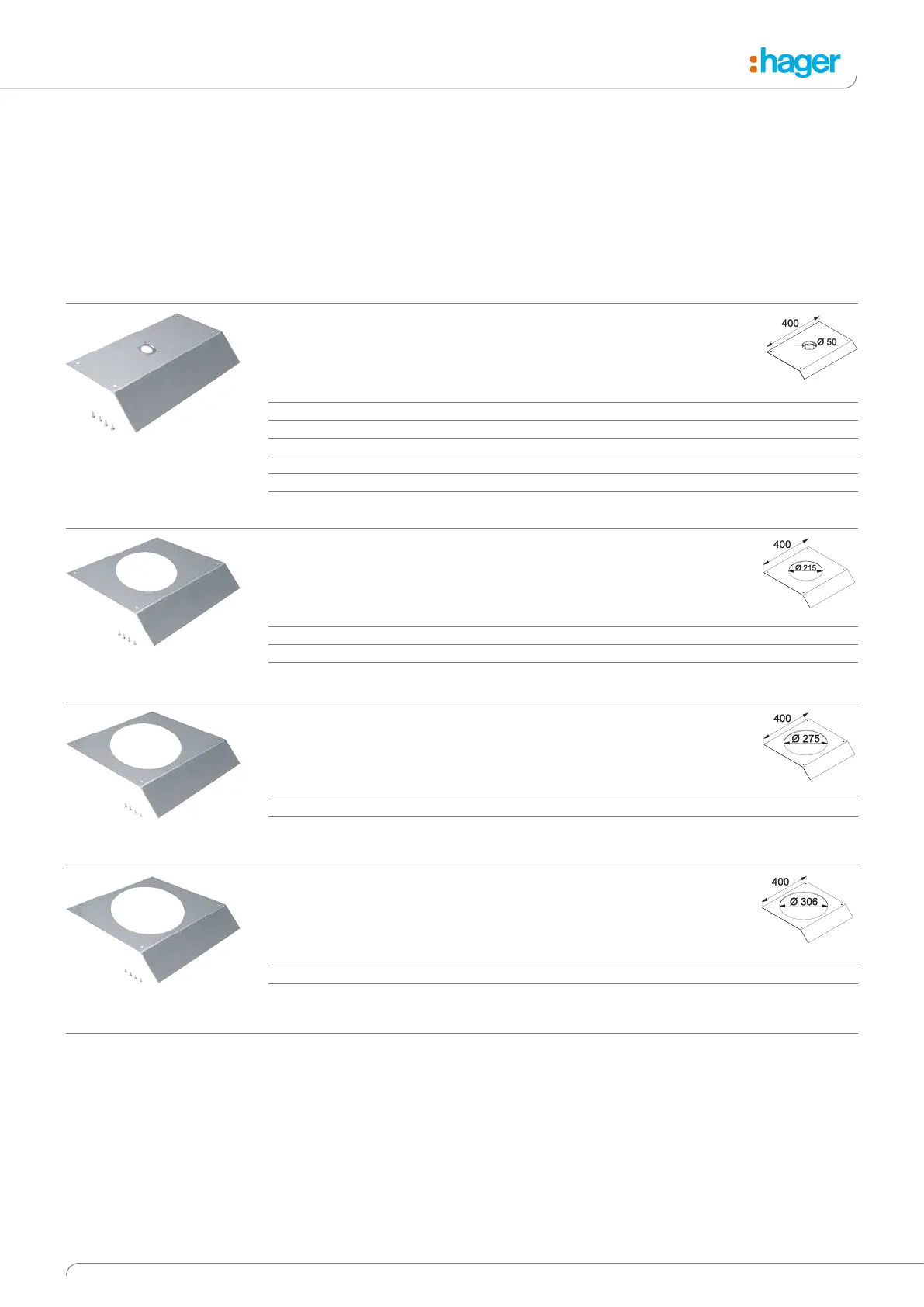

118 Technical changes reserved
electraplan.AK
On-the-floor
trunking
electraplan.AK
Covers with installation opening
- Covers with installation open-
ing for one-sided trunking,
height 70 mm
- Installation openings for units
flush to the floor and protruding
above the floor, as factory-fit-
ted blanking in the blank cover
- The opening is sealed with a
protection cover
- Other versions on request
AKM150050GBZ
Covers with installation opening GBZ
Designation PU Order no.
Cover GBZ round 50 L=400mm AK 150x70 1 AKM150050GBZ
Cover GBZ round 50 L=400mm AK 200x70 1 AKM200050GBZ
Cover GBZ round 50 L=400mm AK 250x70 1 AKM250050GBZ
Cover GBZ round 50 L=400mm AK 300x70 1 AKM300050GBZ
Cover GBZ round 50 L=400mm AK 350x70 1 AKM350050GBZ
Cover GBZ round 50 L=400mm AK 400x70 1 AKM400050GBZ
Properties:
- Round, diameter 50 mm
AKM300215R06
Cover with installation opening R06
Designation PU Order no.
Cover R06 round 215 L=400mm AK 300x70 1 AKM300215R06
Cover R06 round 215 L=400mm AK 350x70 1 AKM350215R06
Cover R06 round 215 L=400mm AK 400x70 1 AKM400215R06
Properties:
- Round, diameter 215 mm
AKM350275R10
Cover with installation opening R10
Designation PU Order no.
Cover R10 round 275 L=400mm AK 350x70 1 AKM350275R10
Cover R10 round 275 L=400mm AK 400x70 1 AKM400275R10
Properties:
- Round, diameter 275 mm
AKM350306R12
Cover with installation opening R12
Designation PU Order no.
Cover R12 round 306 L=400mm AK 350x70 1 AKM350306R12
Cover R12 round 306 L=400mm AK 400x70 1 AKM400306R12
Properties:
- Round, diameter 306 mm
Note
- The length of the cover with in-
stallation opening is 400 mm
- If required, order 400 mm
length blank covers separately
