36
GYSFLASH 108.12 / 148.12 / 158.12 CNT FV
EN
36

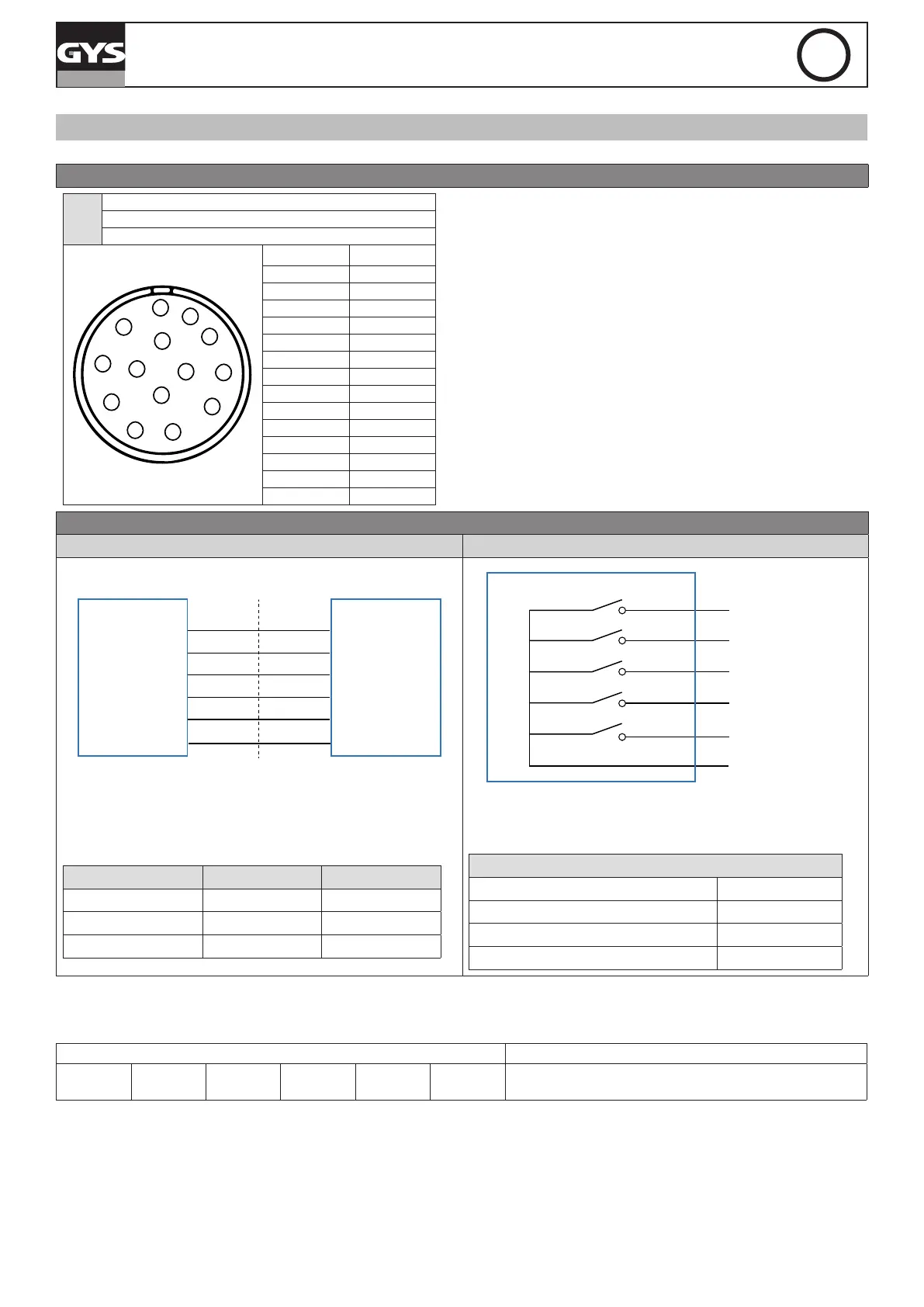

AUXILIARY CONNECTIVITY
Your Gysash is tted with an auxiliary connector for operating it remotely. 5 control inputs and 5 control outputs are available.
Connector Pinout
MS-A series from Amphenol
Receptacle: MS 3102 S 22-19
Plug: MS 3106 P 22-19
A
B
C
D
E
F
L
M
N
P
G
H
J
K
Pin n° Description
A Input 5
B Input 4
C Input 3
D Input 2
E Input 1
F Output 5
G Output 4
H Output 3
J Output 2
K Output 1
L COM
M CAN N
N GND
P CAN P
Electrical characteristics
Inputs Output
PLC
GND is the ground reference for inputs. When using PLC, this
potential must be connected to 0V-GND.
Characteristics MIN MAX
Signal OFF “0” -0.3 V 2.0 V
Signal ON “1” 3.0 V 30.0 V
Input Impedance 8kΩ 15kΩ
COM is the common potential for output relays and is potential-
free. When using PLC, COM should be connected to +24VDC.
Contacts Ratings
Maximum Switching Power 30W, 62.5VA
Maximum Switching Voltage 60 VDC, 60 VAC
Maximum Switching Current 1 A
Maximum Carrying Current 2 A
Control via the 5 auxiliary inputs:
The Gysash can be controlled by acting on 5 inputs, enabling 32 input states from E00 to E31 to be dened.
Auxiliary input truth table
Etats
d’entrée
Input_5
(A)
Input_4
(B)
Input_3
(C)
Input_2
(D)
Input_1
(E)
Original Gysash input conguration
