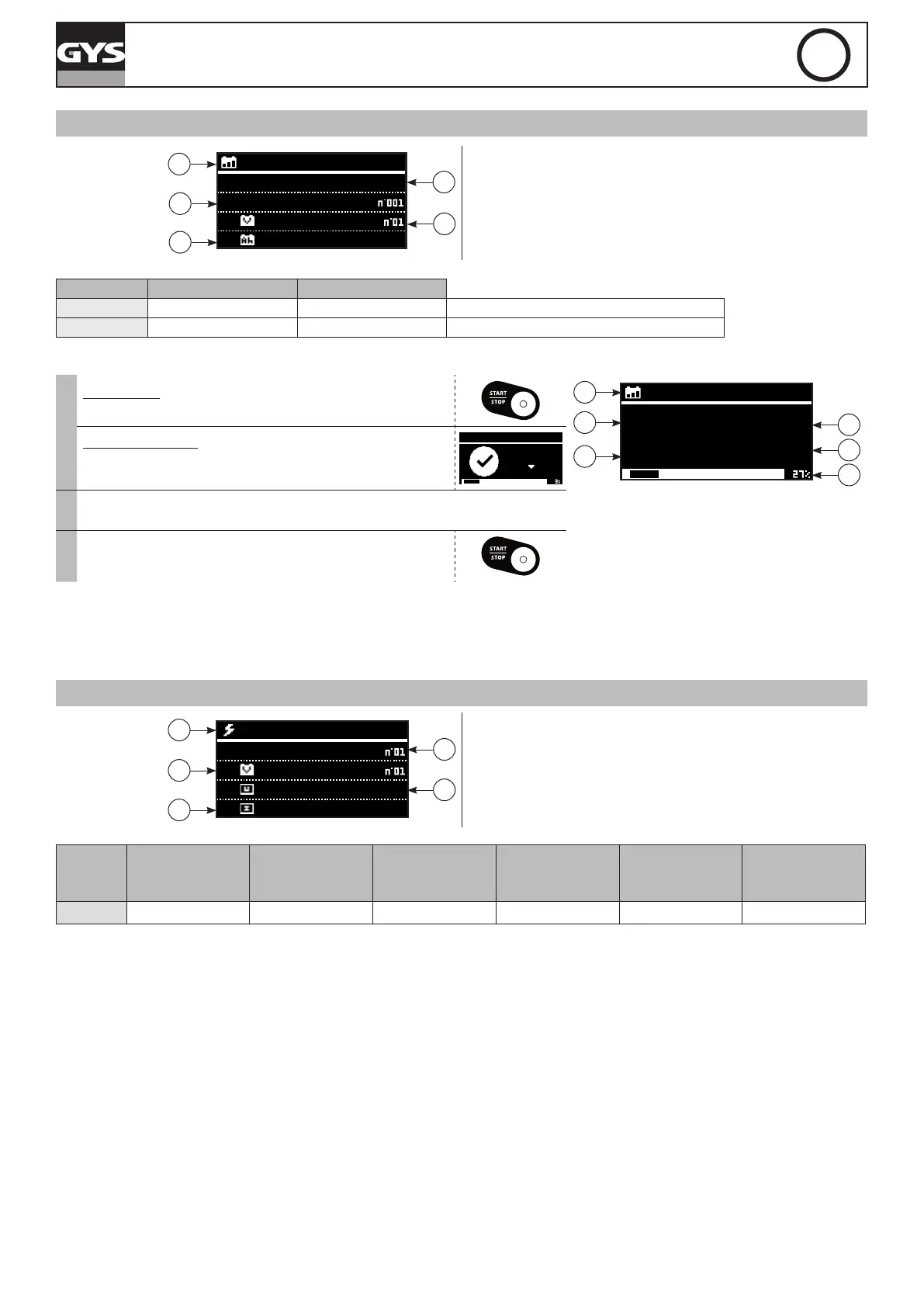

GYSFLASH 108.12 / 148.12 / 158.12 CNT FV
EN
25
CHARGE MODE
1
3
5
2
4
Charge
12 V
lead
- acid
Pb
- CHARGE
100
Ah
1 - Mode
2 - Charging group
3 - Charging curve
4 - Nominal battery voltage
5 - Nominal battery capacity (curve permitting)
Prole Charging voltage Maintenance voltage
Lead-acid
2.47 V/cell 2.2 V/cell Lead batteries.
Lithium
3.50 V/cell 3.45 V/cell Lithium batteries (LiFePO4)
Starting the charge:
1
Manual start
To start the charge, press the START/STOP button.
Pb - CHARGE
13.5
V
113
A
01:27:35 105.8
Ah
2
1
4
3
5
6
1- Applied charging curve
2- Battery voltage
3- Current supplied by the charger
4- Elapsed time
5- Amp-hours delivered
6- Charge cycle progress
Automatic start-up
If the AUTO-DETECT function is active, charging will start
automatically after 3 seconds if a battery is present.
Auto - Detect
12.
5
v
Charge
2
During charging, your GYSFLASH will indicate the percentage of progress of
the charging cycle, voltage, current, amp-hours delivered, and time elapsed.
3 Press the START/STOP button to stop the charge.
Precautions:
When charging a vehicle, it is advisable to reduce the vehicle’s power consumption to a minimum (turn o the lights, switch o the
ignition, close the doors, etc.) so as not to disrupt the charging process.
Precaution: Check the electrolyte level for open batteries. If necessary, adjust levels before charging.
SUPPLY MODE
2
4
3
1
5
Supply
14.2 V
12 V
EPS
120
A
1- Mode
2- Cycle Supply
3- Nominal voltage (mode permitting)
4- Supply voltage
5- Supply current
Mode
«Contact detection»
function
«Battery detection»
function
«Integrated
charge» function
Abnormal
undervoltage
protection
Adjustment of
the voltage to be
regulated
Adjustment
of the maximum
current
EPS
14.2 V 150 A
• «Contact detection» function
If this function is available, the Gysash automatically detects the presence of an output contact (for example: vehicle with or without
battery) and starts to supply power. In this situation, a contact must be present for the mode to work.
• «Battery detection» function
If this function is available, the Gysash automatically detects the presence of a battery and starts to supply power. In this situation,
a battery is required for the mode to work.
• «Integrated charge» function
If this function is available, the supply mode incorporates an automatic charging algorithm adapted to all types of battery (lead and
lithium), to ensure that the battery is charged to the optimum level.. This function is still fully compatible when consumers are present
on the battery.
• Abnormal undervoltage protection
If the function is available, this feature prevents the risk of short-circuiting or damaging the battery. The unit will stop automatically
if the voltage is abnormally low.
