BMW C7502655 - GYSPOT PTI GENIUS

The welding conditions must be reviewed at the start of each new job. «Test» weld spots must be carried out on metal panels

or sheets similar to the new job being undertaken. Carry our two spot weld with appropriate space in between, in line with the

requirement of the job. Test the strength of the second weld. The test is successful if, when pulling the spot out, the panel breaks

and the centre is extracted. The centre must have a minimum diameter in line with the specications of the make of the vehicle.

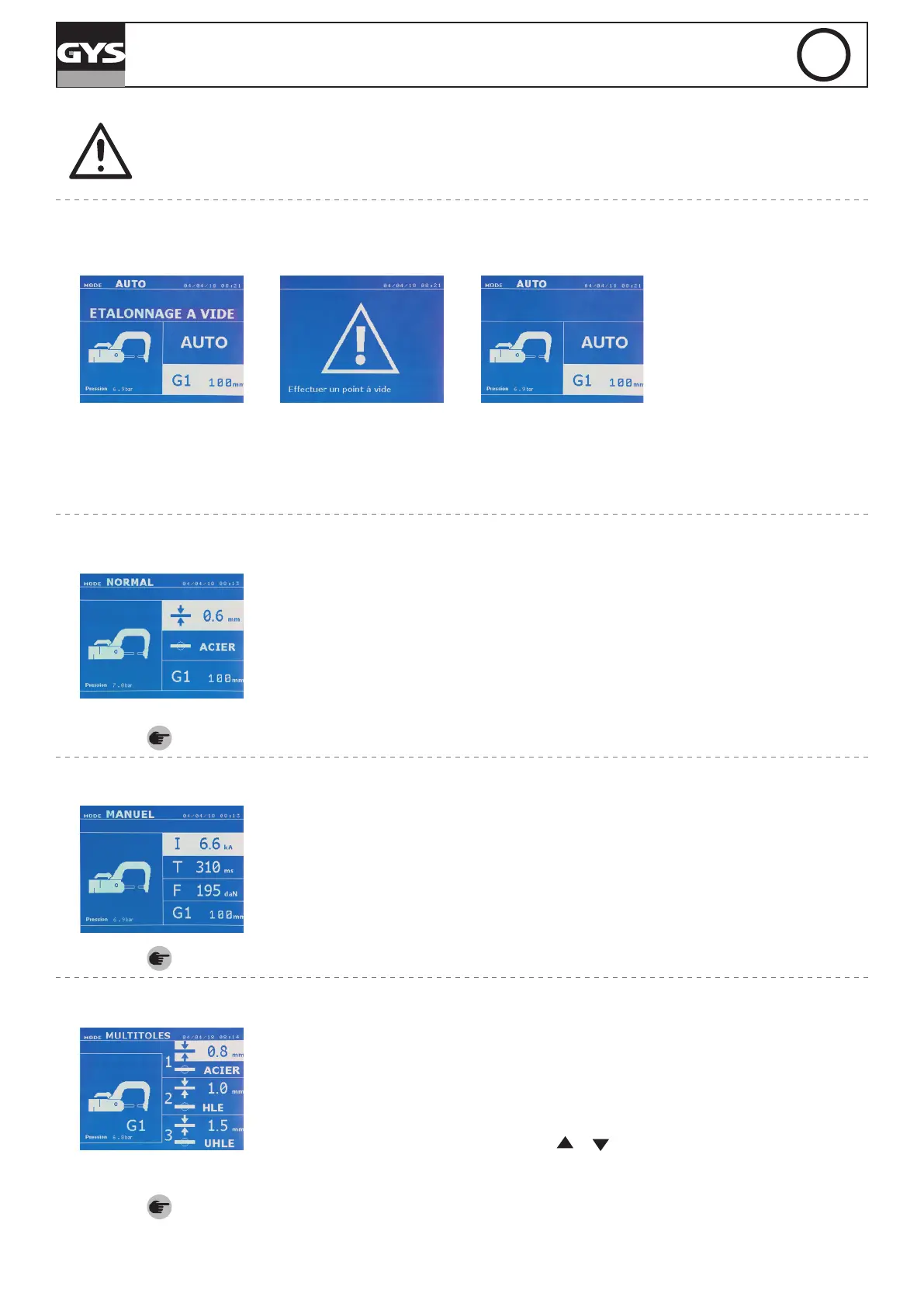

AUTO mode

This mode is displayed by default when the machine starts.

This mode is used to weld sheets/panels without having to specify any settings on the screen. The machine

sets the appropriate settings automatically.

In order to use this mode, do a blank spot weld (without any sheet/panel between the electrodes),as prompted on the display. Push the button (FIG 2

-11). The message «Do a spot without a load» is displayed on the screen. Push the button again to calibrate. Once the calibration is done, the machine

shows all the settings to zero, and is ready to weld. Close the clamp on the area to weld and weld automatically, without entering any parameters in

the machine. Every 30 spots, a new calibration will be required.

This mode can be used when using all arms except the G7.

NORMAL mode

This mode determines the welding settings based on the thickness of the sheets/panels and the type of

steel.

The settings that need to be set when using this mode are:

- Thickness of the sheets/panels, with a range between 0.60 mm and 3.00 mm.

When 2 sheets/panels are being welded together, enter the thickness of the thinnest sheet.

When 3 sheets/panels are welded together, use the total cumulated thickness and divide by 2.

- Type of steel (coated steel, HLE/THLE steel, UHLE steel, bore steel (BORON)).

When welding a mix of dierent types of steel, select the strongest one.

- Reference of the arm used.

Push the button for 2 seconds to return to the AUTO mode.

MANUAL mode

This mode is used to select the parameters of the spots by following the instructions of a repair book.

The parameters to set in this mode are:

- Current

- Duration

- Pressure

- Reference of the arm used.

Push the button for 2 seconds to return to the AUTO mode.

MULTI mode

This mode is used to set precisely the thickness and type of steel for each sheet/panel .

The rst element (thickness of sheet 1) is selected. The keys up and down are used to select the setting that

needs to be adjusted, where the keys right and left are used to increase or decrease the value. Highlight the

setting that needs to be adjusted.

The settings that need to be set when using this mode are:

- Thickness of the sheets/panels, with a range between 0.60 mm and 2.50 mm.

- Type of steel (coated steel, HLE/THLE steel, UHLE steel, bore steel (BORON)).

When welding a mix of dierent types of steel, select the strongest one.

- To activate the sheet/panel 3, press the scroll keys ( or ) to highlight sheet/panel 3. Then use they

keys + and - to select the thickness of the sheets/panels.

- Reference of the arm used.

Push the button for 2 seconds to return to the AUTO mode.
