44

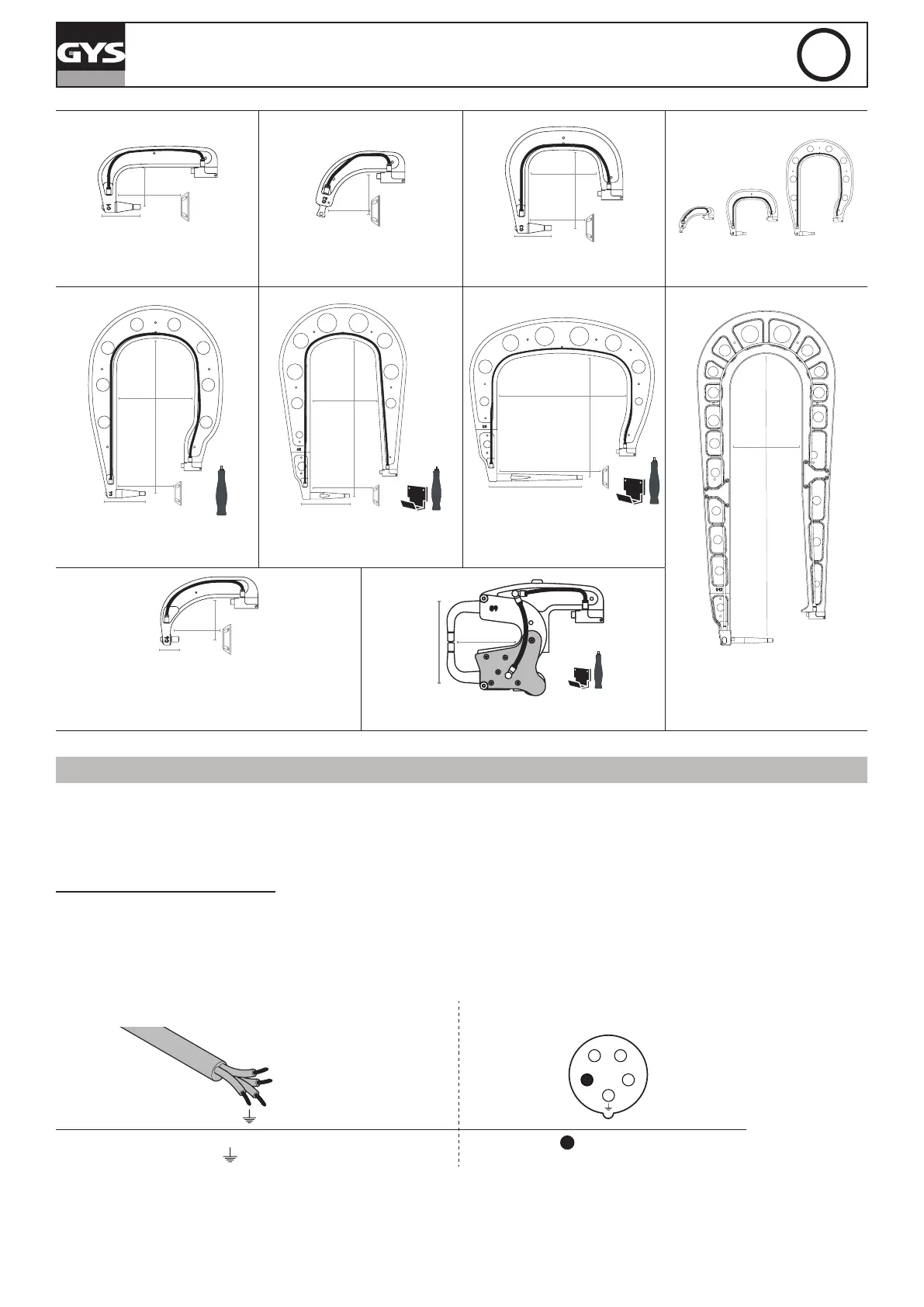

BMW C7502655 - GYSPOT PTI GENIUS
EN
100
180
96
100
93
205
180
96
154
G1 (550 daN) - ref. 022768 INCLUS G2 (300 daN) - ref. 022775 G3 (550 daN) - ref. 022782 G2 + G3 + G4 - ref. 022898
500
250
128
180
600
250
177
235
430
450
324
384
1000
250
G4 (550 daN) - ref. 022799
G5 (550 daN) (6.25 kg) - ref. 022805
G10 (400 daN) (5 kg) - ref. 067165
G8 (550 daN) - ref. 022836
117
100
44
140
115
G6 (550 daN) - ref. 022812 G9 + X1 (550 daN) - ref. 022881 - X1 (550 daN) - ref. 050501 G12 (550 daN) - ref. 075238
POWER SUPPLY
• This material is designed to be powered by a 3-phase 200V/240V power supply only (50-60 Hz) with four wires with a neutral one connected to the
earth and tted with a ≥ 50 A D-rated circuit breaker (or aM type fuse).
The permanent current absorbed (l1p or ILp) displayed in the section «technical specications» of this manual relates to use at maximum power.
Check that the power supply and its protection (fuse and/or circuit breaker) are compatible with the current needed by the machine. In some
countries, it may be necessary to change the plug to allow the use at maximum settings.
• Power supply recommendations :
In order to limit the voltage drop in the power supply line and to avoid any risk of disconnection of the protection, it is imperative to connect the
equipment to a «dedicated» socket. This plug must be connected to the electrical panel and only power this equipment.
Check the cross-section of the cable reaching the connection socket: 4 x 16 mm² (6 AWG). If the power line from the switchboard is longer than 10
m, use a conductor cross-section of 25 mm² (4 AWG). If you are using an extension cable, use a conductor cross-section of 16 mm² (6 AWG) and 25
mm² ( 4 AWG) if the length of the line + extension > 10 m.
Power supply cable Plug 230 V / 3 phases + earth
L1
L2
L3
L1
L2
L3
L1 : Phase 1
L2 : Phase 2
L3 : Phase 3
: Earth (Green/Yellow or green)
Neutral (not used)
• The device turns into protection mode if the power supply tension is below or above the 15% or in the case of no phase. To indicate this default,
the screen displays an error code.
• In order to ensure optimal functioning of the equipment, check that the compressed air circuit can supply 8 bar (116 Psi) and then connect the air
supply to the back of the machine. The machine must not be used on an air network with a pressure under 4 bar (58 Psi) or over 10 bar (145 Psi).
