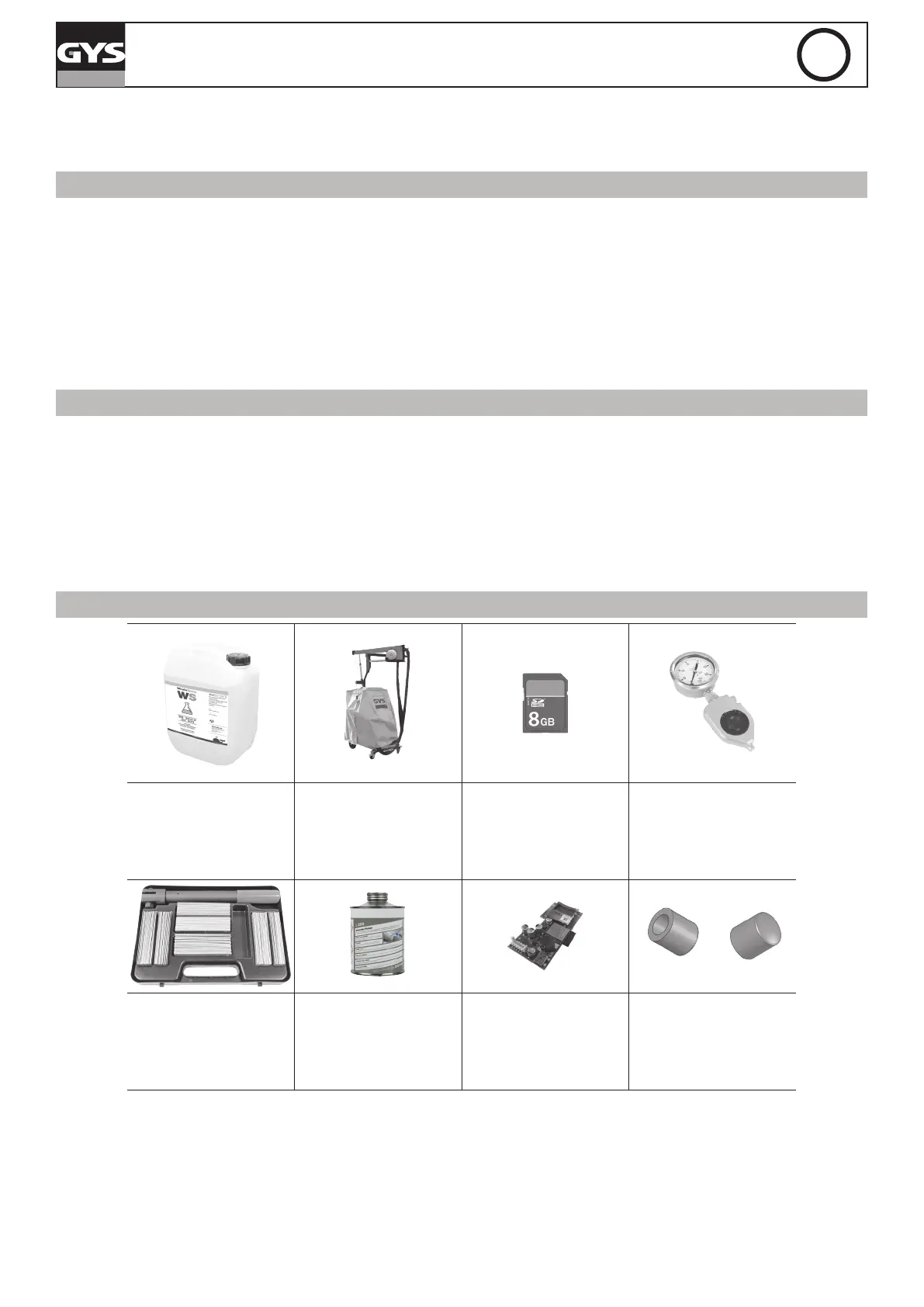

BMW C7502655 - GYSPOT PTI GENIUS
EN
INSTALLATION – PRODUCT OPERATION
Only qualied personnel authorised by the manufacturer should perform the installation of the welding equipment. During the installation, the
operator must ensure that the machine is disconnected from the mains. Connecting generators in serial or in parallel is forbidden.
EQUIPMENT DESCRIPTION (FIG-1)
This machine is designed to carry out the car body repair operations described below :
- spot welding on sheets using a pneumatic clamp,
- welding of sheets using a gun,
- welding of nails, rivets, washers, studs, mouldings,
- repair of bumps and impacts (hail impacts with the pliers option).
1- SD card reader 6- Power-on circuit breaker
2- Interface (MMI) 7- Power cord
3- Cooling unit 8- Filling cap
4- Overhanging arm locking support 9- Cooling liquid gauge
5- Regulator
DESCRIPTION OF THE G CLAMP (FIG-2)
1- Arm locking/unlocking lever 7- Locking latch
2- Interchangeable arm 8- Gyro lock/unlock mechanism
3- Gyroscope 9- Over-opening button
4- Pneumatic body 10- Spot welding button
5- Over-opening electrode 11- Remote settings button
6- Side handle 12- Stem height control lever
Clamp opening : push the button (FIG 2 - 10), the opening of the clamp can be released. The electrode retracts in the clamp leaving a space of
80 mm to access the welding area instead of 20 mm when not in use.
ACCESSORIES AND OPTIONS
Coolant Protective cover
SD card including automatic
programs INCLUDED
Pressure sensor
5 l : 062511
10 l : 052246
077126 050914 052314
Welding test case
Anti-corrosion
welding primer 500ml
Kit renove wi
BMW - 6 CAPS TYPE A-32 -
Ø 16mm
050433 076822 070691 085664
