GPE-1323/GPE-1205 User Manual
36
Series Sense
Connection

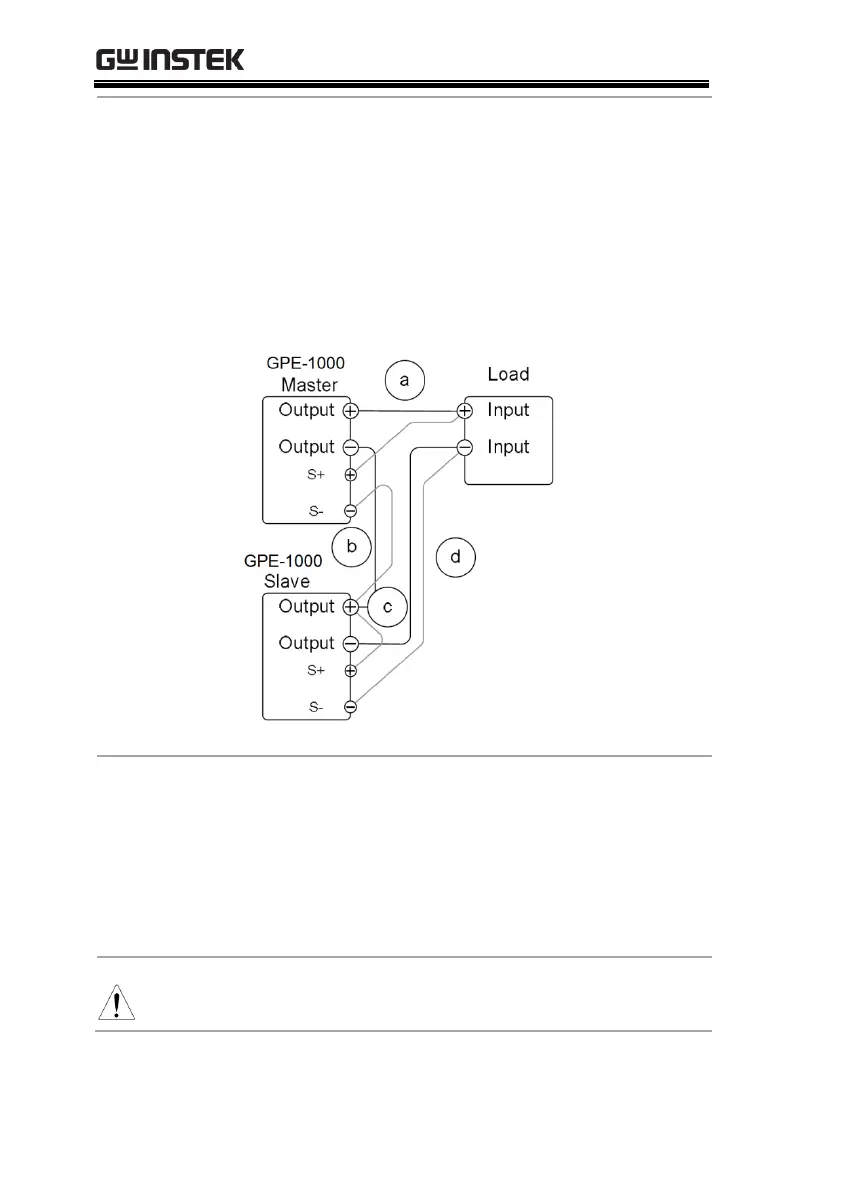

For remote sense connections, connect the sense
terminals as shown below:
a. Connect the Master S+ terminal to the positive
potential of the load.
b. Connect the Master S- terminal to the positive
output terminal of the slave unit.
c. Connect the slave S+ terminal to the positive
terminal of the slave unit.
d. Connect the slave S- terminal to negative
terminal of the load.
Steps
1. Ensure the power is off on both power supplies.
2. Connect the master and slave unit in series as
shown above to either increase the voltage
output or to create a positive and negative
output. Remember that how the units are
grounded depends on the configuration of the
series connection.
Note
Ensure load cables have sufficient current capacity.
