(1) CURSOURCE Setting Value
(2) MAX_ILLUMINANCE Settings
Setting Value = Ambient Level (by LUX) / 100
Ex) Desired Ambient is 10000 Lux, Setting is 100 (= 10000 / 100)
(3) MIN_ILLUMINACE Settings
Setting Value = Ambient Level (by LUX) / 10
Ex) Desired Ambient is 200 Lux, Setting is 20 (= 200 / 10)
(4) DIM_LEVEL Settings
Dimming is controlled by Brightness Settings.
(5) TEMPERATURE Settings
Setting Value = Desired temperture (by Celsius) x 2 + 60
Ex) Desired temperature is 60℃, Setting is 180 (= 60 x 2 + 60)
(6) TEMP_HYSTERESIS Settings
Setting Value = Desired Hysteresis(by Celsius) x 2
Ex) Desired Hysteresis is 2℃, Setting is 4 (= 2 x 2)

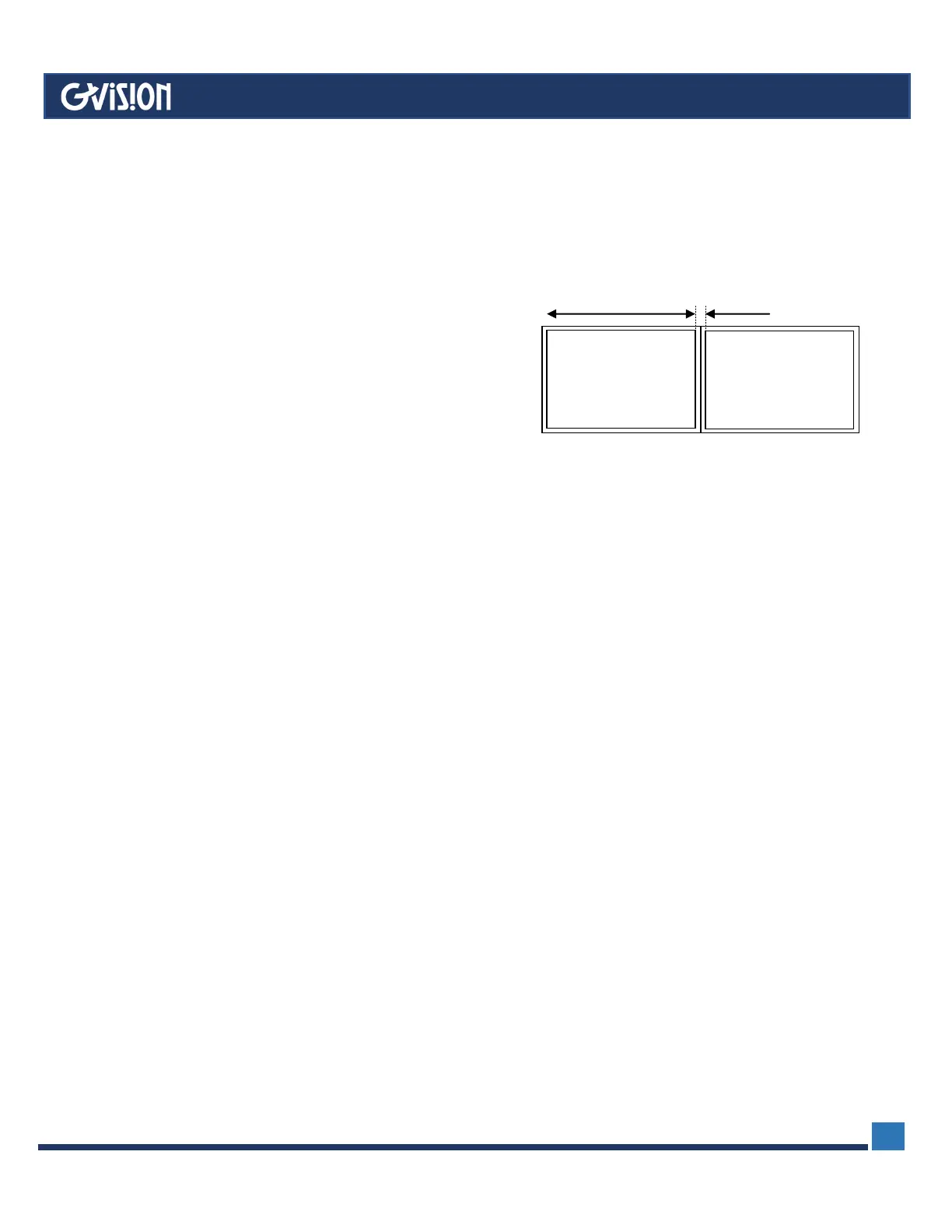

Active Gap
(8) Read only Command
(9) Gap Settings
Setting Value =(int) (1000 * Gap / Active)
(10) VIDEOWALL:
Send a set command of the Video wall settings(Xmax,Ymax, XPos, YPos) to several monitors at once.
Format : 0xFn(Start : n = Send Bytes) + 0x88 + 0x00(Set ID: All) + 0xFE + 0xE5(Param) + 0xXX(Target SetID) + 0xXY(X: XMax
Y:YMAX) + 0xxy(x: XPos, y:YPos) …..
START: Total Sending Bytes. Ex) 0xFF + 0x05 =Send 20Bytes
SET ID: must be 0x00(All)
Ex) Target Set ID: 0x01, Xmax:2, Ymax:2, Xpos:0, Ypos:0
Target Set ID: 0x02, Xmax:2, Ymax:2, Xpos:1, Ypos:0
Target Set ID: 0x03, Xmax:2, Ymax:2, Xpos:0, Ypos:1
Target Set ID: 0x04, Xmax:2, Ymax:2, Xpos:1, Ypos1
0xFF(Start) + 0x01(16 Byte) + 0x88(Set) + 0x00(All: Fixed) + 0xFE + 0xE5(Param)
+ 0x01(Target SetID:) + 0x22(XMax:2, YMAX:2) + 0x00( XPos:0, YPos:0)
+ 0x02(Target SetID) + 0x22(XMax:2, YMAX:2) + 0x10( XPos:1, YPos:0)
+ 0x03(Target SetID) + 0x22(XMax:2, YMAX:2) + 0x01( XPos:0, YPos:1)
+ 0x04(Target SetID) + 0x22(XMax:2, YMAX:2) + 0x11( XPos:1, YPos:1)
(11) VIDEOWALL GAP:
Send a set command of the Video wall Gap settings(XGap,YGap) to several monitors at once.
Format : 0xFn(Start : n = Send Bytes) + 0x88 + 0x00(Set ID: All) + 0xFE + 0xE6(Param) + 0xXX(Target SetID) + 0xXX(XGAP)
+ 0xXX(YGAP)
START: Total Sending Bytes. Ex) 0xFF + 0x0A =Send 25Bytes
SET ID: must be 0x00(All)
Ex) Target Set ID: 0x01, XGAP:2, YGAP:2,
Target Set ID: 0x02, XGAP:3 YGAP:3
Target Set ID: 0x03, XGAP:3, YGAP:3
Target Set ID: 0x04, XGAP:2, YGAP:2
0xFF(Start) + 0x01(16 Byte) + 0x88(Set) + 0x00(All: Fixed) + 0xFE + 0xE6(Param)
+ 0x01(Target SetID:) + 0x02(XGAP:2) + 0x00( YGAP:2)
+ 0x02(Target SetID) + 0x03(XGAP:3) + 0x00( YGAP:3)
+ 0x03(Target SetID) + 0x03(XGAP:3) + 0x00( YGAP:3)
+ 0x04(Target SetID) + 0x02(XGAP:2) + 0x00( YGAP:2)
