1
2
3

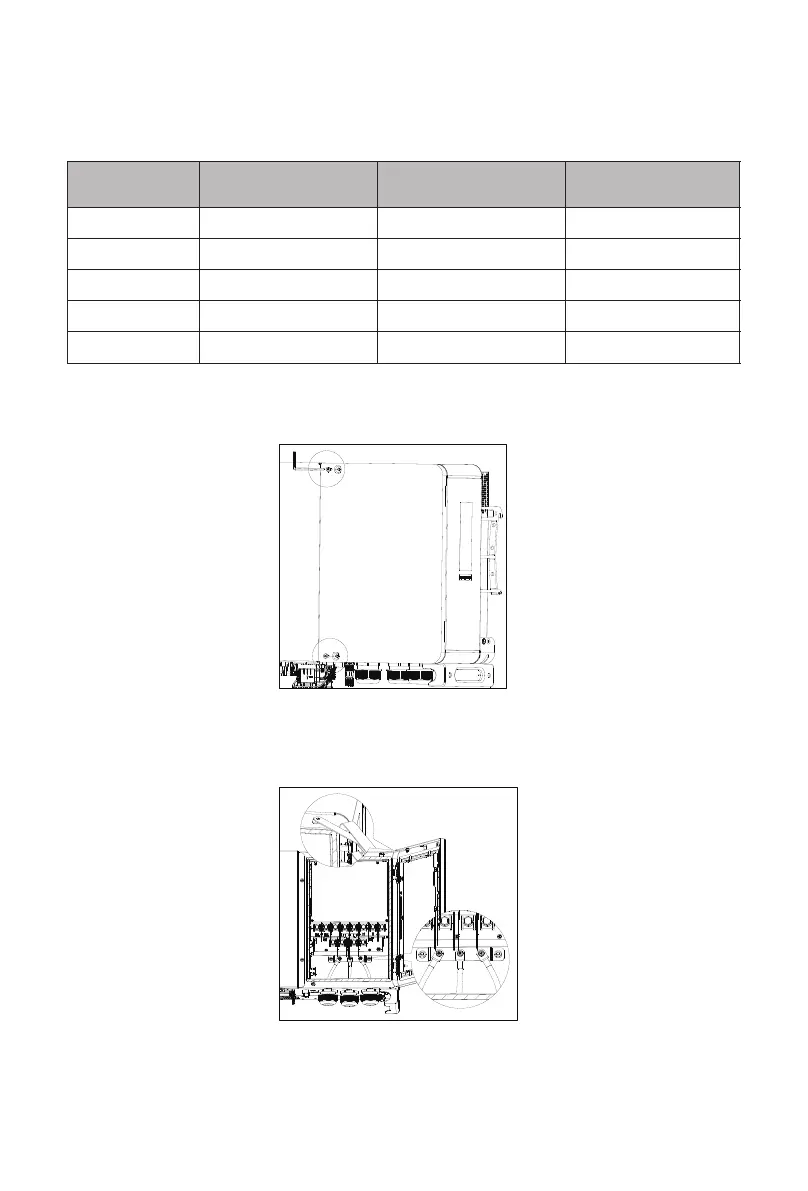

1. Open the right cover plate. The position of the cover is shown in Fig 6.9;
AC side connection steps:
Fig 6.9
1. Connect a ground cable to the copper grounding bar. Fig 6.10 shows the
position of the grounding bar inside the right cover plate;
Fig 6.10
LOAD Terminal
GRID Terminal
GEN Terminal
3. Connect the main power cables according to the label. Fig 6.9 shows the
position of the label and the AC terminals.
Fig 6.11 AC terminal wiring position and diagram
NOTE:
1. Determine the stripped length based on the wiring terminal specifications
(recommended length: 22-26 mm). Crimp the cable and terminal using a
crimper as shown below. Loosen the PG type cable gland and route the cables
through it. Then connect the cables to the corresponding terminals. Secure the
cables by tightening the screws.
24±2mm
4
heating shrink
tubing
Fig 6.12 Crimping a cable
2. Cold-pressed terminals are delivered with the package. Select terminals based
on the cable specifications;
3. After connecting the cables, apply fireproof mud to the waterproof silicone mat
at the inlet side. Lock the cover of the AC junction box after the fireproof mud is
applied. See Fig 6.13 below.
fireproof mud
Fig 6.13 Applying fireproof mud
Recommended power cable specifications:
1.Recommended AC power cable specifications for WIT 29.9-50K-XHU models.
Device type
GRID Recommended
cable specification
LOAD Recommended
cable specification
GEN Recommended
cable specification
WIT 29.9K-XHU
2
35mm
2
25mm
2
35mm
WIT 30K-XHU
2
35mm
2
25mm
2
35mm
WIT 36K-XHU
2
35mm
2
25mm
2
35mm
WIT 40K-XHU
2
50mm
2
35mm
2
50mm
WIT 50K-XHU
2
70mm
2
35mm
2
70mm
3433
