35
Ttable 6.4 Battery communication terminal description
Definition of battery communication terminal
Number
Definition of signal
Note
1
Wakeup+
Battery wake up signal
2
Wakeup-
3
RS485A3
The PCS communicates with the battery via
RS485
4
RS485B3
5
CANH
The PCS communicates with the battery via
CAN
6
CANL
7
CAN.GND
8
DI1
Battery shutdown input signal
9
DI2
10
NA
NA
11
NA
12
NA
13
NA
14
NA
15
NA
16
PE
Grounding

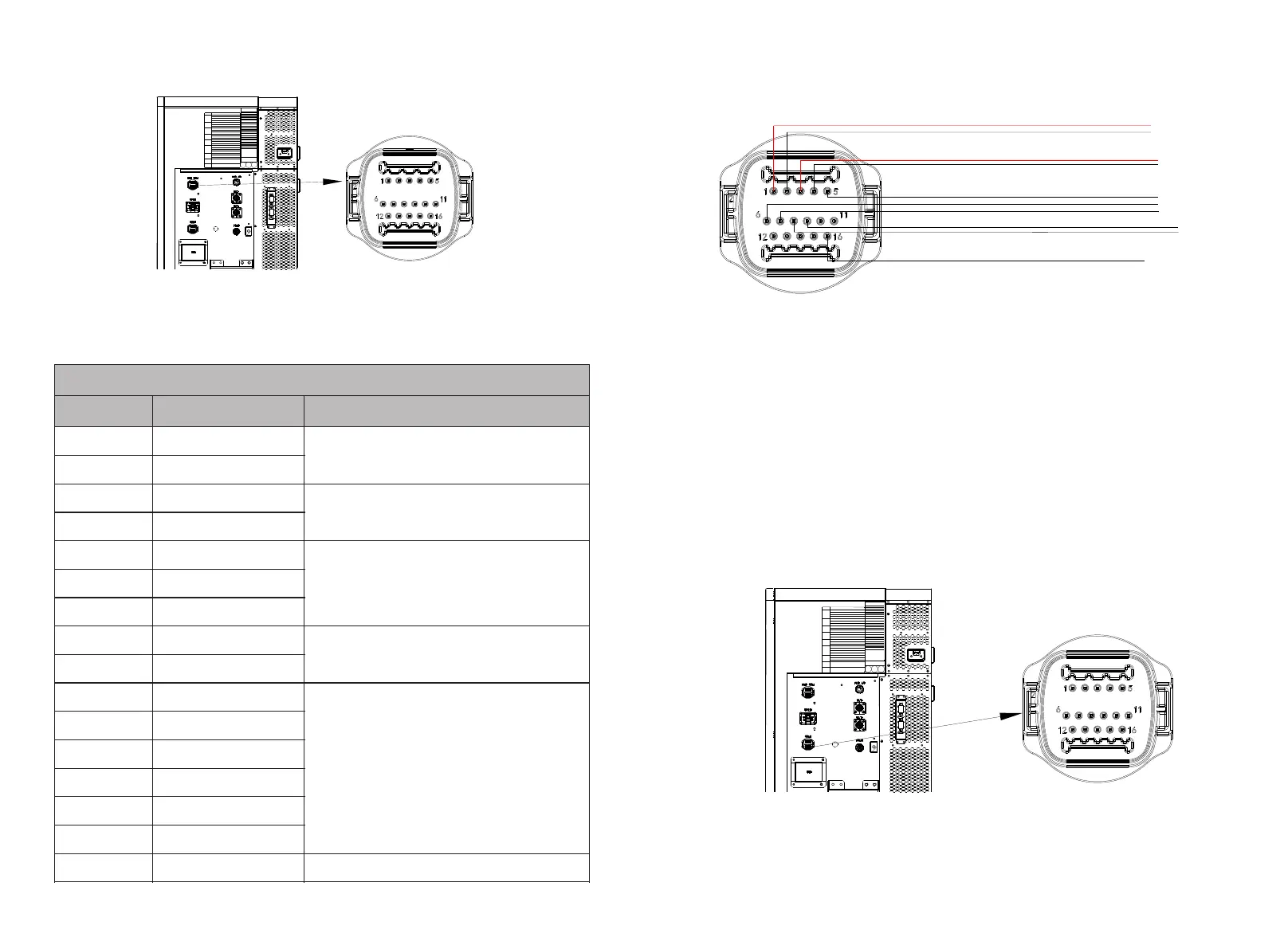

Fig 6.8 BMS-COM communication terminals
BMS-COM
Fig 6.9 BMS-COM communication connection
Wakeup+
Wakeup-
RS485A3
RS485B3
CANH
CANL
CAN.GND
DI2
DI1
PE
PCS
BMS-COM
6.5.2 External Communication connection
NOTE:
When connecting external devices, such as the PC, please use isolated communication
devices.
2. Remove the dustproof cover from the COM1 terminal and insert the 16-pin terminal
(the client side) to the corresponding position;
The external communication terminal of the WIT Inverter is a 16-pin connector. The
matching terminal is in the accessory kit. The connection procedure is as follows:
1. Connect the communication cable to the corresponding terminal as required. For
details, see Table 6.5;
Fig 6.10 External communication terminal
COM1
36
