5.4.8 Connecting the DRMS port

If the SPH inverter is commissioned in Europe, the DRMS port should be connected.

Please take the following steps to connect to the DRMs port:

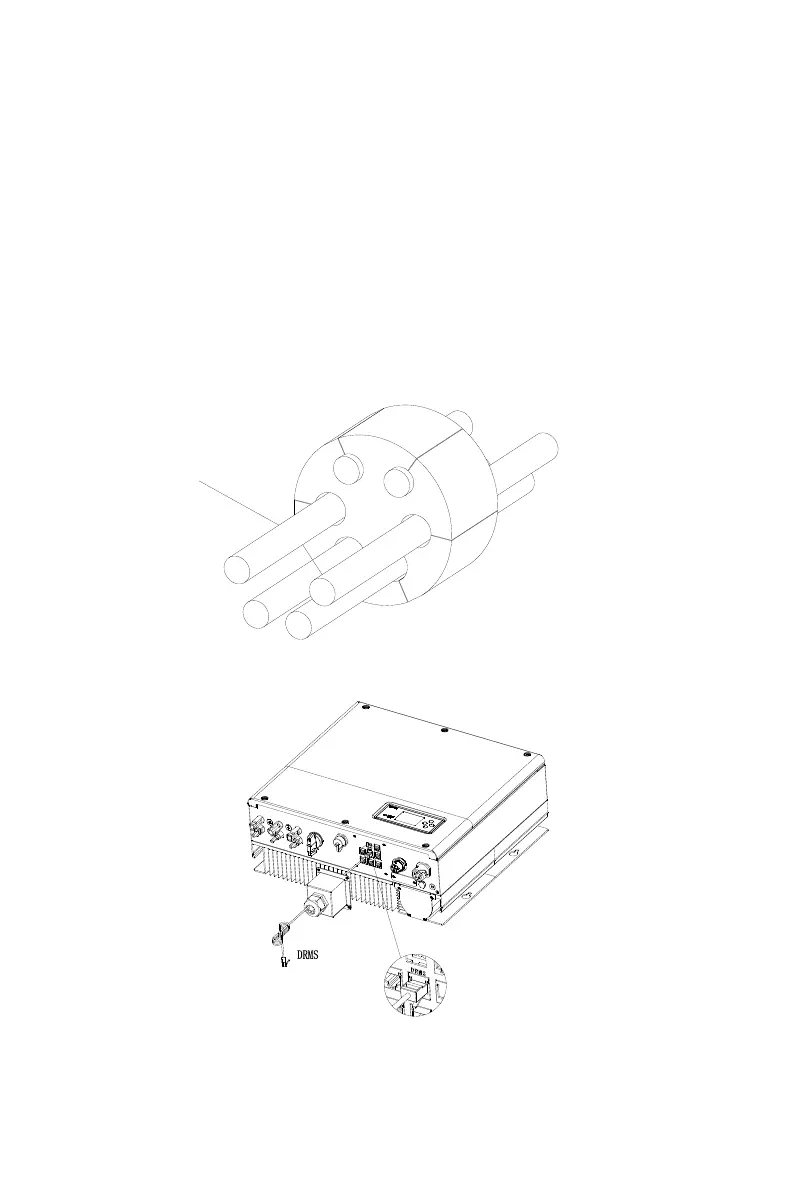

Step 5: Route the “DRMS” cable through an opening in the cable support sleeve.

Step 1: Unscrew the swivel nut from the cable gland.

Step 2: Thread the swivel nut over the “DRMS” cable.

Step 3: Press the cable support sleeve out of the cable gland.

Step 4: Remove the filler plug from the cable support sleeve.

Step 6: Thread the “DRMS” cable through the cable gland.

Step 8: If no other cables need to be installed, lock the waterproof cover to the inverter

with screws.

Step 9: Screw the swivel nut onto the waterproof cover.

Step 7: Insert the RJ45 plug of the network cable into the “DRMS” connector on the

inverter until it snaps into place.

DRMS

Figure 5.39

Figure 5.40

If the SPH is commissioned in Europe, the DRMS port should be connected.

Description

DRMs Power Control

DRM5

DRM6

30%

DRM7

60%

DRM8

100%

Ref/Gen

COM/DRM0

standby

* Method of asserting Demand Response Mode

1. The DRMS function can only be used in the Load First mode.

2. For the following safety standards, only DRM5 is supported:

Note:

SA_AUSTRIA, SA_POLAND, SA_SWEDEN, SA_DEMARK_DK1, SA_DEMARK_DK2,

SA_VDE0126, SA_FRANCE, SA_HUNGARY, SA_SPAIN, SA_GREECE_CONTINENT.

3.The DRM port is safe for humans to touch. It is recommended to use a safe device for the

DRM controller on the user side.

MODE

RJ45 socket asserted by shorting the following pins

DRM0

Pin5

Pin6

DRM5

Pin1

Pin5

DRM6

Pin2

Pin5

DRM7

Pin3

Pin5

DRM8

Pin4

Pin5

3433
