5.4.6 Connecting to the CAN port for communication with the lithium battery

Step 2: Thread the swivel nut over the “CAN” cable.

Step 4: Remove the filler plug from the cable support sleeve.

Step 6: Thread the “CAN” cable through the cable gland.

Step 7: Insert the RJ45 plug of the network cable into the “CAN” connector on the inverter

until it snaps into place.

Step 8: If no other cables need to be installed, lock the waterproof cover to the inverter

with screws.

Step 9: Screw the swivel nut onto the waterproof cover.

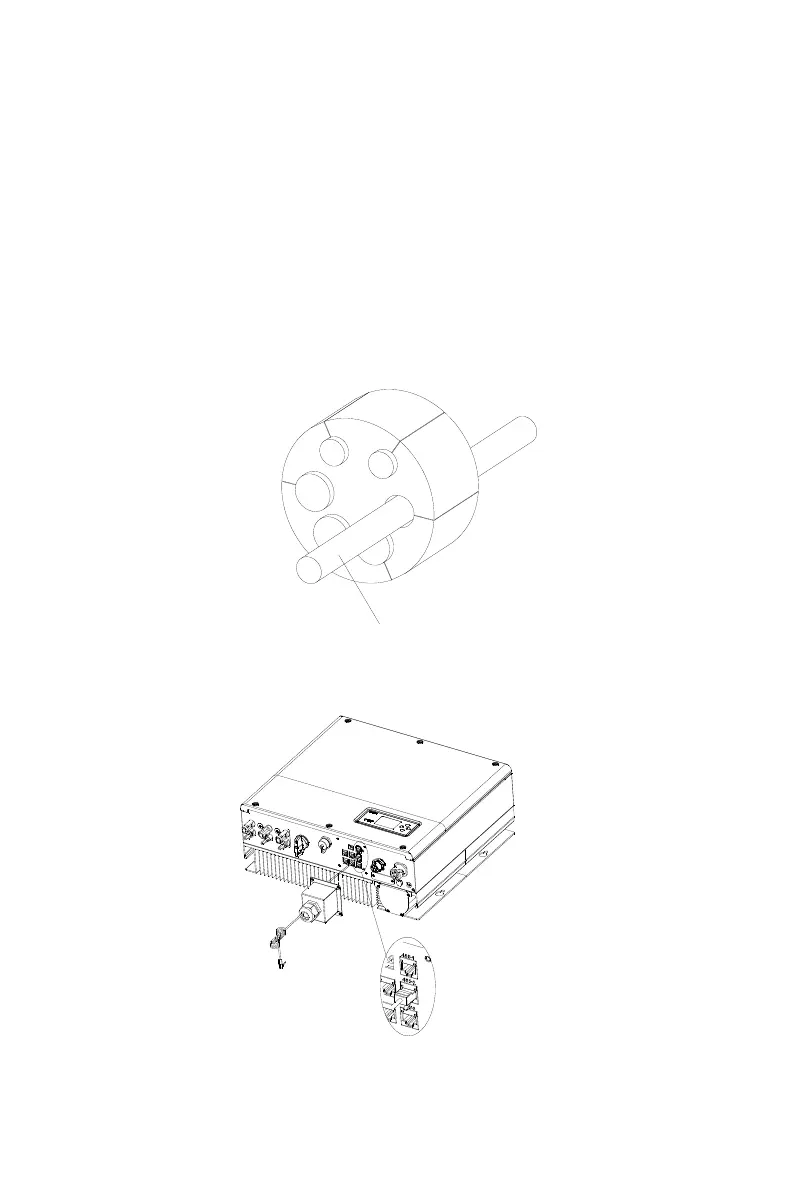

Step 5: Route the “CAN” cable through an opening in the cable support sleeve.

Step 1: Unscrew the swivel nut from the cable gland.

To communicate with the lithium battery via CAN communication, please proceed as

follows to connect to the CAN port:

Step 3: Press the cable support sleeve out of the cable gland.

Note: If you are using a lead-acid battery, you do not need to install this communication

cable.

CAN

Figure 5.35

Figure 5.36

5.4.7 Connecting the RS485 terminal

Step 2: Thread the swivel nut over the “RS485” cable.

Step 1: Unscrew the swivel nut from the cable gland.

The RS485 communication ports are used for communication with the meter. Please

connect to the RS485 port as follows:

Step 6: Thread the “RS485” cable through the cable gland.

Step 3: Press the cable support sleeve out of the cable gland.

Step 7: Insert the RJ45 plug of the network cable into the “485-1“or”485-2”connector

on the inverter until it snaps into place.

Step 5: Route the “RS485” cable through an opening in the cable support sleeve.

Step 8: If no other cables need to be installed, lock the waterproof cover to the inverter

with screws.

Step 9: Screw the swivel nut onto the waterproof cover.

Step 4: Remove the filler plug from the cable support sleeve.

RS485

Figure 5.38

Figure 5.37

485-1, 485-2

3231
