1.3.3 Glossary
AC
Abbreviation for "Alternating Current”
DC
Abbreviation for "Direct Current”
Energy
Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours).
The energy is the power calculated over time. For example, your inverter operates at a
constant power of 4600 W for half an hour and then at a constant power of 2300 W for
another half an hour, it has fed 3450Wh of energy into the power distribution grid within
that hour.
Power
Power is measured in W (watts), kW (kilowatts) or MW (megawatts). Power is an
instantaneous value. It displays the power your inverter is currently feeding into the
power distribution grid.
Power rate
Power rate is the radio of current power feeding into the power distribution grid and the
maximum power of the inverter that can feed into the power distribution grid.
Power factor
Power factor is the ratio of active power or watts to apparent power or volt amps. They
are identical only when current and voltage are in phase then the power factor is 1.0. The
power in an ac circuit is very seldom equal to the direct product of the volts and amperes.
In order to find the power of a single phase ac circuit the product of volts and amperes
must be multiplied by the power factor.
Wireless communication
The external wireless communication technology is a radio technology that allows the
inverter and other communication products to communicate with each other.The
wireless communication device is not standard. Require to order extral if you need it.
Safety 2

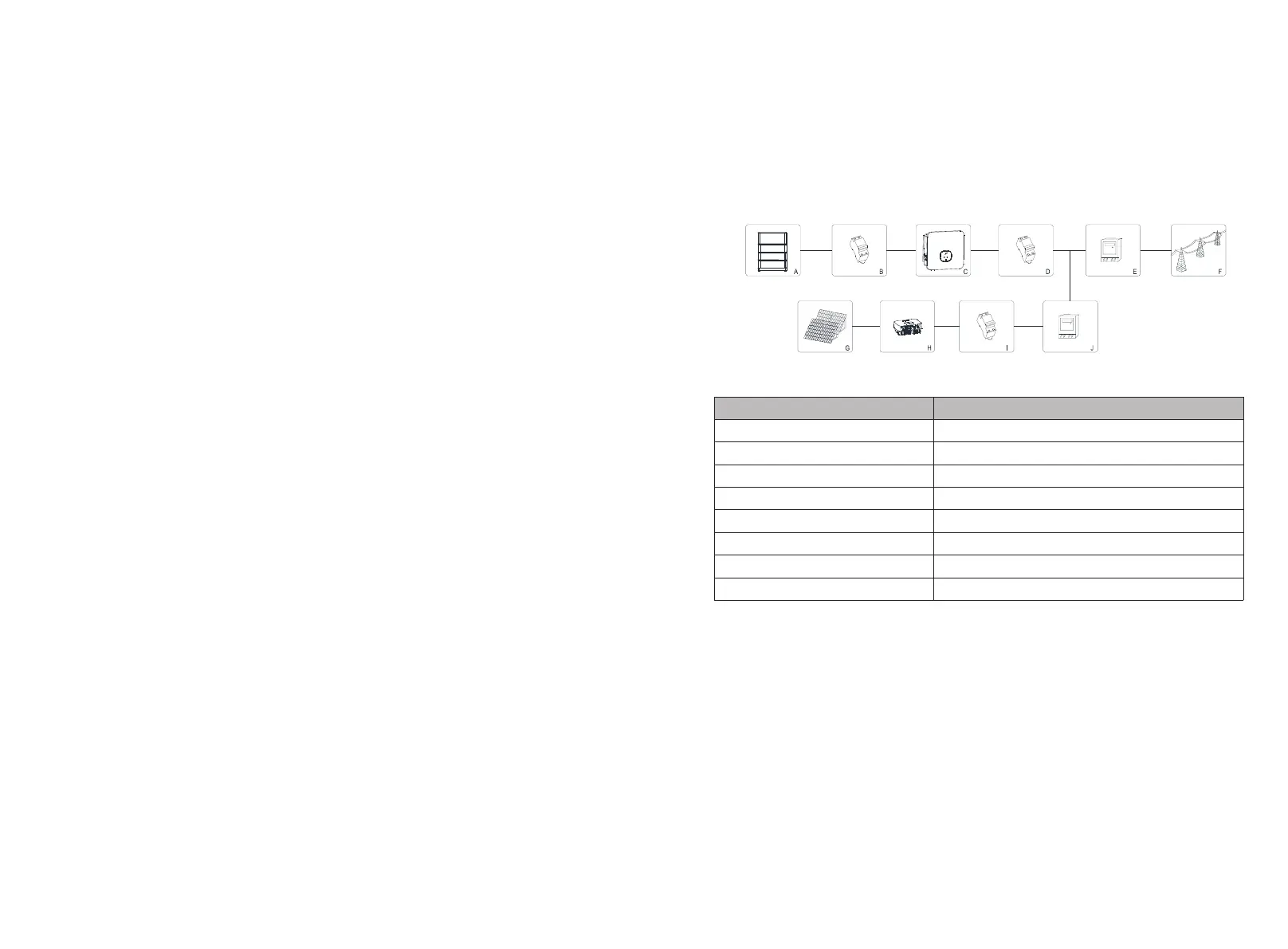

2.1 Product description and features
2.1.1 Product description
Position
Description
A
Battery matched with XA inverter
B
DC circuit breaker
C
MOD XA Inverter
D、I
AC circuit breaker
E、J
Electric energy meter
F
Utility grid
G
Solar panel
H
The other inverter
2.1.2 Product features
The
characteristics
of
the
inverter
are
as
follows:
Ø
Compatible with RS485/Wifi/GPRS/4G communication
Ø
OLED+LED/WIFI+APP display
Ø
Integrated with touch button
Ø
Protection grade IP66
Ø
The weight is only 13kg
Ø
Simple installation
Ø
Integrated
with
energy
storage
and
backup
functions(backup function needs to be
equipped with a backuo box)
Ø
Integrated
with
phase-level
export
limitation
function
Ø
Integrated
with
AC
power
supply
function
Ø
Integrated
with
energy
storage
one-key
detection function
Ø
Integrated
with
AC
power
supply
function
to
realize
the 24h
self-consumption
monitoring
Fig 2.1
3 4
MOD TL3-XA series are the AC Coupled inverter which can store energy into battery with
or without existing grid-tied inverter system. MOD TL3-XA can be used to optimize
selfconsumption、stored in the battery or feed into public grid. It also can provide power
for emergency use during the grid lost by using the energy from the battery.
