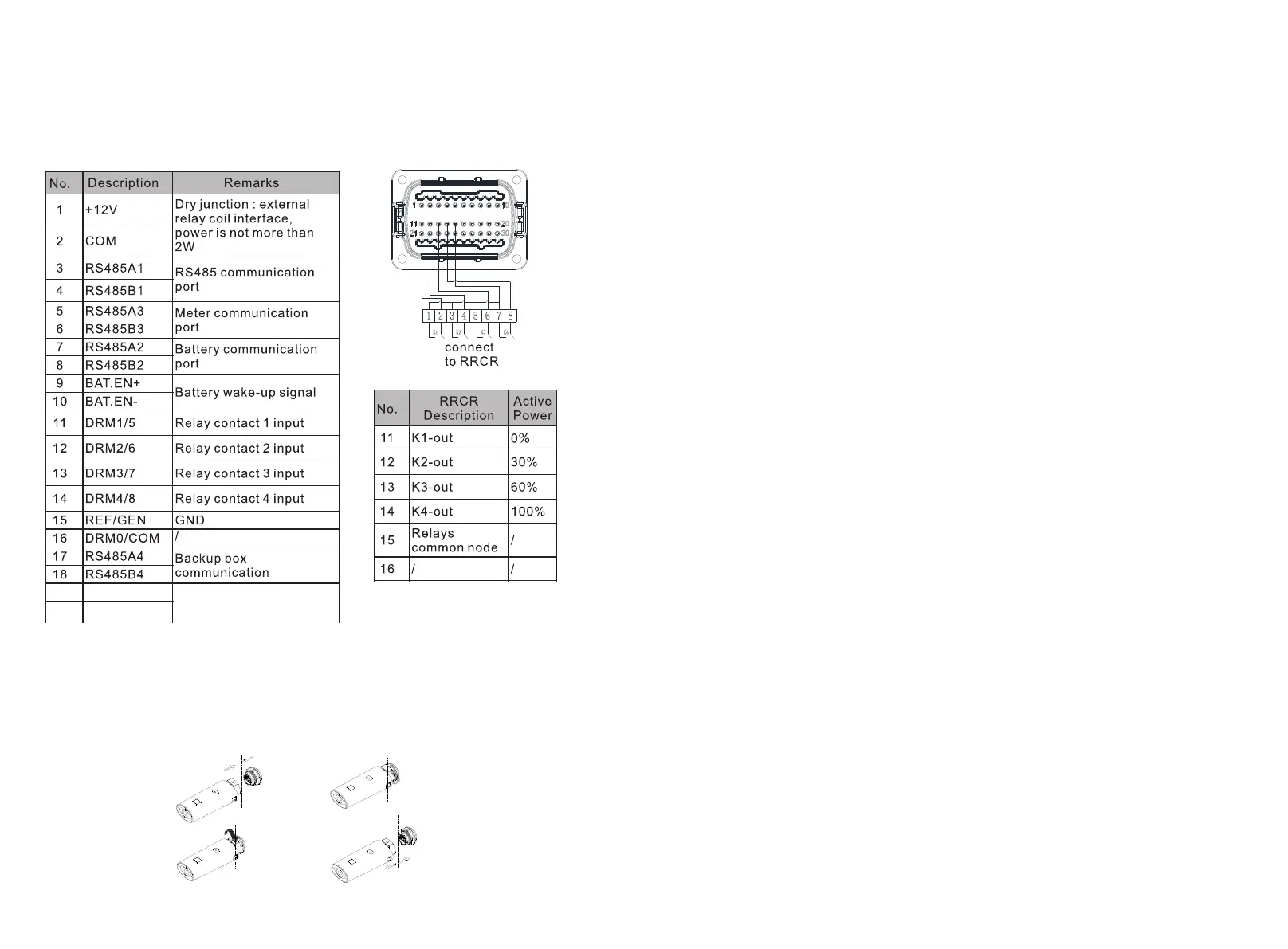

Fig 10.1
Fig 10.2
This series of inverters provide four RS485 ports. You can monitor one or more inverters
via RS485. The other RS485 port is used to connect a smart meter (Export limitation and
self-consumption monitoring).
10.1 COM port
10 Communication and Monitoring
10.2 USB-A
The inverter side
The inverter side
The inverter side
The inverter side
Uninstall
▲up
Install
USB-A port is mainly used to connect monitoring module or firmware update：
We can connect the external optional monitoring modules,such as Shine WIFI-X, Shine
Shine 4G-X, Shine LAN-X, etc. to the USB interface for monitoring.
Steps for installing the monitoring module: Make sure △ is on the front side, then insert
the datalogger and tighten the screws.
21
22
BOX.EN+
BOX.EN-
Backup box identification
signal
Before turning the inverter on, please make sure the Battery input voltage and current
are within the MPPT limits.
Follow the steps below to turn the inverter on:
1.Pull the Battery and AC cable make sure there is no loose or shaking.
2.Make sure the cable polarity is correct and voltage is less than 1100V
3.Switch on the PV/B attery Array and DC isolator next to your inverter, if you can not find
this switch, skip this step.
4.Switch on the Solar AC isolator if the inverter is more than 3 meters away from your
switchboard.
5.Switch on the solar supply main switch in the switch board.
12.1 Start the inverter
12.2 Shut down the inverter
Steps to turn off the inverter:
1. Disconnect the AC circuit breaker to prevent the inverter from starting again;
2. Turn off the BAT input switch of the BAT;
3. Check the operating status of the inverter;
4. Wait until the LED and OLED display are off, indicating that the inverter is turned off.
Start and shut down the 12
inverter
Maintenance and Cleaning 11
11.1 Checking Heat Dissipation
11.2 Cleaning the Inverter
If the inverter regularly reduces its output power due to high temperature, please
improve the heat dissipation condition. Maybe you need to clean the heat sink.
If the inverter is dirty, turn-off the AC breaker and DC switch ,waiting the inverter shut
down ,then clean the enclosure lid, the display, and the LEDs using only a wet cloth. Do
not use any cleaning agents (e.g. solvents or abrasives).
34
33
