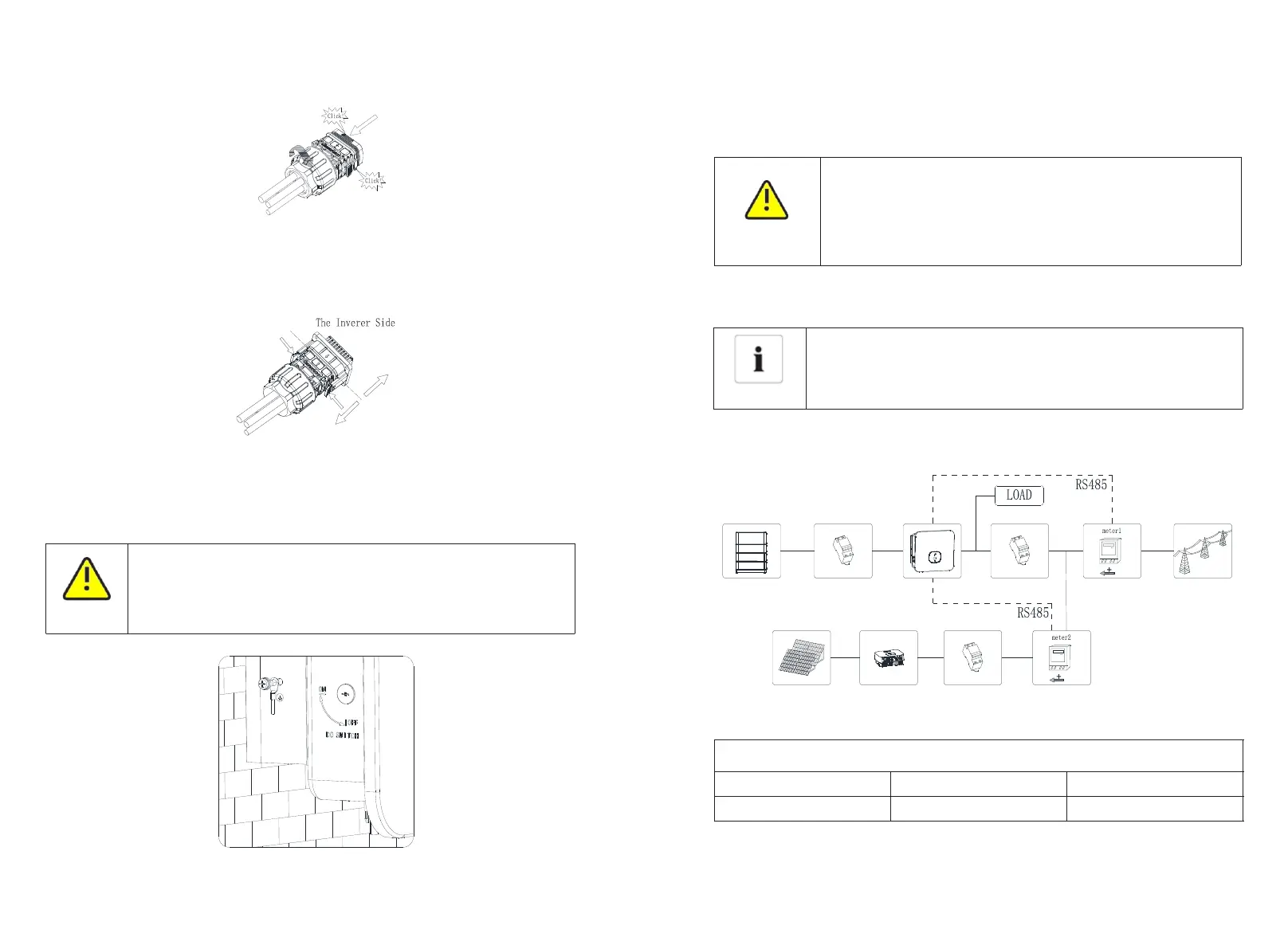

Fig 6.8
Fig 6.9
3.Connect the client to the inverter plug until both are tightly locked on the inverter.
Remove the signal connector
1.Press down the fastener and pull it out of the inverter.
Fig 6.10
6.5 Grounding the inverter
The inverter must be connected to the AC grounding conductor of the power distribution
grid via the ground terminal (PE) .
WARNING
If an Earth Fault Alarm occurs, the fault code “Error 303,NE abnormal”
will be displayed on the inverter screen while the LED indicator red will
light up. (Applicable to inverters with graphical display only)
According to the relevant provisions of IEC 61643-32 "Connecting to photovoltaic
devices surge protectors - selection and use of guidelines", whether for household or
commercial photovoltaic power plants, it is necessary to ensure the implementation of
lightning protection measures for photovoltaic systems:
The lightning protection measures for photovoltaic systems shall be
carried out in accordance with the corresponding national standards
and IEC standards. Otherwise, photovoltaic devices such as
components, inverters and power distribution facilities may be
damaged by lightning.
In this case, the company does not carry out warranty and assumes
any responsibility.
Fig 6.11
6.6 Active power control with smart meter or ripple control
signal receiver
Information
Ø The position of export limitation Meter must between the Inverter
& Load and gird.
Ø The wiring of meter, please refer to the manual of smart meter in
details.
This series inverter has integrated export limitation functionality. To use this function,
you can connect the Growatt smart meter. For the detailed information, please contact
with Growatt.
Smart meters are classified into the following models
No.
Meter Brand
Meter Pin N0.
1
Growatt
A,RS485A/B,RS485B
WARNING
Note:
1.MOD 3-10KTL3-XA must connect Growatt Meter.
2.AC Couple System need to change inverter's system mode to "System retrofit".
20
19
