DRM Socket Pin NO.
Description
Connected to RRCR
11
Relay contact 1 input
K1 – Relay 1 output
12
Relay contact 2 input
K2 – Relay 2 output
13
Relay contact 3 input
K3 – Relay 3 output
14
Relay contact 4 input
K4 – Relay 4 output
15
GND
Relay's common node
8.2.2.2 The inverter is preconfigured to the following RRCR power levels:
DRM Socket
Pin 11
DRM Socket
Pin 12
DRM Socket
Pin 13
DRM Socket
Pin 14
Active
power
Cos(φ
)
Shorting
with Pin 15
0%
1
Shorting
with Pin 15
30%
1
Shorting
with Pin 15
60%
1
Shorting
with Pin 15
100%
1
Active power control and reactive power control are enabled separately.

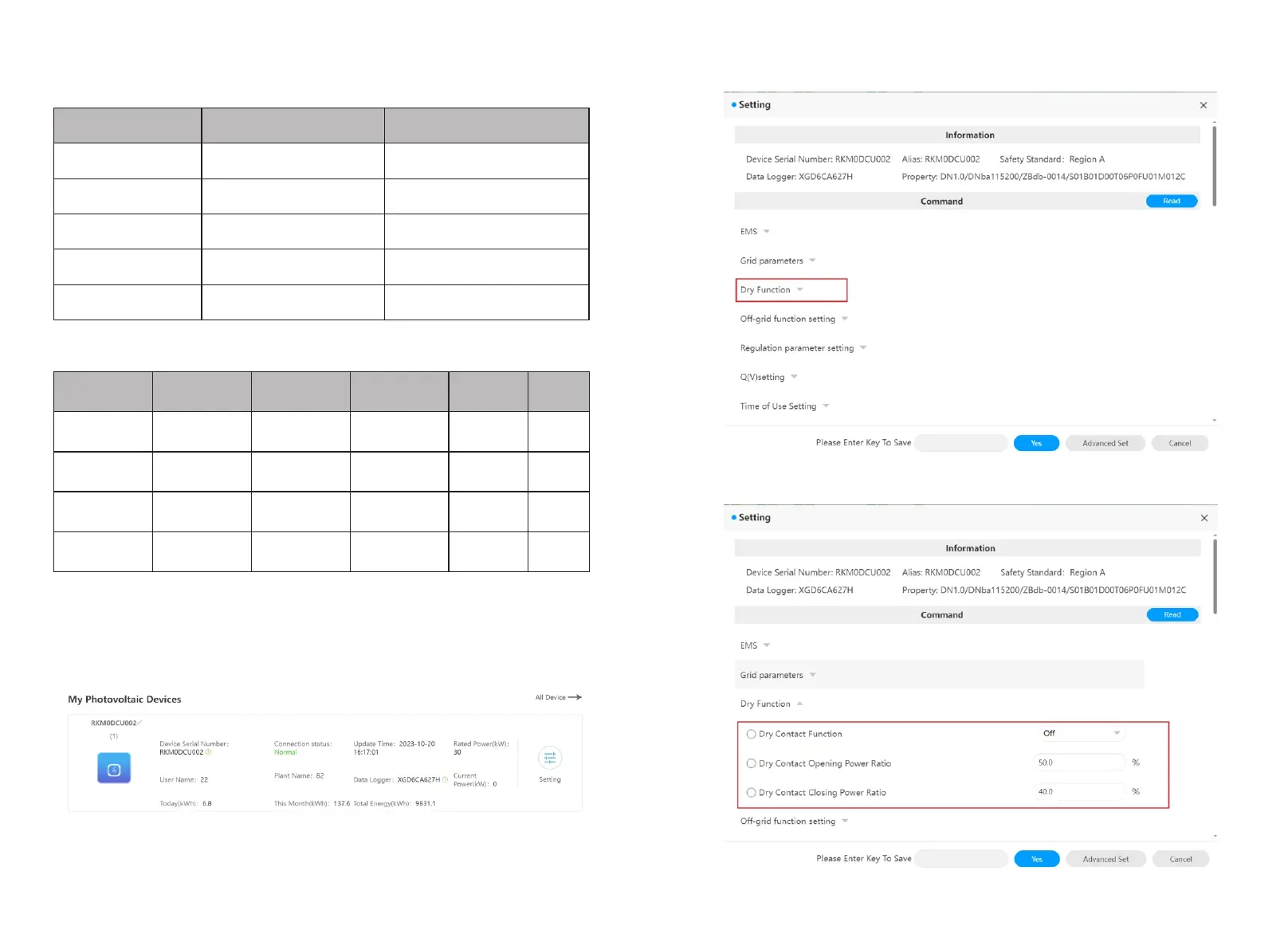

8.3 Setting the dry contact
8.3.1 On the Server webpage
Step 1. Log in with your Server account
Step 2. Setting > Dry Function > Dry Contact Function > On > Yes
Table 8-3 Power regulation description
Table 8-2 RRCR wiring description
6059
Step 3. Set the dry contact opening/closing power
