2.4.4 Whole-home backup
Ÿ When the maximum power output capacity of the system in the off-
grid state surpasses the total power demand of the electrical
appliances, you can configure the system for a whole-home
backup setup. In this case, you can connect all loads to the LOAD
port of the SYN BOX.
NOTICE
Ÿ The MID TL3-XH inverter offers three operating modes and 9
configurable time segments, enabling to operate the inverter in a
specific mode during different periods. For details, please refer to
Section 8.4 Setting the operating modes.
Ÿ In areas with high electricity prices or areas where no grid
subsidies are available, it is recommended to set the Load First
mode.
Ÿ In areas with time-of-use electricity rates (peak/off-peak rates), it
is recommended to configure a combination of modes. During
peak-rate periods, set the inverter to the Grid First mode, and
during off-peak-rate periods, set it to the Battery First mode.
Ÿ If the local power grid is unstable, it is advisable to install a SYN
BOX to enable off-grid operation, ensuring critical loads are
backed up during power outages.
NOTICE
2.5 Operating mode
10
9

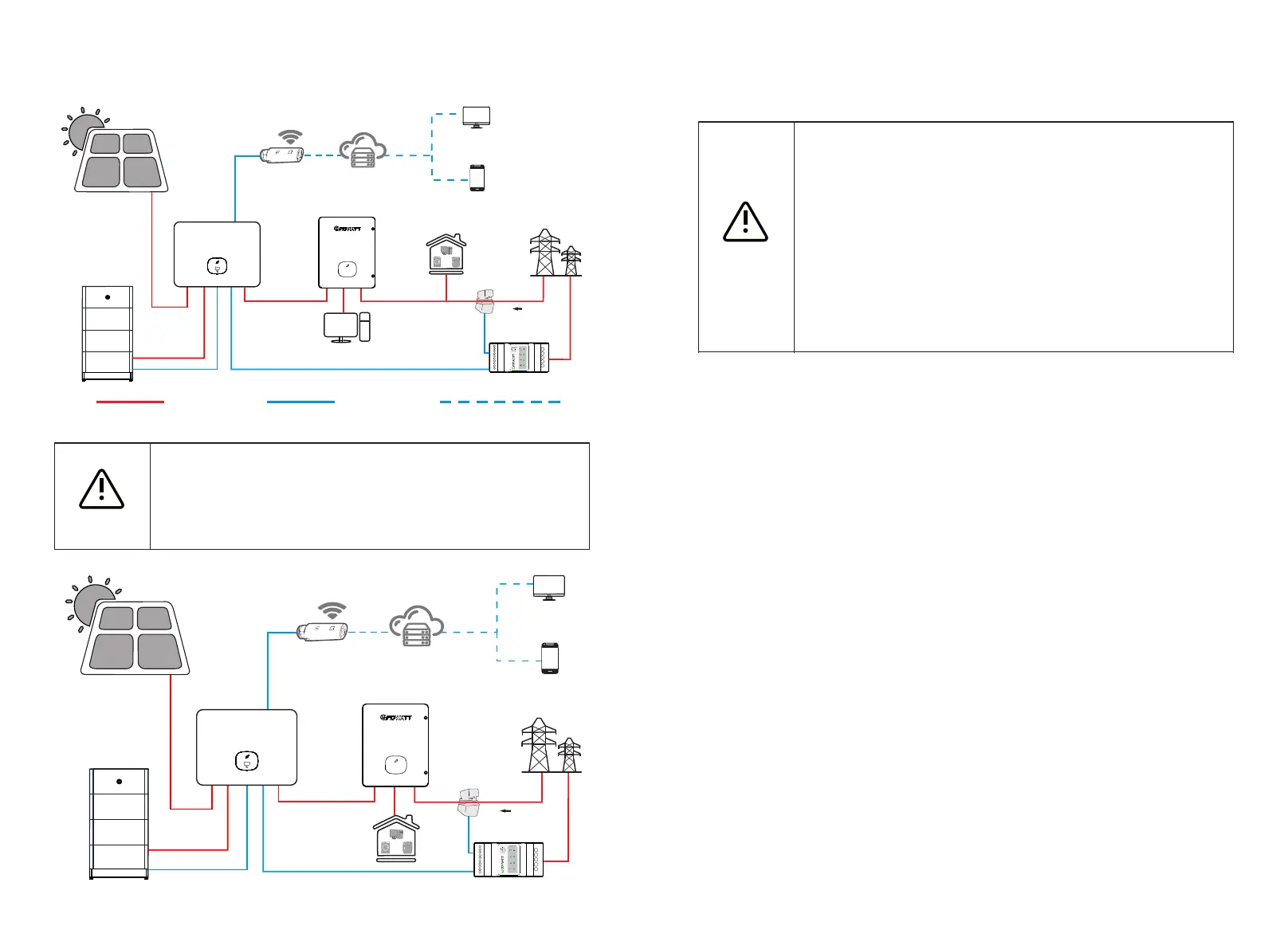

Figure 2-5 Partial backup system
Figure 2-6 Whole-home backup system
ShineServer
ShinePhone
Cloud Server
Datalogger
LOAD
Grid
CT(L K)
INV
Battery
Meter
PV panel
Power cable Signal cable Wireless communication
Backup LOAD
SYN
ShineServer
ShinePhone
Cloud Server
Datalogger
LOAD
Grid
CT(L K)
INV
Battery
Meter
PV panel
SYN
2.5.1 Load First mode
Priority: Load > Battery > Grid. When the solar power is sufficient, it is prioritized
towards supplying the loads. The surplus energy is used to charge the battery and then
export to the grid.
When the solar power is insufficient or the PV panels are not generating power, the
battery will discharge to support the loads. If the battery discharges to the user-defined
discharge cutoff SOC, it will stop discharging and the system will draw power from the
grid to support the loads.
If the “charge from grid” function is enabled in compliance with local regulations, the
battery charges at the maximum power (unless limited by the user-defined battery
charging power). If the PV energy is insufficient, it will draw energy from the grid.
2.5.2 Battery First mode
If the “charge from grid” function is enabled in compliance with local regulations, the
battery charges at the maximum power (unless limited by the user-defined battery
charging power). If the PV energy is insufficient, it will draw energy from the grid.
Priority: Battery > Load > Grid. When the solar power is sufficient, it is prioritized
towards charging the battery. The surplus energy goes to supply the loads and then
export to the grid.
When the solar power is insufficient or the PV panels are not generating power, all solar
power is used to charge the battery and energy drawn from the grid will support the
loads.
2.5.3 Gird First mode
Priority: Load > Grid > Battery. When the solar power is sufficient, the inverter operates
at its maximum output power to support the loads and export to the grid. The surplus
solar power will charge the battery. If the solar power is insufficient, the battery will
discharge.
