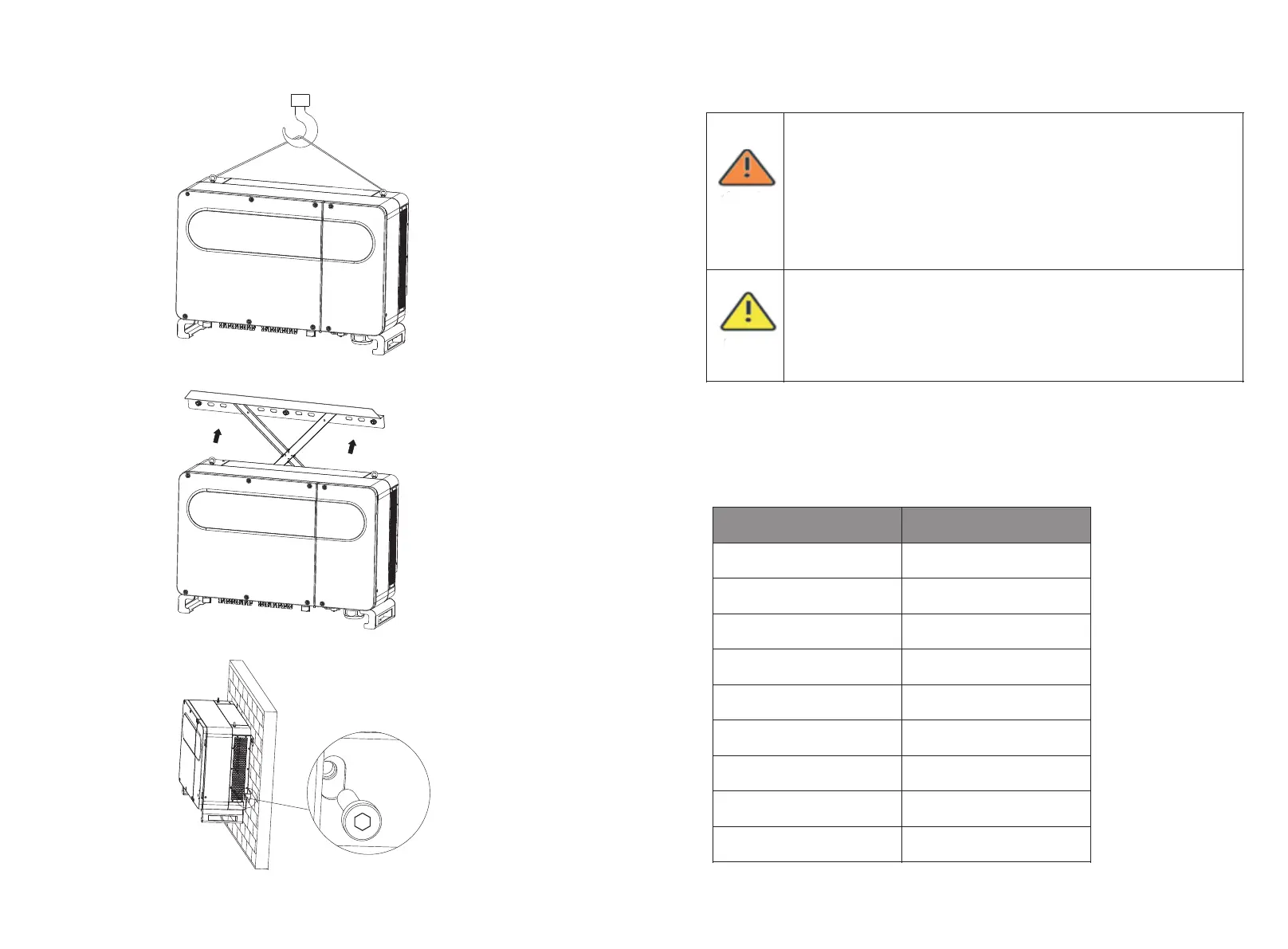

Fig 5.12
Fig 5.13
Fig 5.14
Connecting Cable 6
6.1 Connection on AC side
•
"OFF” also disconnect AC switch, otherwise the high voltage from
inverter may cause life risk.
•Only trained authorized electrical technician can do the electric
connection also please follow the connection procedures in this manual
along with local country's regulations.
•High voltage may cause electric shocks and serious injury please do not
touch the inverter.
•Please do not store inverter in area with flammable and explosive
material.
Before electrical connection, please ensure the inverter DC switch is at
•
share with other inverters.
•It is forbidden to add load between inverter and breaker.
•If the cable is thick, after tightening the cable do not shake it and ensure
the cable is well-connected and then start the inverter. Loose connection
may cause overheat.
Each inverter must install one AC breaker, AC breaker is forbidden to
Preparation before connection:
1>Disconnect inverter DC switch and AC breaker or switch.
2>When you lock the AC cable's screw the torque force should be 9N•m.
3>Measure the grid voltage and frequency, please refer to chapter 10.
AC breaker specification：
Inverter model
Breaker model
MAX 50KTL3 LV
100A/400Vac
MAX 60KTL3 LV
125A/400Vac
MAX 70KTL3 LV
160A/400Vac
MAX 80KTL3 LV
160A/400Vac
MAX 60KTL3 MV
100A/500Vac
MAX 70KTL3 MV
125A/500Vac
MAX 80KTL3 MV
160A/500Vac
MAX 90KTL3 MV
160A/500Vac
MAX 100KTL3 MV
160A/500Vac
15
16
DANGER
WARNING
