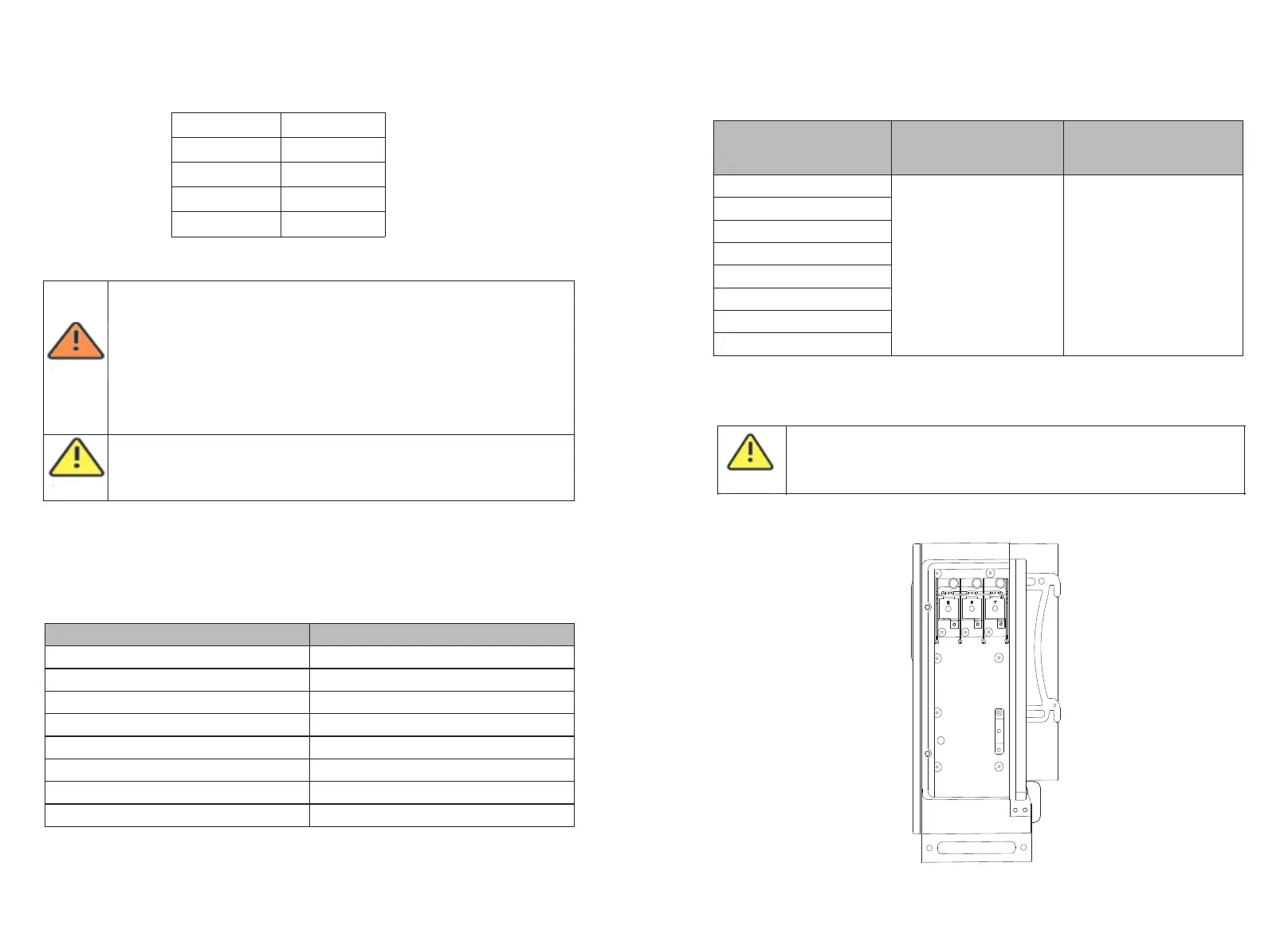

6 Connecting Cable
6.1 Connection on AC side
•Before electrical connection, please ensure the inverter DC switch is
at“OFF” ,and disconnect AC switch, otherwise the high voltage from
inverter may cause life risk.
•Only trained authorized electrical technician can do the electric connection
also please follow the connection procedures in this manual along with local
country's regulations.
•High voltage may cause electric shocks and serious injury please do not
touch the inverter.
•Please do not store inverter in area with flammable and explosive material.
•Each inverter must install one AC breaker ,and one AC breaker is forbidden
to share with other inverters.
•It is forbidden to add load between inverter and breaker.
Preparation before connection:
1>Disconnect inverter DC switch and AC breaker or switch.
2>When you lock the AC cable's screw, the torque force should be 25kgf·cm
When you lock the cover screw, the torque force should be 20kgf·cm.
3>Measure the grid voltage and frequency, please refer to chapter 10.
AC breaker specification：
17
18
DANGER
WARNING
Decisive Voltage Class (DVC) indicated for ports
Port Name
Class
AC
DC
DRMS
RS485&USB
C
C
A
A
Inverter model
Breaker model
MAX 175KTL3-X HV
200/250A 1000Vac
MAX 185KTL3-X HV
200/250A 1000Vac
MAX 196KTL3-X HV
200/250A 1000Vac
MAX 216KTL3-X HV
200/250A 1000Vac
MAX 225KTL3-X HV
250/320A 1000Vac
MAX 230KTL3-X HV
250/320A 1000Vac
MAX 250KTL3-X HV
250/320A 1000Vac
MAX 253KTL3-X HV
250/320A 1000Vac
Notice:The cable must be unbroken. When using aluminum alloy cables, please use
copper-aluminum transition terminals.
AC side connection steps:
•If the cable is thick, after tightening the cable do not shake it and ensure
the cable is well-connected and then start the inverter. Loose connection
may cause overheat.
1>Following drawing shows inverter's AC terminal, R, S, T are three live lines
Notice: The screw is a matching M12 screw.
Fig 6.1
Cable specification:
WARNING
Inverter Model
Copper wire cross
sectional（mm2）
Copper wire
recommendation（mm2）
MAX 175KTL3-X HV
70-95
70
MAX 185KTL3-X HV
MAX 196KTL3-X HV
MAX 216KTL3-X HV
MAX 225KTL3-X HV
MAX 230KTL3-X HV
MAX 250KTL3-X HV
MAX 253KTL3-X HV
