Fig 5.10

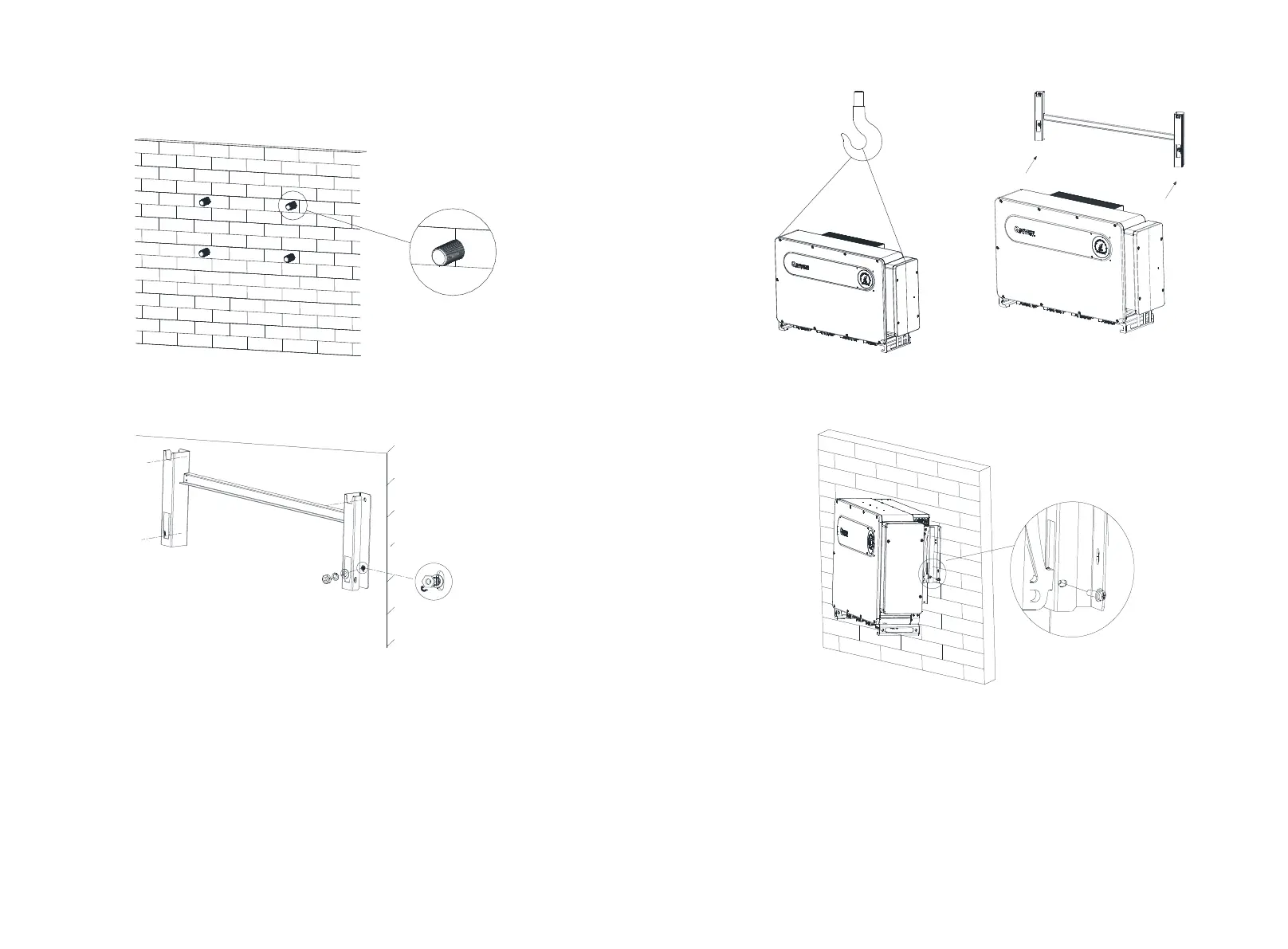

1>Use the wall mount plate as a template drill holes on the wall and put in expansion
bolts.
2>Follow the following drawing put the bolt to install the wall mount plate on the wall.
Fig 5.11
Notice: Do not install inverter unless you have confirmed the wall mount plate has been
firmly installed on the wall.
Notice：Expansion bolt should be installed on solid walls with at least 100mm thickness.
5.5 Installing The Inverter
After the wall mount bracket has been firmly installed on the wall , put the inverter on
that plate.
1>Tie the rope(must meet the weight requirement of the inverter) to the machine
supports to lift the inverter up, just as following Figure.
2>Before hanging the inverter on the wall mount bracket use screws to fix the inverter
and please keep the inverter balance.
3>Check the inverter if it is firm enough and lock all the screws.
图 5.12
图 5.13
图 5.14
15
16
